Aeon Crossland X4 400
2012ATV

Aeon Crossland X4 400

Key specifications

Engine
346 cc
Power
20 HP
Torque
30 Nm
Weight
236 kg
Fuel type
petrol
Fuel capacity
3.7 L
Transmission
Automatic
Seat height
34 mm
Front brakes
Double disc
Rear brakes
Expanding brake (drum brake)

Overview

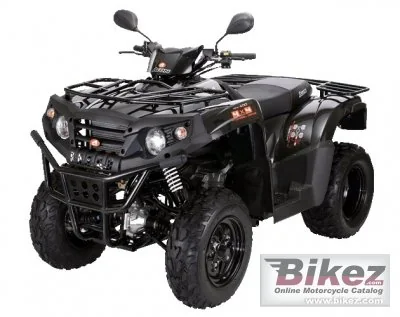

Introducing the 2012 Aeon Crossland X4 400, a versatile ATV that captures the essence of adventure and rugged exploration. With a blend of practicality and performance, this model stands as a testament to Aeon’s commitment to engineering quality off-road vehicles. Designed for both the casual rider and the enthusiast, the Crossland X4 400 offers a unique combination of comfort and capability, making it an excellent choice for outdoor escapades and trail riding alike. At the heart of the Crossland X4 400 lies a robust single-cylinder, four-stroke engine with a displacement of 346 ccm. Producing a commendable 20.12 horsepower at 8500 RPM and 30 Nm of torque at 6500 RPM, this ATV delivers a spirited performance that’s perfect for navigating challenging terrains. The liquid-cooled engine is coupled with an automatic gearbox and a centrifugal clutch, providing seamless acceleration and user-friendly operation. Riders will appreciate the responsive handling and stability offered by the double A-arm front suspension and swingarm rear suspension, which together provide excellent control and comfort over varied landscapes, with front and rear travel of 178 mm and 165 mm respectively. The 2012 Aeon Crossland X4 400 is packed with features that enhance its usability and comfort. With a generous fuel capacity of 14 liters, riders can confidently embark on longer journeys without the frequent need for refueling. The sturdy steel frame ensures durability, while the double disc front brakes and expanding drum brake provide reliable stopping power. The ATV's design accommodates two riders, making it perfect for shared adventures, and its ground clearance of 200 mm ensures you can tackle obstacles with ease. Available in striking color options of red and black, the Crossland X4 400 is not just functional but also stylish. **

Pros

  • User-Friendly Performance: The automatic transmission and centrifugal clutch make this ATV easy to ride for both beginners and experienced riders.
  • Comfort and Stability: With its well-designed suspension system, the Crossland X4 400 offers a smooth ride, even on rugged trails.
  • Generous Fuel Capacity: The 14-liter fuel tank supports extended rides, allowing adventurous outings without constant refueling interruptions.

Cons

  • Weight Consideration: At 236 kg (520.3 lbs), it may feel heavy for some riders, particularly in tight maneuvers or when navigating challenging terrain.
  • Limited Storage: The focus on passenger capacity may limit available storage for gear, which can be a drawback for longer trips.
  • Basic Braking System: While effective, the drum brakes at the rear may not provide the same level of stopping power as more advanced systems, particularly in demanding conditions.

Technical details

Source specification data

Make
Aeon
Model
Crossland X4 400
Category
ATV
Starter
Electric
Comments
2 seats.
Color Options
Red, black
Carrying Capacity
Under
-seat case with safety lock,
Front
and rear racks.
Power
20.12 HP (14.7 kW)) @ 8500 RPM
Clutch
Centrifugal clutch
Torque
30.00 Nm (3.1 kgf-m or 22.1 ft.lbs) @ 6500 RPM
Gearbox
Automatic
Driveline
CVT, 4WD with reverse
Fuel System
Carburettor
Bore X Stroke
82.0 x 65.6 mm (3.2 x 2.6 inches)
Compression
10.6:1
Displacement
346.00 ccm (21.11 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, four-stroke
Lubrication System
Wet sump
Transmission Type Final Drive
Shaft drive (cardan)
Dry Weight
236.0 kg (520.3 pounds)
Seat Height
850 mm (33.5 inches) If adjustable, lowest setting.
Fuel Capacity
14.00 litres (3.70 gallons)
Overall Width
1,080 mm (42.5 inches)
Overall Height
1,150 mm (45.3 inches)
Overall Length
1,940 mm (76.4 inches)
Ground Clearance
200 mm (7.9 inches)
Power Weight Ratio
0.0853 HP/kg
Weight Incl Oil Gas Etc
250.0 kg (551.2 pounds)
Rear Tyre
23/10-12
Frame Type
Steel
Front Tyre
23/7-12
Rear Brakes
Expanding brake (drum brake)
Front Brakes
Double disc
Rear Suspension
Swing Arm
Front Suspension
Double A-Arm
Rear Wheel Travel
165 mm (6.5 inches)
Front Wheel Travel
178 mm (7.0 inches)

Available colors

Redblack
