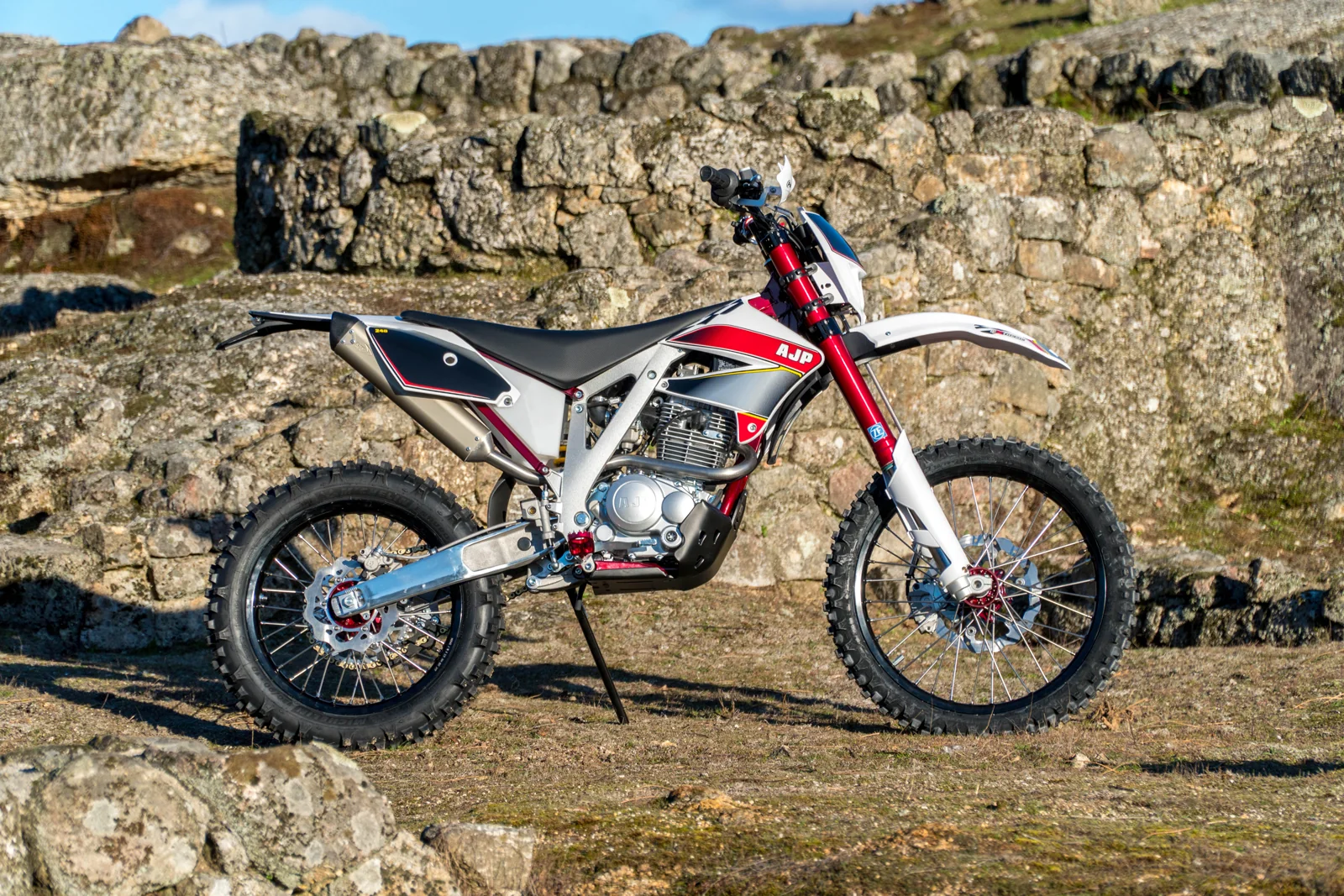

AJP PR4 Extreme 240
2020Off-road

AJP PR4 Extreme 240

Key specifications

Engine
233 cc
Power
20 HP
Torque
18 Nm
Fuel type
petrol
Fuel capacity
1.9 L
Transmission
5-speed
Seat height
36 mm
Front brakes
Single disc. 2-piston calipers
Rear brakes
Single disc

Overview

Introducing the 2020 AJP PR4 Extreme 240, a motorcycle that embodies the spirit of adventure within the enduro-offroad category. With a robust design and an unyielding commitment to performance, the PR4 Extreme 240 is engineered for riders who demand agility and resilience on the trails. Lightweight yet sturdy, this bike is perfect for both seasoned riders and those looking to elevate their off-road experience. AJP has carved a niche in the competitive world of enduro motorcycles, and the PR4 Extreme 240 is a testament to their dedication to quality and innovation. At the heart of the AJP PR4 Extreme 240 is its 233cc single-cylinder, four-stroke engine, delivering a lively 20 horsepower at 8,000 RPM. Riders will appreciate the torque output of 18 Nm at 7,000 RPM, providing smooth acceleration and the ability to tackle steep inclines and rugged terrains with ease. The 5-speed gearbox ensures optimal gear ratios for various trail conditions, while the oil and air cooling system maintains engine performance even during extended rides. The lightweight chassis, weighing in at just 116 kg (255.7 lbs), complements the engine's power, resulting in an exhilarating riding experience characterized by responsive handling and nimble maneuverability. The 2020 PR4 Extreme 240 is loaded with features designed to enhance both performance and rider comfort. The composite aluminum-steel double spar frame offers superior strength without compromising weight, while the fully adjustable ZF Sachs front and rear suspension systems—boasting an impressive 300 mm of travel—smooth out the bumps and humps on any trail. The braking system, featuring a 270 mm front disc and a 220 mm rear disc, ensures confident stopping power in various conditions. Additional features such as an electric starter and a stylish color palette of white, red, and black make this motorcycle both practical and eye-catching. **

Pros

  • Lightweight & Agile: At 116 kg, the PR4 Extreme 240 is designed for easy maneuverability on challenging terrains.
  • Adjustable Suspension: The fully adjustable ZF Sachs suspension allows riders to tailor their setup for maximum comfort and performance.
  • Robust Engine Performance: The powerful yet efficient engine delivers excellent torque and horsepower, providing a thrilling ride.

Cons

  • Limited Fuel Capacity: With a 7-liter fuel tank, longer rides may require more frequent refueling stops.
  • Seat Height: At 920 mm, the seat height may be a challenge for shorter riders, particularly when navigating technical trails.
  • Niche Market Appeal: As a specialized enduro bike, it may not cater to riders looking for a versatile street-legal option.

Technical details

Source specification data

Make
AJP
Model
PR4 Extreme 240
Category
Enduro-offroad
Starter
Electric
Color Options
White/red/black
Power
20.00 HP (14.6 kW)) @ 8000 RPM
Clutch
Oil bath, multidisc
Torque
18.00 Nm (1.8 kgf-m or 13.3 ft.lbs) @ 7000 RPM
Gearbox
5-speed
Fuel System
Carburettor. 30 mm
Bore X Stroke
69.0 x 62.5 mm (2.7 x 2.5 inches)
Displacement
233.00 ccm (14.22 cubic inches)
Cooling System
Oil & air
Engine Details
Single cylinder, four-stroke
Valves Per Cylinder
2
Transmission Type Final Drive
Chain
Seat Height
920 mm (36.2 inches) If adjustable, lowest setting.
Fuel Capacity
7.00 litres (1.85 gallons)
Ground Clearance
365 mm (14.4 inches)
Weight Incl Oil Gas Etc
116.0 kg (255.7 pounds)
Rear Tyre
120/80-18
Frame Type
Composite aluminum/steel, double spar frame.
Front Tyre
90/90-21
Rear Brakes
Single disc
Front Brakes
Single disc. 2-piston calipers
Rear Suspension
ZF Sachs with res. fully adjustable
Front Suspension
ZF Sachs Ø48mm fully adjustable
Rear Wheel Travel
300 mm (11.8 inches)
Front Wheel Travel
300 mm (11.8 inches)
Rear Brakes Diameter
220 mm (8.7 inches)
Front Brakes Diameter
270 mm (10.6 inches)

Available colors

White/red/black
