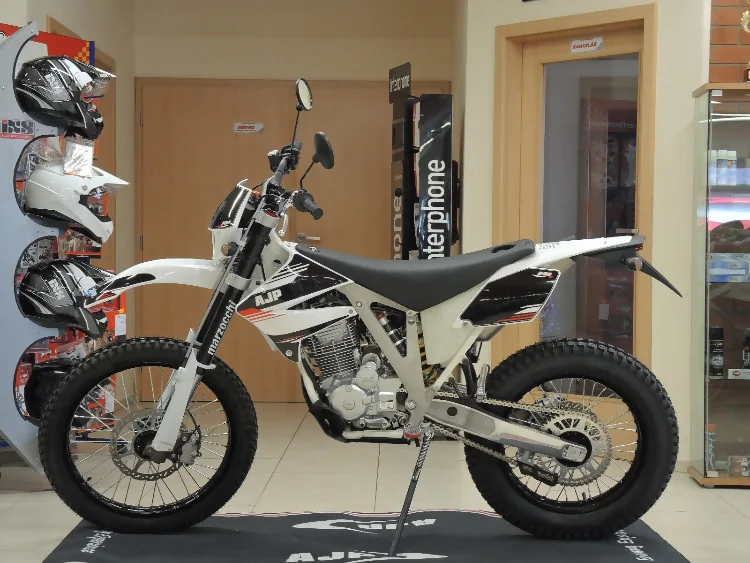

AJP PR4 Ultrapassar 240
2018Off-road

AJP PR4 Ultrapassar 240

Key specifications

Engine
233 cc
Power
20 HP
Torque
18 Nm
Fuel type
petrol
Fuel capacity
1.9 L
Transmission
5-speed
Seat height
36 mm
Front brakes
Single disc. 2-piston calipers
Rear brakes
Single disc

Overview

Introducing the 2018 AJP PR4 Ultrapassar 240, a remarkable contender in the enduro-offroad segment that strikes a perfect balance between performance, agility, and rider comfort. Designed for those who thrive on the thrill of exploration, the PR4 Ultrapassar 240 offers an exciting combination of rugged capabilities and lightweight maneuverability, making it an ideal choice for both seasoned riders and adventurous newcomers. With an eye-catching color palette of white, red, and black, this motorcycle not only performs exceptionally well but also turns heads wherever it goes. At the heart of the PR4 Ultrapassar 240 lies a robust 233cc single-cylinder, four-stroke engine that delivers a spirited 20 horsepower at 8000 RPM. This power plant boasts a torque of 18 Nm at 7000 RPM, providing a responsive and exhilarating ride whether you're navigating tight trails or tackling steep inclines. The 5-speed gearbox ensures smooth shifting, allowing riders to harness the engine's power effectively. Enhanced by a clever oil and air cooling system, this motorcycle thrives in demanding conditions, ensuring that the engine remains cool even during prolonged rides. The lightweight chassis, tipping the scales at just 115 kg (253.5 pounds), further amplifies its nimbleness, giving riders the confidence to conquer diverse terrains. The AJP PR4 Ultrapassar 240 is packed with technology and features that enhance both performance and rider experience. Its advanced suspension system, featuring a fully adjustable Marzocchi front fork and ZF Sachs progressive rear system, offers 260 mm and 300 mm of travel, respectively, soaking up bumps and providing a plush ride. The braking system, equipped with powerful single discs and 2-piston calipers, ensures reliable stopping power, while the 365 mm ground clearance allows for easy navigation over obstacles. Additional conveniences, such as an electric starter, make firing up the engine a breeze, letting riders focus on the thrill of the ride instead of the hassle of starting. **

Pros

  • Lightweight Design: At only 115 kg (253.5 pounds), the bike is easy to handle, contributing to enhanced maneuverability on challenging trails.
  • Powerful Engine: The 233cc engine delivers an impressive balance of power and torque, ensuring a thrilling ride without compromising on efficiency.
  • Advanced Suspension: With adjustable suspension that provides excellent travel, the bike excels in absorbing shocks, making it a joy to ride over rough terrain.

Cons

  • Seat Height: With a seat height of 920 mm (36.2 inches), it may be challenging for shorter riders to comfortably manage the bike.
  • Limited Fuel Capacity: The 7-liter fuel tank may require more frequent refueling during long rides or extended off-road adventures.
  • Niche Market: As a specialized enduro motorcycle, it may not appeal to riders looking for a versatile bike suitable for both on-road and off-road use.

Technical details

Source specification data

Make
AJP
Model
PR4 Ultrapassar 240
Category
Enduro-offroad
Starter
Electric
Color Options
White/red/black
Power
20.00 HP (14.6 kW)) @ 8000 RPM
Clutch
Oil bath, multidisc
Torque
18.00 Nm (1.8 kgf-m or 13.3 ft.lbs) @ 7000 RPM
Gearbox
5-speed
Fuel System
Carburettor. 30 mm
Bore X Stroke
69.0 x 62.5 mm (2.7 x 2.5 inches)
Displacement
233.00 ccm (14.22 cubic inches)
Cooling System
Oil & air
Engine Details
Single cylinder, four-stroke
Valves Per Cylinder
2
Transmission Type Final Drive
Chain
Seat Height
920 mm (36.2 inches) If adjustable, lowest setting.
Fuel Capacity
7.00 litres (1.85 gallons)
Ground Clearance
365 mm (14.4 inches)
Weight Incl Oil Gas Etc
115.0 kg (253.5 pounds)
Rear Tyre
120/80-18
Frame Type
Composite aluminum/steel, double spar frame.
Front Tyre
90/90-21
Rear Brakes
Single disc
Front Brakes
Single disc. 2-piston calipers
Rear Suspension
ZF Sachs progressive system
Front Suspension
Marzocchi Ø40mm fully adjustable
Rear Wheel Travel
300 mm (11.8 inches)
Front Wheel Travel
260 mm (10.2 inches)
Rear Brakes Diameter
220 mm (8.7 inches)
Front Brakes Diameter
270 mm (10.6 inches)

Available colors

White/red/black
