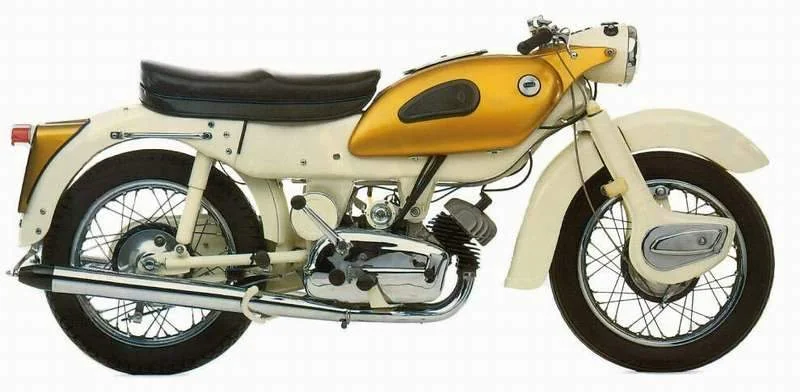

Ariel Arrow Super Sport 250
1961Allround

Ariel Arrow Super Sport 250

Key specifications

Engine
247 cc
Power
20 HP
Weight
132 kg
Fuel type
petrol
Fuel capacity
3.6 L
Transmission
4-speed
Seat height
30 mm
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)

Overview

### Introducing the 1961 Ariel Arrow Super Sport 250 The 1961 Ariel Arrow Super Sport 250 is a striking embodiment of British engineering and design that captures the spirit of the early 1960s. Positioned as an allround motorcycle, the Arrow Super Sport is appealing to both novice riders and seasoned enthusiasts looking for a nimble, lightweight bike with a classic flair. With its sleek lines and distinctive color options of white and gold, it stands out not just as a mode of transportation, but as a collectible piece of history that evokes nostalgia for a bygone era of motorcycling. ### Engine Performance and Riding Characteristics At the heart of the Arrow Super Sport lies a spirited 247cc twin-cylinder, two-stroke engine, delivering a respectable 20 horsepower at 6,500 RPM. The bike’s compact engine design, paired with a compression ratio of 10.0:1, allows it to reach a top speed of 126 km/h (78.3 mph), making it a lively performer on both country roads and city streets. The 4-speed gearbox provides smooth transitions, ensuring that riders can harness the engine's full potential with ease. With a fuel consumption of just 3.36 litres per 100 km (70.01 mpg), the Arrow is not only fun to ride but also economical, making it a fantastic choice for daily riders and weekend adventurers alike. ### Key Features and Technology The engineering of the Arrow Super Sport is complemented by a rigid box section frame that provides stability and durability, while the trailing link front fork and swing arm rear suspension with twin shock absorbers ensure a comfortable ride across varied terrains. The drum brakes, both front and rear, provide reliable stopping power, essential for instilling confidence in the rider. Additional features such as the classic kick starter and a stylish windshield enhance both the functionality and aesthetics of the motorcycle. With a seat height of 760 mm (29.9 inches), it offers accessibility for riders of different heights, making it a versatile choice for many. ###

Pros

    Cons

    • Lightweight and agile design, making it easy to handle for novice and experienced riders alike.
    • Excellent fuel efficiency, allowing for longer rides without frequent stops at the pump.
    • Classic styling with a unique color combination that appeals to vintage motorcycle enthusiasts.
    • Limited power output may not satisfy riders seeking high-performance capabilities.
    • Drum brakes may lack the stopping precision and power of modern disc brakes.
    • Rigid frame design can lead to a stiffer ride over bumpy surfaces compared to modern suspension systems.

    Technical details

    Source specification data

    Make
    Ariel
    Model
    Arrow Super Sport 250
    Category
    Allround
    Starter
    Kick
    Comments
    Windshield.
    Electrical
    6V battery.
    Color Options
    White/gold
    Power
    20.00 HP (14.6 kW)) @ 6500 RPM
    Clutch
    Multi plate
    Gearbox
    4-speed
    Ignition
    Lucas.
    Top Speed
    126.0 km/h (78.3 mph)
    Fuel System
    Carburettor. Amal
    Bore X Stroke
    54.0 x 54.0 mm (2.1 x 2.1 inches)
    Compression
    10.0:1
    Displacement
    247.00 ccm (15.07 cubic inches)
    Cooling System
    Air
    Engine Details
    Twin, two-stroke
    Exhaust System
    2-into-2
    Fuel Consumption
    3.36 litres/100 km (29.8 km/l or 70.01 mpg)
    Greenhouse Gases
    O2
    g/km. (
    O2
    -
    Carbon
    dioxide emission)
    Transmission Type Final Drive
    Chain
    Dry Weight
    131.5 kg (290.0 pounds)
    Seat Height
    760 mm (29.9 inches) If adjustable, lowest setting.
    Fuel Capacity
    13.60 litres (3.59 gallons)
    Power Weight Ratio
    0.1520 HP/kg
    Wheels
    Wire spoked
    Rear Tyre
    3.25-16
    Frame Type
    Rigid box section frame
    Front Tyre
    3.25-16
    Rear Brakes
    Expanding brake (drum brake)
    Front Brakes
    Expanding brake (drum brake)
    Rear Suspension
    Swing arm, twin shock absorbers/dampers
    Front Suspension
    Trailing link fork

    Available colors

    White/gold
