Benelli Tornado Naked Tre R160
2010Naked

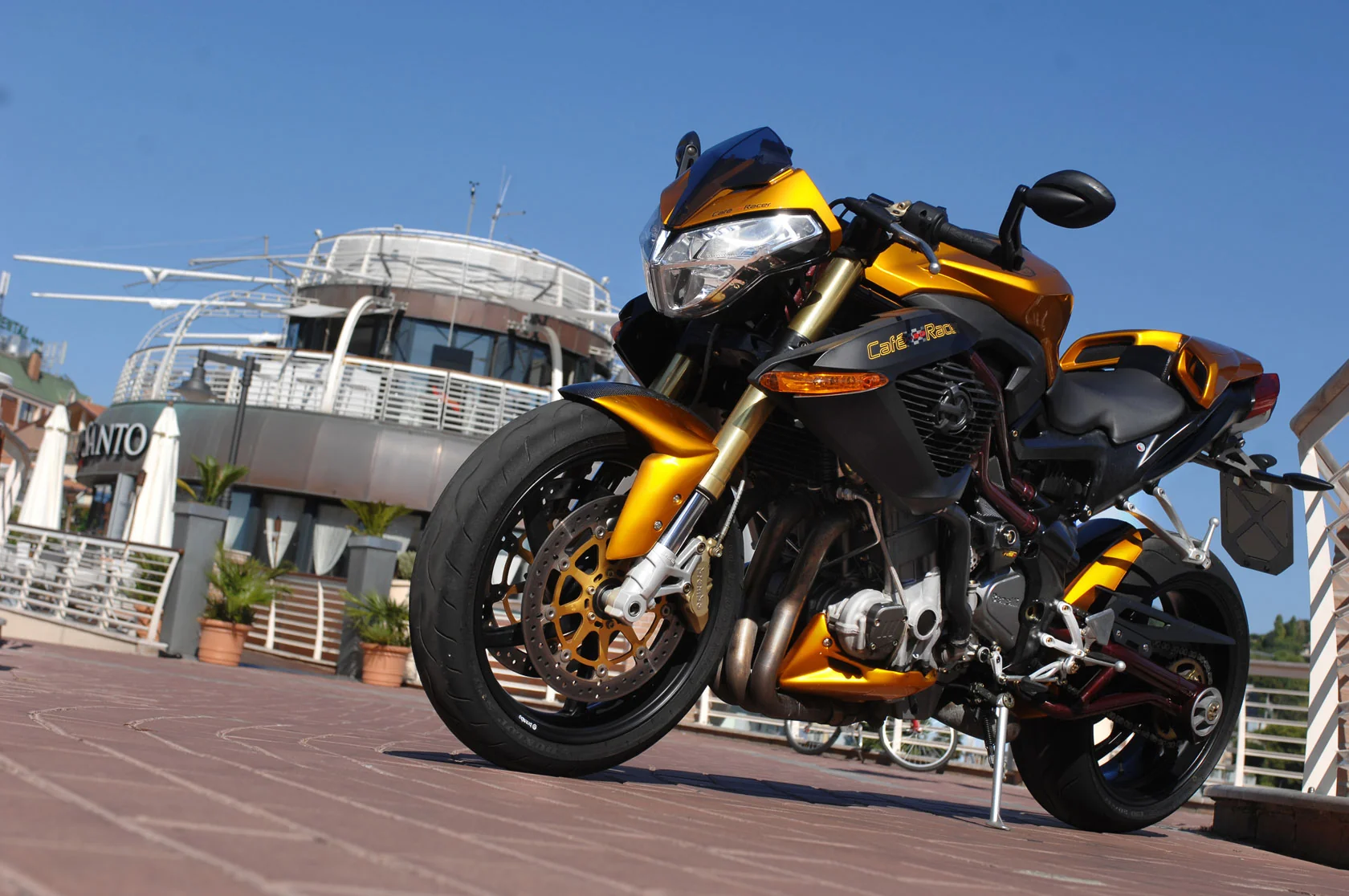

Benelli Tornado Naked Tre R160

Key specifications

Engine
1131 cc
Power
153 HP
Torque
120 Nm
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. 4-piston caliper
Rear brakes
Single disc

Overview

Introducing the 2010 Benelli Tornado Naked Tre R160, a stunning naked bike that defies convention with its striking design and potent performance. Positioned as a bold entry in the ever-competitive naked motorcycle segment, the Tornado Naked Tre R160 captures the essence of Italian craftsmanship and engineering excellence. With its aggressive styling and muscular stance, this motorcycle not only draws attention but also promises an exhilarating riding experience that blends raw power with refined handling. At the heart of the Tornado Naked Tre R160 lies a robust 1131cc in-line three-cylinder engine, generating a remarkable 152.88 horsepower at 10,300 RPM and an impressive torque of 120 Nm at 8,000 RPM. This powerhouse is engineered for those who crave a spirited ride, delivering a thrilling acceleration that propels you forward with unyielding enthusiasm. The electronic fuel injection system, featuring three 53mm throttle bodies, ensures optimal fuel delivery, while the 6-speed gearbox allows for seamless gear changes, enhancing both performance and rider engagement. Whether navigating city streets or carving through twisty backroads, the Tornado’s agility and responsive handling make for a dynamic and enjoyable ride. The Tornado Naked Tre R160 is not just about raw power; it’s also equipped with a suite of advanced features and technologies that elevate the riding experience. The decomposable frame combines a sturdy front steel trestle with a lightweight aluminum rear casting, ensuring both durability and agility. Its suspension setup, consisting of a 50mm upside-down fork at the front and a progressive rear damper, offers adjustable hydraulic extension, compression, and spring preload settings, providing riders with the ability to tailor their ride to their preferences. Additionally, the braking system features double front discs with a 4-piston caliper for powerful stopping power, complemented by a single rear disc for balanced braking performance. The bike’s stylish aesthetic is highlighted by its vibrant red and black color options, making it a head-turner on any street. **

Pros

  • Powerful Engine: The 1131cc engine produces exhilarating power and torque, providing thrilling acceleration and a dynamic ride.
  • Advanced Suspension: Adjustable front and rear suspension allows riders to customize their setup for enhanced comfort and handling.
  • Striking Design: The aggressive styling and bold color options make the Tornado Naked Tre R160 a visually stunning motorcycle that stands out in any crowd.

Cons

  • Weight: At 215 kg (474 lbs), it may feel heavy for some riders, especially at low speeds or during maneuvering.
  • Seat Height: With a height of 820 mm (32.3 inches), it may be challenging for shorter riders to reach the ground comfortably.
  • Fuel Capacity: The 16-liter fuel tank may require more frequent refueling on longer rides compared to competitors with larger capacities.

Technical details

Source specification data

Make
Benelli
Model
Tornado Naked Tre R160
Category
Naked bike
Color Options
Red/black
Power
152.88 HP (111.6 kW)) @ 10300 RPM
Clutch
Wt, multidisk
Torque
120.00 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 8000 RPM
Gearbox
6-speed
Fuel System
Injection
.
Electronic
injection with three throttle bodies ø53 mm
Bore X Stroke
88.0 x 62.0 mm (3.5 x 2.4 inches)
Compression
11.2:1
Displacement
1131.00 ccm (69.01 cubic inches)
Cooling System
Liquid
Engine Details
In-line three, four-stroke
Lubrication System
Wet sump
Valves Per Cylinder
4
Transmission Type Final Drive
Chain
Seat Height
820 mm (32.3 inches) If adjustable, lowest setting.
Fuel Capacity
16.00 litres (4.23 gallons)
Overall Width
790 mm (31.1 inches)
Overall Height
1,050 mm (41.3 inches)
Overall Length
2,128 mm (83.8 inches)
Reserve Fuel Capacity
4.00 litres (1.06 gallons)
Weight Incl Oil Gas Etc
215.0 kg (474.0 pounds)
Rake
24.0°
Trail
95 mm (3.7 inches)
Rear Tyre
190/50-ZR17
Frame Type
Decomposable, front steel trestle, rear alluminium alloy casting
Front Tyre
120/70-ZR17
Rear Brakes
Single disc
Front Brakes
Double disc. 4-piston caliper
Rear Suspension
Steel trestle swingarm, progressive rear dumper with idraulic extension/compression and spring preload adjustments
Front Suspension
Ø50 mm upside-down fork, with idraulic extension / compression and spring preload adjustments
Rear Wheel Travel
120 mm (4.7 inches)
Front Wheel Travel
120 mm (4.7 inches)
Rear Brakes Diameter
220 mm (8.7 inches)
Front Brakes Diameter
260 mm (10.2 inches)

Available colors

Red/black
