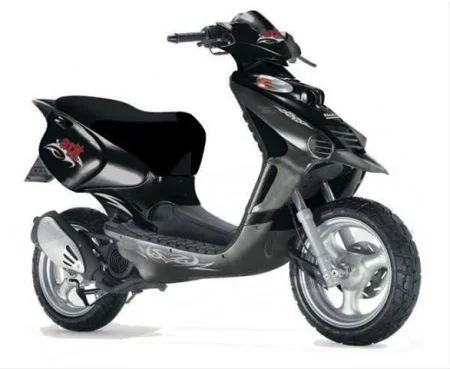

Beta Ark AC RR
2010Scooter

Beta Ark AC RR

Key specifications

Engine
49 cc
Weight
88 kg
Fuel type
petrol
Fuel capacity
2.0 L
Transmission
Automatic
Front brakes
Single disc
Rear brakes
Single disc

Overview

Introducing the 2010 Beta Ark AC RR, a spirited scooter that stands out in the crowded realm of urban mobility. Designed with the adventurous rider in mind, this compact two-stroke machine strikes a perfect balance between performance, practicality, and style. It’s particularly appealing to those looking for a lightweight option that doesn’t compromise on excitement. With its striking red and white color scheme, the Ark AC RR is not only built for functionality but also designed to turn heads on city streets. At the heart of the Beta Ark AC RR lies a robust 49cc single-cylinder engine that delivers a peppy performance, making it ideal for zipping through traffic and navigating tight corners. The air-cooled, two-stroke engine operates at a compression ratio of 12.0:1, providing an exhilarating acceleration that makes city commuting a thrill. With a dry automatic centrifugal clutch and an automatic gearbox, riding the Ark AC RR is a breeze, allowing riders to focus on the road ahead rather than shifting gears. The lightweight chassis, tipping the scales at just 88 kg (194 pounds), combined with a capable hydraulic front fork and a monoshock rear suspension, ensures a smooth ride over urban bumps and dips. What sets the 2010 Beta Ark AC RR apart are its thoughtful features and technology designed for the modern rider. The tubular steel frame not only enhances durability but also contributes to the scooter’s sleek silhouette. Its dual-disc braking system — 190 mm single discs at both the front and rear — offers reliable stopping power, instilling confidence in riders navigating through busy urban environments. The electric starter adds convenience, ensuring a hassle-free ignition, while the adjustable spring preload on the rear suspension allows users to fine-tune their riding experience based on personal preference. With a fuel capacity of 7.5 liters, the Ark AC RR promises an efficient range for daily commutes. **

Pros

  • Lightweight and Agile: At only 88 kg, the Ark AC RR is easy to maneuver, making it perfect for urban commuting.
  • Automatic Gearbox: The automatic transmission simplifies riding, allowing riders to focus on the experience rather than shifting gears.
  • Stylish Design: The vibrant red and white color scheme combined with a sleek design make it visually appealing and trendy.

Cons

  • Limited Power for Long Distances: The 49cc engine may not be sufficient for longer rides or highway usage, limiting its versatility.
  • Single Cylinder Configuration: While it provides adequate performance for city riding, it may lack the power curves that some riders desire for more spirited riding.
  • Basic Suspension Setup: Although functional, the suspension may not offer the same level of performance or comfort as more advanced systems found in higher-end models.

Technical details

Source specification data

Make
Beta
Model
Ark AC RR
Category
Scooter
Starter
Electric
Comments
A
liquid cooled version called
R
is available.
Color Options
Red/white
Clutch
Dry automatic centrifugal type
Gearbox
Automatic
Fuel System
Carburettor. Dell´Orto PHVA 12
Bore X Stroke
40.0 x 39.2 mm (1.6 x 1.5 inches)
Compression
12.0:1
Displacement
49.00 ccm (2.99 cubic inches)
Cooling System
Air
Engine Details
Single cylinder, two-stroke
Lubrication System
With mechanical pump - mix gasoline-oil 1,5% (with synthetic oil)
Transmission Type Final Drive
Belt
Dry Weight
88.0 kg (194.0 pounds)
Fuel Capacity
7.50 litres (1.98 gallons)
Overall Width
830 mm (32.7 inches)
Overall Height
1,150 mm (45.3 inches)
Ground Clearance
215 mm (8.5 inches)
Rear Tyre
130/60-13
Frame Type
Tubular steel
Front Tyre
130/60-13
Rear Brakes
Single disc
Front Brakes
Single disc
Rear Suspension
Monoshock with adjustable spring preload
Front Suspension
Hydraulic fork with ø32 mm shaft
Rear Brakes Diameter
190 mm (7.5 inches)
Front Brakes Diameter
190 mm (7.5 inches)

Available colors

Red/white
