Beta Rev 3 270
Key specifications
Overview

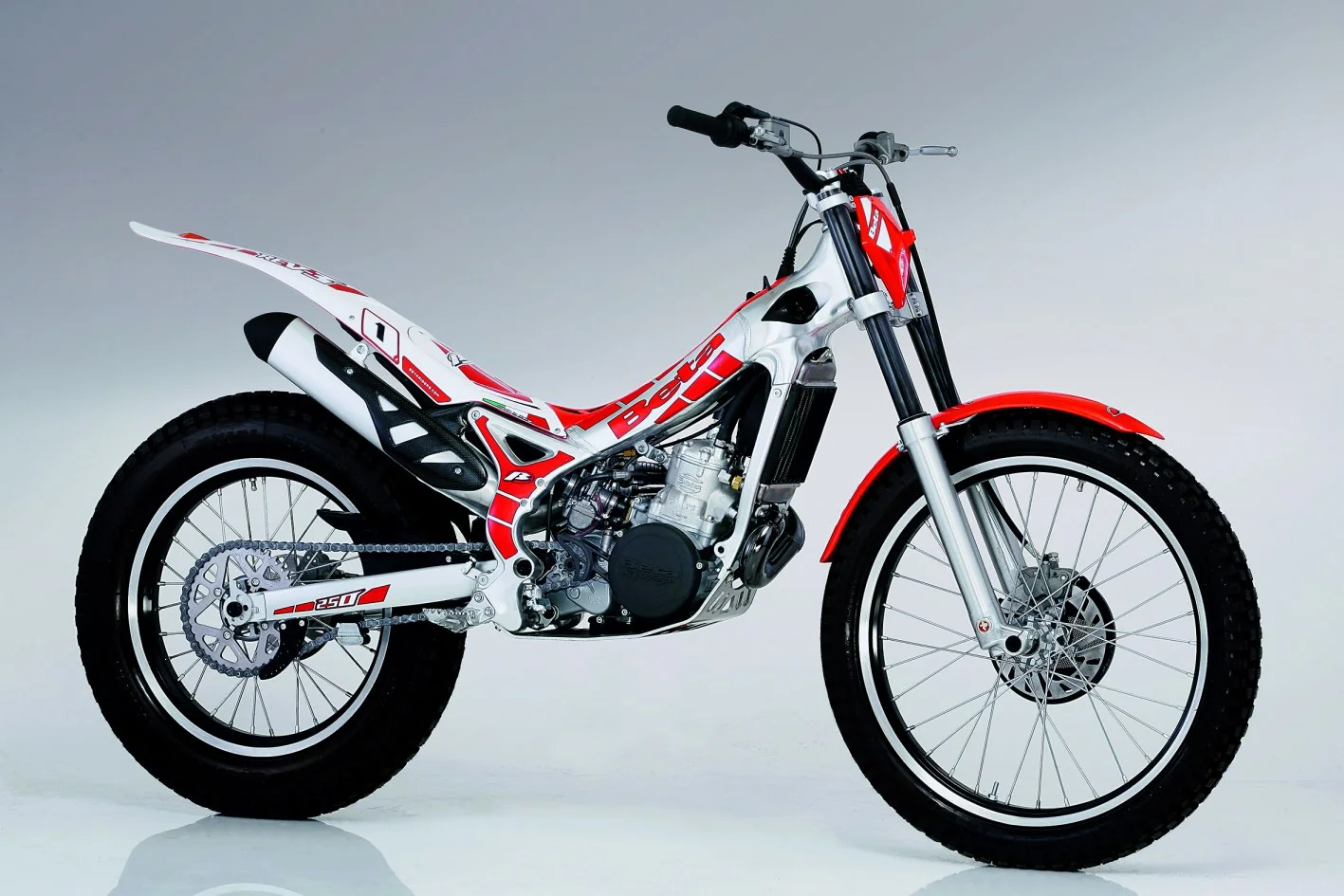

Introducing the 2006 Beta Rev 3 270, a remarkable specimen in the world of trial motorcycles, designed to deliver a blend of agility, power, and precision. With a rich heritage in off-road performance, Beta has carved out a niche for itself, offering machines that cater to both competitive riders and enthusiasts alike. The Rev 3 270 stands out in the trial category, providing a lightweight and nimble platform that is perfect for tackling the most challenging obstacles. Its sleek design coupled with robust engineering makes it a formidable contender in the trial scene, appealing to riders who demand exceptional control and finesse. At the heart of the Rev 3 270 lies a robust 274.50 ccm single-cylinder, two-stroke engine that churns out an impressive amount of torque, enabling riders to navigate steep inclines and technical sections with ease. The engine’s 10.6:1 compression ratio combined with a Mikuni VM26/208 carburettor fuels a responsive throttle that enhances acceleration and provides instant power delivery—essential for trial riding where every millisecond counts. The 6-speed gearbox offers smooth transitions between gears, allowing riders to find the perfect power band for any situation. This combination of power and precision makes the Rev 3 270 not just a motorcycle, but a true extension of the rider's capabilities. Beta has equipped the Rev 3 270 with remarkable technology and features that further enhance its performance. The aluminium frame is not only lightweight but also incredibly stiff, providing excellent feedback and handling in tricky terrains. The hydraulic front fork and monoshock rear suspension work in harmony, offering 165 mm and 175 mm of travel respectively, ensuring that the bike absorbs the toughest bumps without compromising traction. The braking system features high-performance single discs, with a 185 mm front and a 175 mm rear, delivering reliable stopping power when needed. With a ground clearance of 310 mm, the Rev 3 270 offers riders the confidence to tackle extreme angles and obstacles without fear of bottoming out. **
Pros
- Lightweight Design: At just 72 kg, the Rev 3 270 is incredibly nimble, making it easier to maneuver through tight spots and technical sections.
- Powerful Engine: The two-stroke engine provides excellent torque and acceleration, perfect for trial riding demands.
- Exceptional Suspension: With high-quality suspension components, the bike offers excellent handling and comfort over rough terrain.
Cons
- Limited Fuel Capacity: With a fuel tank of only 3.20 litres, longer rides may require more frequent refueling, which can be inconvenient.
- Two-Stroke Maintenance: The two-stroke engine can require more regular maintenance compared to four-stroke counterparts, which might deter some riders.
- Niche Appeal: As a trial bike, its specialized nature may limit its versatility for riders looking for a multi-purpose motorcycle.
Technical details
Source specification data
- Make
- Beta
- Model
- Rev 3 270
- Category
- Trial
- Gearbox
- 6-speed
- Fuel System
- Carburettor. Mikuni VM26/208
- Bore X Stroke
- 76.0 x 60.5 mm (3.0 x 2.4 inches)
- Compression
- 10.6:1
- Displacement
- 274.50 ccm (16.75 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, two-stroke
- Dry Weight
- 72.0 kg (158.7 pounds)
- Fuel Capacity
- 3.20 litres (0.85 gallons)
- Overall Width
- 850 mm (33.5 inches)
- Overall Height
- 1,120 mm (44.1 inches)
- Overall Length
- 1,990 mm (78.3 inches)
- Ground Clearance
- 310 mm (12.2 inches)
- Reserve Fuel Capacity
- 1.00 litres (0.26 gallons)
- Frame Type
- Aluminium
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Monoshock
- Front Suspension
- Hydraulic fork
- Rear Wheel Travel
- 175 mm (6.9 inches)
- Front Wheel Travel
- 165 mm (6.5 inches)
- Rear Brakes Diameter
- 175 mm (6.9 inches)
- Front Brakes Diameter
- 185 mm (7.3 inches)
