Back to Bike FinderYears: 2013
2013Other

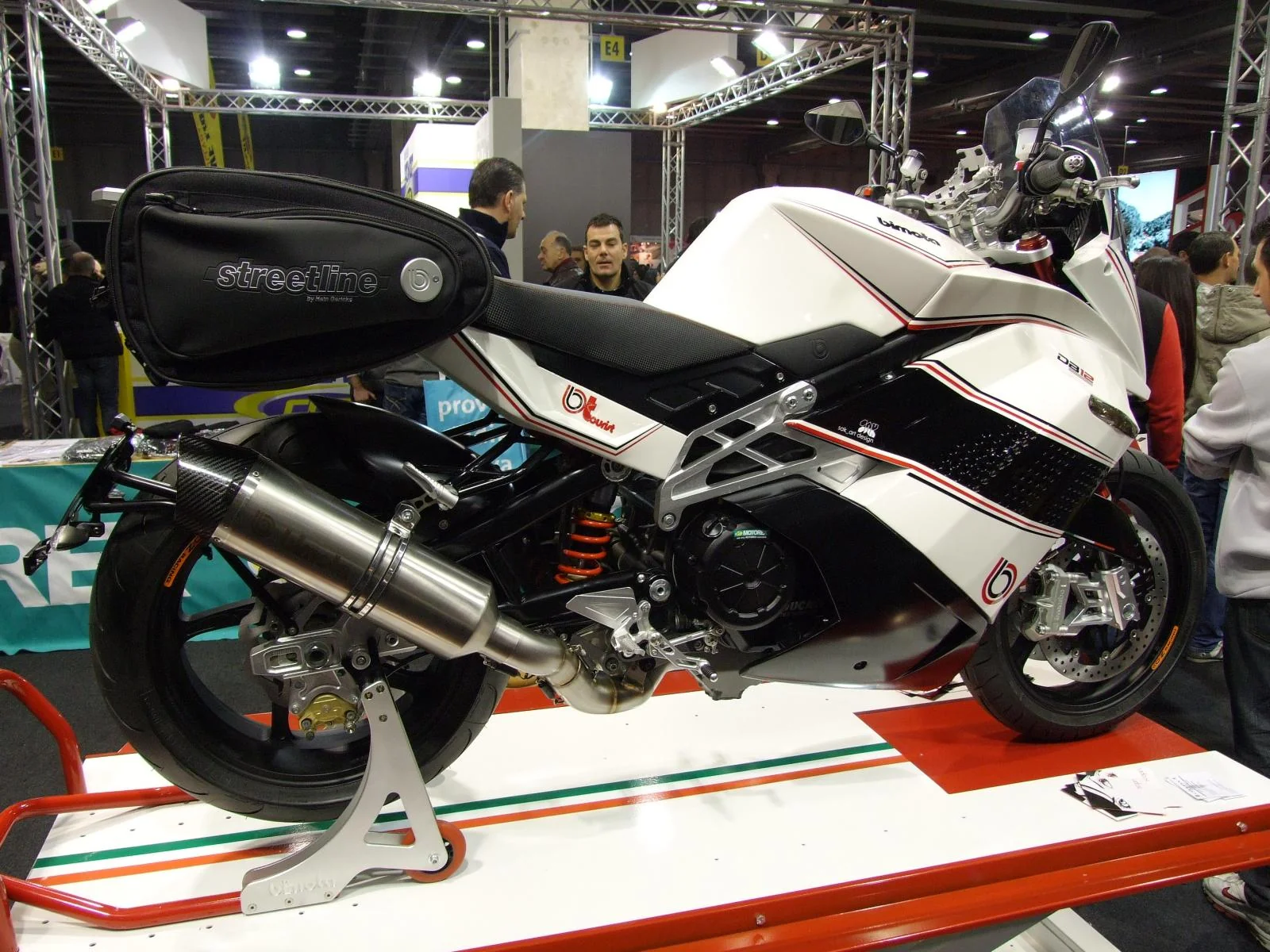

Bimota DB12 B Tourist
Key specifications
Engine
1198 cc
Power
148 HP
Torque
125 Nm
Weight
185 kg
Fuel type
petrol
Fuel capacity
4.8 L
Transmission
6-speed
Seat height
34 mm
Front brakes
Double disc. Floating discs. Four-piston calipers. Radially mounted.
Rear brakes
Single disc. Two-piston calipers.
Technical details
Source specification data
- Make
- Bimota
- Model
- DB12 B Tourist
- Category
- Sport touring
- Starter
- Electric
- Comments
- Windscreen
- Color Options
- White/red/black
- Carrying Capacity
- Mounting points for a luggage system
- Power
- 147.91 HP (108.0 kW)) @ 9250 RPM
- Clutch
- Light
- action, wet, multiplate clutch with hydraulic control.
- Self
- -servo action on drive, slipper action on over-run
- Torque
- 124.50 Nm (12.7 kgf-m or 91.8 ft.lbs) @ 7500 RPM
- Gearbox
- 6-speed
- Engine Type
- Ducati Testastretta engine
- Fuel System
- Injection
- .
- Mitsubishi
- electronic fuel injection system,
- Mikuni
- elliptical throttle bodies
- Bore X Stroke
- 106.0 x 67.9 mm (4.2 x 2.7 inches)
- Compression
- 11.5:1
- Displacement
- 1198.40 ccm (73.13 cubic inches)
- Cooling System
- Liquid
- Engine Details
- V2, four-stroke
- Exhaust System
- Stainless steel muffler with catalytic converter and 2 lambda probes, alluminium tail pipes
- Transmission Type Final Drive
- Chain
- Dry Weight
- 185.1 kg (408.0 pounds)
- Seat Height
- 850 mm (33.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 17.98 litres (4.75 gallons)
- Power Weight Ratio
- 0.7992 HP/kg
- Rake
- 25.0°
- Trail
- 110 mm (4.3 inches)
- Rear Tyre
- 190/55-17
- Frame Type
- Tubular steel Trellis frame
- Front Tyre
- 120/70-17
- Rear Brakes
- Single disc. Two-piston calipers.
- Front Brakes
- Double
- disc.
- Floating
- discs.
- Four
- -piston calipers.
- Radially
- mounted.
- Rear Suspension
- Extreme Tech
- .
- Electronic
- compression and rebound damping adjustment.
- Electronic
- spring pre-load adjustment with
- S Aluminium
- single-sided swingarm.
- Front Suspension
- Marzocchi
- 48mm fully adjustable usd forks.
- Electronic
- compression and rebound damping adjustment with
- Rear Brakes Diameter
- 245 mm (9.6 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
White/red/black
