2009Sportbike

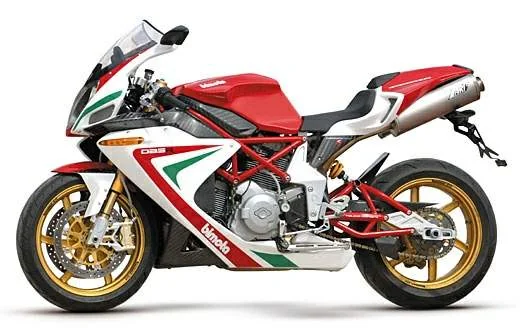

Bimota DB5 R
Key specifications
Engine
1078 cc
Power
95 HP
Torque
103 Nm
Weight
169 kg
Fuel type
petrol
Transmission
6-speed
Seat height
32 mm
Front brakes
Single disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers
Rear brakes
Single disc. Brembo, 2-pistons, 2-pads with Brembo caliper
Technical details
Source specification data
- Make
- Bimota
- Model
- DB5 R
- Category
- Sport
- Comments
- Ducati DS 1000 engine.
- Color Options
- Red/white/green
- Power
- 95.00 HP (69.3 kW)) @ 7000 RPM
- Clutch
- Dry multi-disc
- Torque
- 102.97 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 5500 RPM
- Gearbox
- 6-speed
- Fuel System
- Injection
- .
- Electronic
- injection-45mm throttle body
- Bore X Stroke
- 98.0 x 71.5 mm (3.9 x 2.8 inches)
- Compression
- 10.1:1
- Displacement
- 1078.00 ccm (65.78 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 2
- Dry Weight
- 169.0 kg (372.6 pounds)
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Overall Length
- 2,180 mm (85.8 inches)
- Ground Clearance
- 130 mm (5.1 inches)
- Power Weight Ratio
- 0.5621 HP/kg
- Rake
- 24.0°
- Trail
- 100 mm (3.9 inches)
- Rear Tyre
- 180/55-17
- Frame Type
- CrMo steel trellis
- Front Tyre
- 120/70-17
- Rear Brakes
- Single
- disc.
- Brembo
- , 2-pistons, 2-pads with
- Brembo
- caliper
- Front Brakes
- Single
- disc.
- Brembo
- , 4-pistons, 4-pads with radial
- Brembo
- calipers
- Rear Suspension
- Ohlins Mono Shock, fully adjustable
- Front Suspension
- N
- .
- Fully
- adjustable, 43 m
- Rear Wheel Travel
- 120 mm (4.7 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Red/white/green
