Back to Bike FinderYears: 2014 · 2013
2014Sportbike

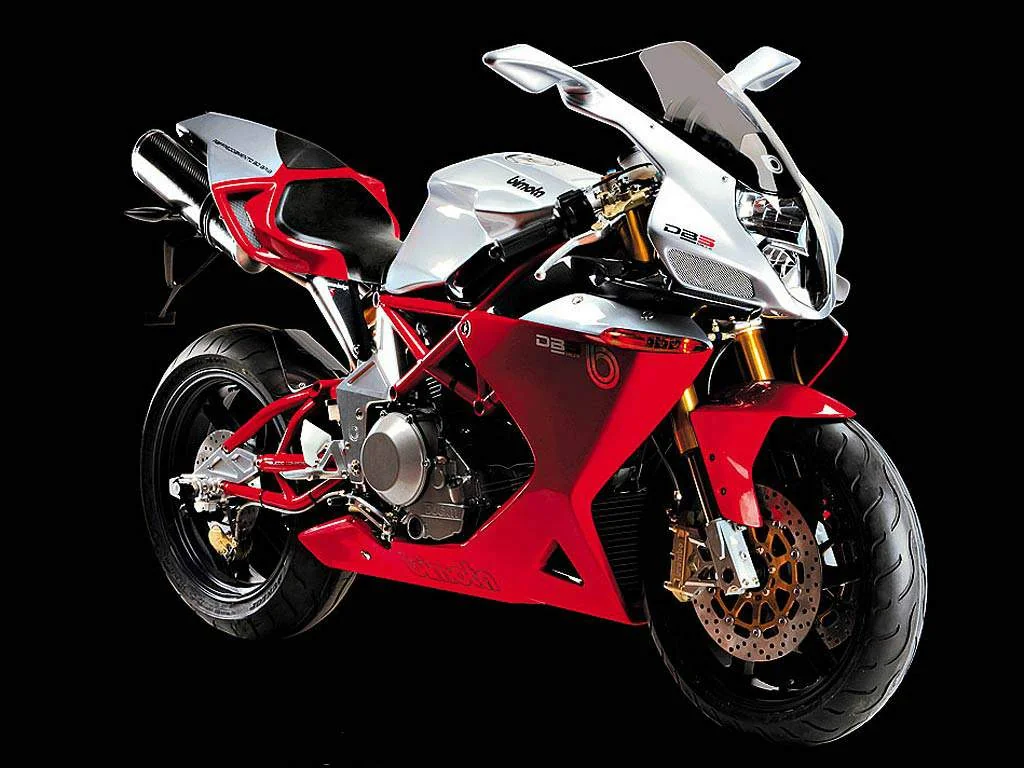

Bimota DB5 RE
Key specifications
Engine
1078 cc
Power
98 HP
Torque
105 Nm
Weight
169 kg
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Single disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers
Rear brakes
Single disc. 2-pistons, Bimota caliper
Technical details
Source specification data
- Make
- Bimota
- Model
- DB5 RE
- Category
- Sport
- Comments
- Italian bike.
- Color Options
- Red/white/green
- Power
- 98.00 HP (71.5 kW)) @ 8500 RPM
- Clutch
- Dry multiplate
- Torque
- 105.00 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 5500 RPM
- Gearbox
- 6-speed
- Top Speed
- 230.0 km/h (142.9 mph)
- Engine Type
- Ducati 1100DS engine. L-twin.
- Fuel System
- Injection
- Bore X Stroke
- 98.0 x 71.5 mm (3.9 x 2.8 inches)
- Compression
- 10.7:1
- Displacement
- 1078.00 ccm (65.78 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- V2, four-stroke
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 169.0 kg (372.6 pounds)
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Width
- 830 mm (32.7 inches)
- Overall Height
- 1,110 mm (43.7 inches)
- Overall Length
- 2,050 mm (80.7 inches)
- Ground Clearance
- 130 mm (5.1 inches)
- Power Weight Ratio
- 0.5799 HP/kg
- Rake
- 24.0°
- Trail
- 100 mm (3.9 inches)
- Wheels
- Forged Alluminium rims
- Rear Tyre
- 180/55-17
- Frame Type
- Tubular chrome-molibdenum steel
- Front Tyre
- 120/70-17
- Rear Brakes
- Single disc. 2-pistons, Bimota caliper
- Front Brakes
- Single
- disc.
- Brembo
- , 4-pistons, 4-pads with radial
- Brembo
- calipers
- Rear Suspension
- Monoshock
- Front Suspension
- Upside-down fully adjustable forks
- Rear Wheel Travel
- 120 mm (4.7 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 298 mm (11.7 inches)
Available colors
Red/white/green
