Back to Bike FinderYears: 2012

2012Sportbike

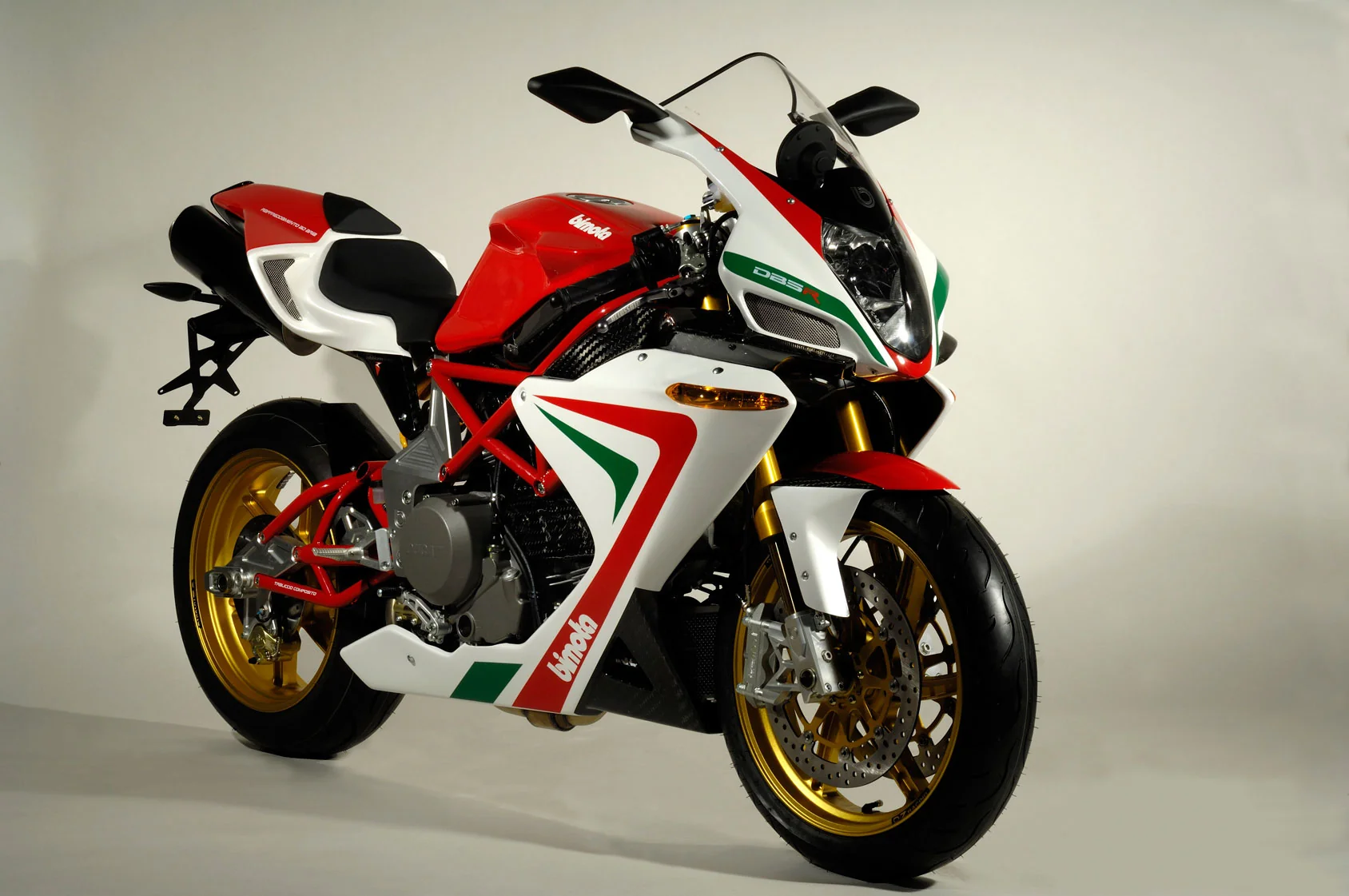

Bimota DB5R 1100
Key specifications
Engine
1078 cc
Power
98 HP
Torque
103 Nm
Weight
169 kg
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Single disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers
Rear brakes
Single disc. 2-pistons, 2-pads with Brembo caliper
Technical details
Source specification data
- Make
- Bimota
- Model
- DB5R 1100
- Category
- Sport
- Starter
- Electric
- Color Options
- Red/white/green
- Power
- 98.00 HP (71.5 kW)) @ 7000 RPM
- Clutch
- Slipper clutch
- Max Rpm
- 9000
- Torque
- 102.97 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 5500 RPM
- Gearbox
- 6-speed
- Engine Type
- Ducati 1100DS engine. L-twin.
- Fuel System
- Injection
- .
- Magneti Marelli
- -45mm throttle body
- Bore X Stroke
- 98.0 x 71.5 mm (3.9 x 2.8 inches)
- Compression
- 10.1:1
- Displacement
- 1078.00 ccm (65.78 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Exhaust System
- 2 in 1 in 2, inox
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 169.0 kg (372.6 pounds)
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Width
- 830 mm (32.7 inches)
- Overall Height
- 1,110 mm (43.7 inches)
- Overall Length
- 2,050 mm (80.7 inches)
- Ground Clearance
- 130 mm (5.1 inches)
- Power Weight Ratio
- 0.5799 HP/kg
- Reserve Fuel Capacity
- 5.00 litres (1.32 gallons)
- Rake
- 24.0°
- Trail
- 100 mm (3.9 inches)
- Wheels
- Forged Alluminium
- Rear Tyre
- 180/55-17
- Frame Type
- CrMo steel trellis, carbon fibre.
- Front Tyre
- 120/70-17
- Rear Brakes
- Single
- disc. 2-pistons, 2-pads with
- Brembo
- caliper
- Front Brakes
- Single
- disc.
- Brembo
- , 4-pistons, 4-pads with radial
- Brembo
- calipers
- Rear Suspension
- Monoshock
- , fully adjustable (
- Pre
- -load -
- External Hydraulic Device
- ,
- Compression
- ,
- Rebound
- )
- Front Suspension
- D
- Öhlins
- N Coated Fork
- , fully adjustable (
- Pre
- -load,
- Compression
- ,
- Rebound
- )
- Rear Wheel Travel
- 120 mm (4.7 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 230 mm (9.1 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Red/white/green
