2008Sportbike

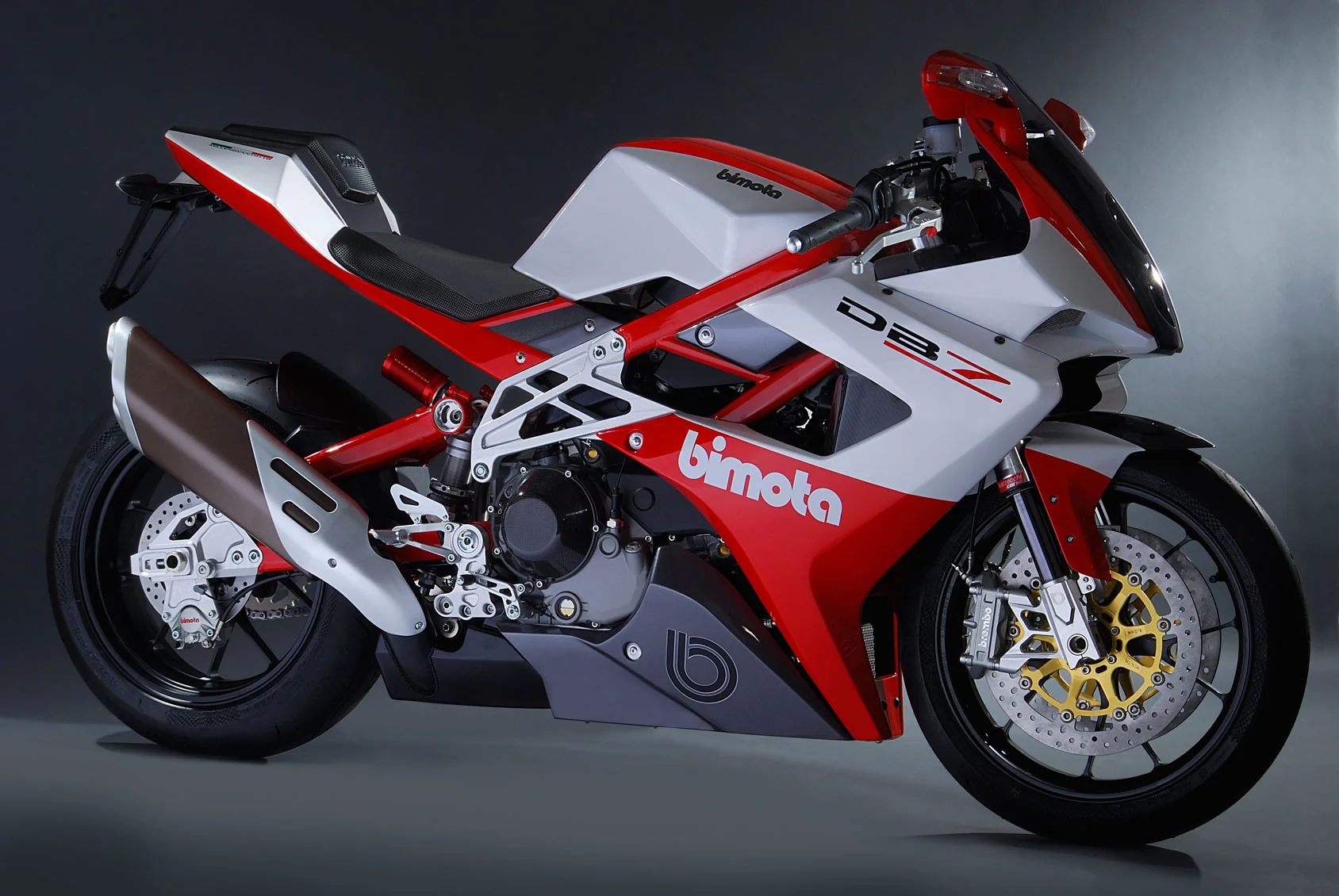

Bimota DB7
Key specifications
Engine
1098 cc
Power
95 HP
Torque
103 Nm
Weight
170 kg
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. Double 320 mm floating discs Brembo, Radial Caliper Brembo 4-Pistons, 4-Pads
Rear brakes
Single disc. Bimoto 2-pistons, 2-pads Brembo callipers
Technical details
Source specification data
- Make
- Bimota
- Model
- DB7
- Category
- Sport
- Starter
- Electric
- Power
- 95.00 HP (69.3 kW)) @ 7000 RPM
- Clutch
- Oil Bath Clutch, multi-disc
- Max Rpm
- 10700
- Torque
- 102.97 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 5500 RPM
- Gearbox
- 6-speed
- Fuel System
- Injection
- .
- Electronic
- fule injection, 60 mm throttle body
- Bore X Stroke
- 104.0 x 64.5 mm (4.1 x 2.5 inches)
- Compression
- 12.5:1
- Displacement
- 1098.00 ccm (67.00 cubic inches)
- Cooling System
- Liquid
- Engine Details
- V2, four-stroke
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 170.0 kg (374.8 pounds)
- Seat Height
- 800 mm (31.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Width
- 700 mm (27.6 inches)
- Overall Height
- 1,115 mm (43.9 inches)
- Overall Length
- 2,010 mm (79.1 inches)
- Ground Clearance
- 170 mm (6.7 inches)
- Power Weight Ratio
- 0.5588 HP/kg
- Reserve Fuel Capacity
- 4.00 litres (1.06 gallons)
- Rear Percentage Of Weight
- 49
- Front Percentage Of Weight
- 51
- Rake
- 25.0°
- Rear Tyre
- 180/55-ZR17
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single
- disc.
- Bimoto
- 2-pistons, 2-pads
- Brembo
- callipers
- Front Brakes
- Double
- disc.
- Double
- 320 mm floating discs
- Brembo
- ,
- Radial Caliper Brembo
- 4-
- Pistons
- , 4-
- Rear Suspension
- Monoshock Extreme Tech Full Adjustable
- Front Suspension
- UD Marzocchi Fork Full Adjustable
- Rear Wheel Travel
- 120 mm (4.7 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 230 mm (9.1 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
