2013Sportbike

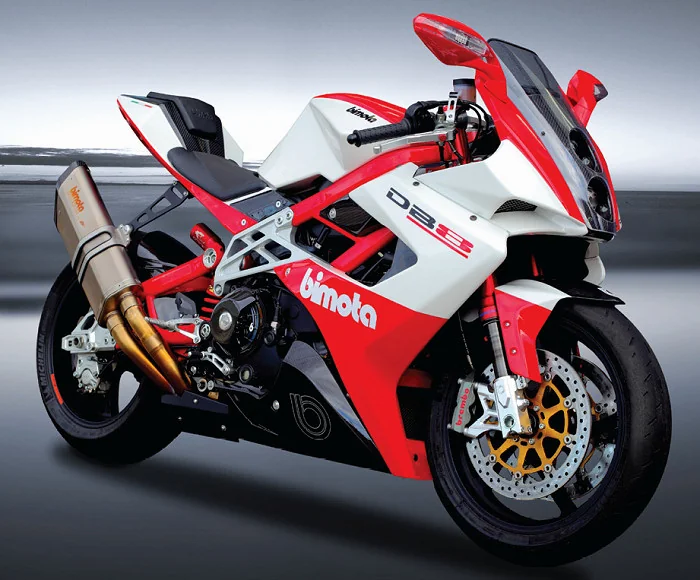

Bimota DB8 SP
Key specifications
Engine
1198 cc
Power
170 HP
Torque
127 Nm
Weight
175 kg
Fuel type
petrol
Fuel capacity
4.8 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. Monoblock
Rear brakes
Single disc. 2 piston Brembo calipers
Technical details
Source specification data
- Make
- Bimota
- Model
- DB8 SP
- Category
- Sport
- Power
- 170.00 HP (124.1 kW)) @ 9750 RPM
- Clutch
- Dry, multi-disc
- Torque
- 127.00 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 8000 RPM
- Gearbox
- 6-speed
- Top Speed
- 280.0 km/h (174.0 mph)
- Fuel System
- Injection. Walbro electronic injection
- Bore X Stroke
- 106.0 x 67.9 mm (4.2 x 2.7 inches)
- Compression
- 12.7:1
- Displacement
- 1198.00 ccm (73.10 cubic inches)
- Cooling System
- Liquid
- Engine Details
- V2, four-stroke
- Exhaust System
- 2 in 1 in 1, Titanium silencer.
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 175.0 kg (385.8 pounds)
- Seat Height
- 800 mm (31.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 18.00 litres (4.76 gallons)
- Overall Width
- 730 mm (28.7 inches)
- Overall Height
- 1,115 mm (43.9 inches)
- Overall Length
- 2,040 mm (80.3 inches)
- Ground Clearance
- 135 mm (5.3 inches)
- Power Weight Ratio
- 0.9714 HP/kg
- Rake
- 25.0°
- Trail
- 100 mm (3.9 inches)
- Rear Tyre
- 190/55-17
- Frame Type
- 39NiCrMo4 tubing and machined aluminium alloy plates
- Front Tyre
- 120/70-17
- Rear Brakes
- Single disc. 2 piston Brembo calipers
- Front Brakes
- Double disc. Monoblock
- Rear Suspension
- Preload-fully adjustable top and lower speed monoshock
- Front Suspension
- 43mm preload -fully adjustable and DLC treated upside-down forks
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
