2017Super Moto

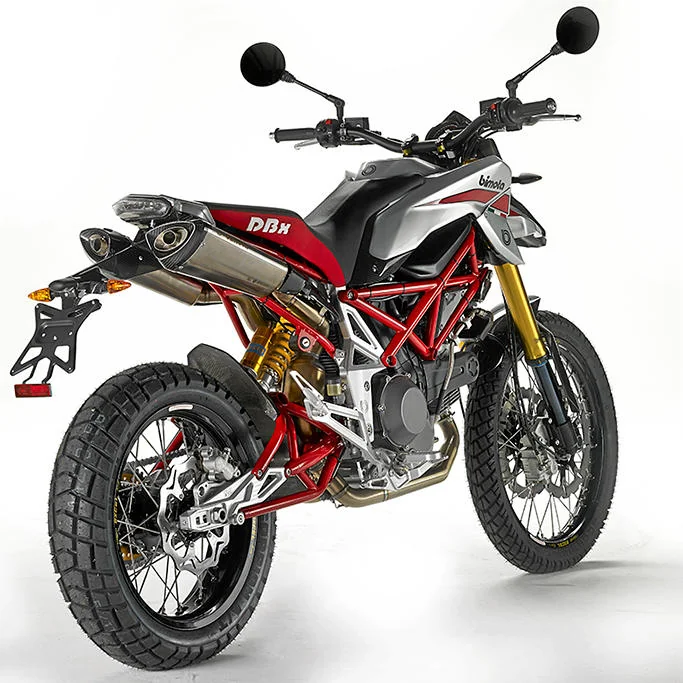

Bimota DBx 1100
Key specifications
Engine
1078 cc
Power
98 HP
Torque
105 Nm
Weight
175 kg
Fuel type
petrol
Fuel capacity
3.6 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers
Rear brakes
Single disc. 2-piston
Technical details
Source specification data
- Make
- Bimota
- Model
- DBx 1100
- Category
- Super motard
- Starter
- Electric
- Comments
- Italian brand.
- Color Options
- Red/silver/grey
- Power
- 98.00 HP (71.5 kW)) @ 7750 RPM
- Clutch
- Dry multidisc
- Torque
- 105.00 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 5500 RPM
- Gearbox
- 6-speed
- Ignition
- Walbro by Bimota
- Top Speed
- 220.0 km/h (136.7 mph)
- Engine Type
- Ducati 1100DS engine. L-twin.
- Fuel System
- Injection
- .
- Magneti Marelli
- -45mm throttle body
- Bore X Stroke
- 98.0 x 71.5 mm (3.9 x 2.8 inches)
- Compression
- 10.5:1
- Displacement
- 1078.00 ccm (65.78 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- V2, four-stroke
- Emission Details
- Euro 3
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 174.6 kg (384.9 pounds)
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 13.50 litres (3.57 gallons)
- Power Weight Ratio
- 0.5613 HP/kg
- Wheels
- Wire spoked, forged aluminium rims
- Rear Tyre
- 180/55-17
- Frame Type
- Tubular chrome-molybdenum steel
- Front Tyre
- 120/70-19
- Rear Brakes
- Single disc. 2-piston
- Front Brakes
- Double
- disc.
- Brembo
- , 4-pistons, 4-pads with radial
- Brembo
- calipers
- Rear Suspension
- Öhlins TTX preload-fully adjustable top and lower speed monoshock
- Front Suspension
- Öhlins TTX fully adjustable forks
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 300 mm (11.8 inches)
Available colors
Red/silver/grey
