Back to Bike FinderYears: 2015
2018Super Moto

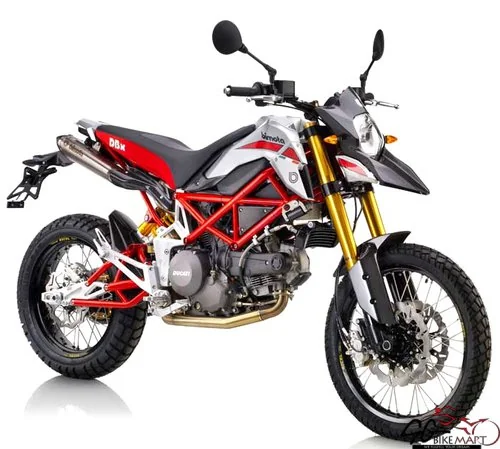

Bimota DBX
Key specifications
Engine
1078 cc
Power
98 HP
Torque
100 Nm
Weight
175 kg
Fuel type
petrol
Fuel capacity
3.7 L
Transmission
6-speed
Seat height
35 mm
Front brakes
Double disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers
Rear brakes
Single disc. 2-piston
Technical details
Source specification data
- Make
- Bimota
- Model
- DBX
- Category
- Super motard
- Starter
- Electric
- Comments
- Italian brand.
- Color Options
- Red/silver/grey
- Power
- 98.00 HP (71.5 kW)) @ 7750 RPM
- Clutch
- Wet multidisc with slippery clutch
- Torque
- 100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 6200 RPM
- Gearbox
- 6-speed
- Top Speed
- 220.0 km/h (136.7 mph)
- Engine Type
- Ducati 1100DS engine. L-twin.
- Fuel System
- Injection
- .
- Electronic
- fuel injection
- Bimota
- by
- Bore X Stroke
- 98.0 x 71.5 mm (3.9 x 2.8 inches)
- Compression
- 11.3:1
- Displacement
- 1078.00 ccm (65.78 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- V2, four-stroke
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 175.0 kg (385.8 pounds)
- Seat Height
- 890 mm (35.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 14.00 litres (3.70 gallons)
- Overall Width
- 850 mm (33.5 inches)
- Overall Height
- 1,200 mm (47.2 inches)
- Overall Length
- 2,220 mm (87.4 inches)
- Power Weight Ratio
- 0.5600 HP/kg
- Rake
- 27.0°
- Wheels
- Wire spoked, forged aluminium rims
- Rear Tyre
- 180/70-18
- Frame Type
- NiCrmo4 Steel trellis with aluminium plates
- Front Tyre
- 90/90-21
- Rear Brakes
- Single disc. 2-piston
- Front Brakes
- Double
- disc.
- Brembo
- , 4-pistons, 4-pads with radial
- Brembo
- calipers
- Rear Suspension
- Monoshock
- Öhlins for
- Bimota
- adjustable in preload, high and low speed of compression damping, single speed on rebound damping
- Front Suspension
- Öhlins Ø 48 mm upside down fork, TTX cartdridge system, with adjustable rebound and compression damping
- Rear Wheel Travel
- 200 mm (7.9 inches)
- Front Wheel Travel
- 210 mm (8.3 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 300 mm (11.8 inches)
Available colors
Red/silver/grey
