Back to Bike FinderYears: 2009
2009Naked

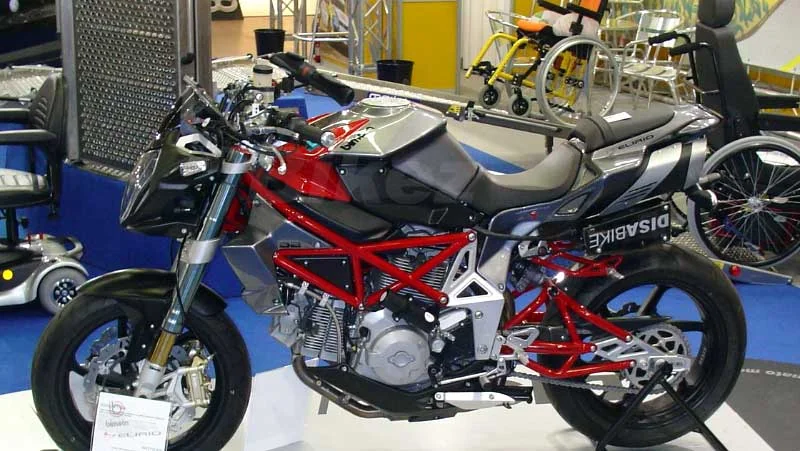

Bimota Disabike
Key specifications
Engine
1078 cc
Power
95 HP
Torque
88 Nm
Weight
170 kg
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
Automatic
Seat height
33 mm
Front brakes
Double disc. Bremo
Rear brakes
Single disc. bremo
Technical details
Source specification data
- Make
- Bimota
- Model
- Disabike
- Category
- Naked bike
- Starter
- Electric
- Comments
- Intended
- for riders with reduced mobility.
- Based
- on a
- B6
- .
- Power
- 95.00 HP (69.3 kW)) @ 7500 RPM
- Clutch
- Automatic
- Torque
- 88.30 Nm (9.0 kgf-m or 65.1 ft.lbs) @ 5500 RPM
- Gearbox
- Automatic
- Fuel System
- Injection. Walbro, 45 mm throttle body
- Bore X Stroke
- 98.0 x 71.5 mm (3.9 x 2.8 inches)
- Displacement
- 1078.00 ccm (65.78 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- V2, four-stroke
- Exhaust System
- Euro 3
- Valves Per Cylinder
- 2
- Dry Weight
- 170.0 kg (374.8 pounds)
- Seat Height
- 830 mm (32.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Power Weight Ratio
- 0.5588 HP/kg
- Rake
- 24.0°
- Trail
- 100 mm (3.9 inches)
- Rear Tyre
- 180/55-ZR17
- Frame Type
- CrMo steel trellis with aluminium plates
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. bremo
- Front Brakes
- Double disc. Bremo
- Rear Suspension
- Adjustable monoshock
- Front Suspension
- Marzocchi upside-down
- Rear Wheel Travel
- 130 mm (5.1 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
