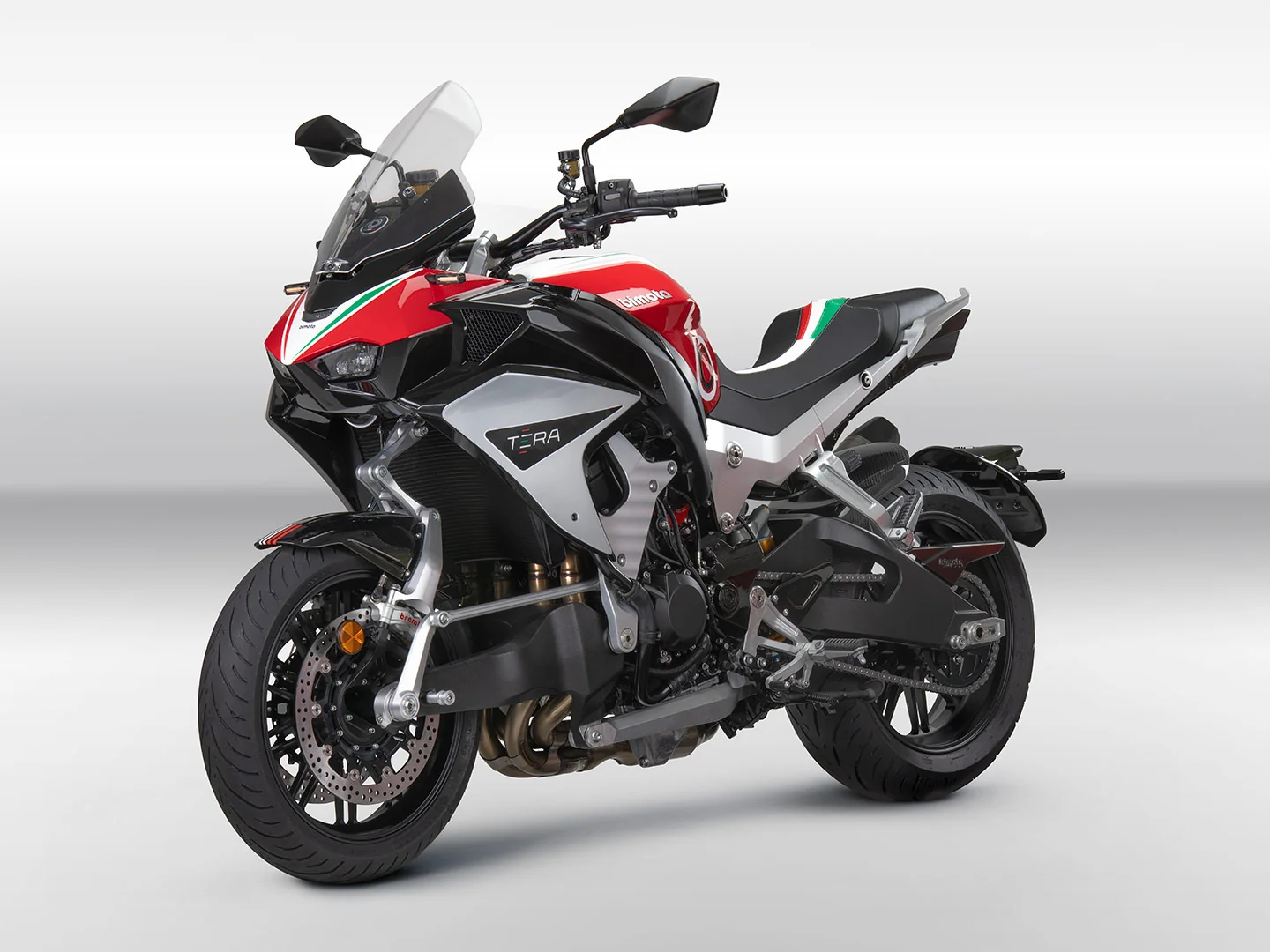

Bimota Tera
Key specifications
Engine
998 cc
Power
228 HP
Torque
127 Nm
Weight
207 kg
Fuel type
petrol
Fuel capacity
5.8 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. ABS. Brembo Stylema opposed 4-piston calipers.
Rear brakes
Single disc. KIBS ABS
Technical details
Source specification data
- Make
- Bimota
- Model
- Tera
- Category
- Sport
- Starter
- Electric
- Instruments
- TFT instrumentation
- Color Options
- Red/Black, Gold/Black
- Power
- 228.0 HP (166.4 kW)) @ 11000 RPM
- Clutch
- Wet multi-disc, manual
- Torque
- 127.0 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 8500 RPM
- Gearbox
- 6-speed
- Ignition
- battery and coil (transistorized ignition)
- Driveline
- Constant mesh
- Engine Type
- In-line four, four-stroke
- Fuel System
- Injection
- .
- I
- ®: 50 mm throttle bodies (4) with dual injection
- Bore X Stroke
- 76.0 x 55.0 mm (3.0 x 2.2 inches)
- Compression
- 11.2:1
- Displacement
- 998.0 ccm (60.90 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Kawaski H2 engine
- Emission Details
- Euro 5 pluss
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain (final drive)
- Dry Weight
- 207.0 kg (456.4 pounds)
- Seat Height
- 820 mm (32.3 inches) If adjustable, lowest setting.
- Oil Capacity
- 5.00 litres (5.28 US quarts)
- Fuel Capacity
- 22.00 litres (5.81 US gallons)
- Overall Width
- 770 mm (30.3 inches)
- Overall Height
- 1155 mm (45.5 inches)
- Overall Length
- 2074 mm (81.7 inches)
- Ground Clearance
- 174 mm (6.9 inches)
- Power Weight Ratio
- 1.1013 HP/kg
- Rake
- 21.3°
- Trail
- 117 mm (4.6 inches)
- Wheels
- Black, 5-spoke
- Rear Tyre
- 190/55-ZR17
- Frame Type
- Aluminum alloy plates billet machined, with rear swingarm mounting plate
- Front Tyre
- 120/70-R17
- Rear Brakes
- Single disc. KIBS ABS
- Front Brakes
- Double
- disc.
- S
- .
- Brembo Stylema
- opposed 4-piston calipers.
- Rear Suspension
- Öhlins TTX36 nitrogen gas charged shock with piggyback reservoir, compression and rebound damping and adjustability and hand-turn spring preload adjustability, and top-out spring
- Front Suspension
- Öhlins TTX 36 nitrogen gas charged shock with piggyback reservoir, compression and rebound damping and adjustability and hand-turn spring preload adjustability, and top-out spring/)
- Rear Wheel Travel
- 135 mm (5.3 inches)
- Front Wheel Travel
- 114 mm (4.5 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 330 mm (13.0 inches)
Available colors
Red/BlackGold/Black
