2012Sportbike

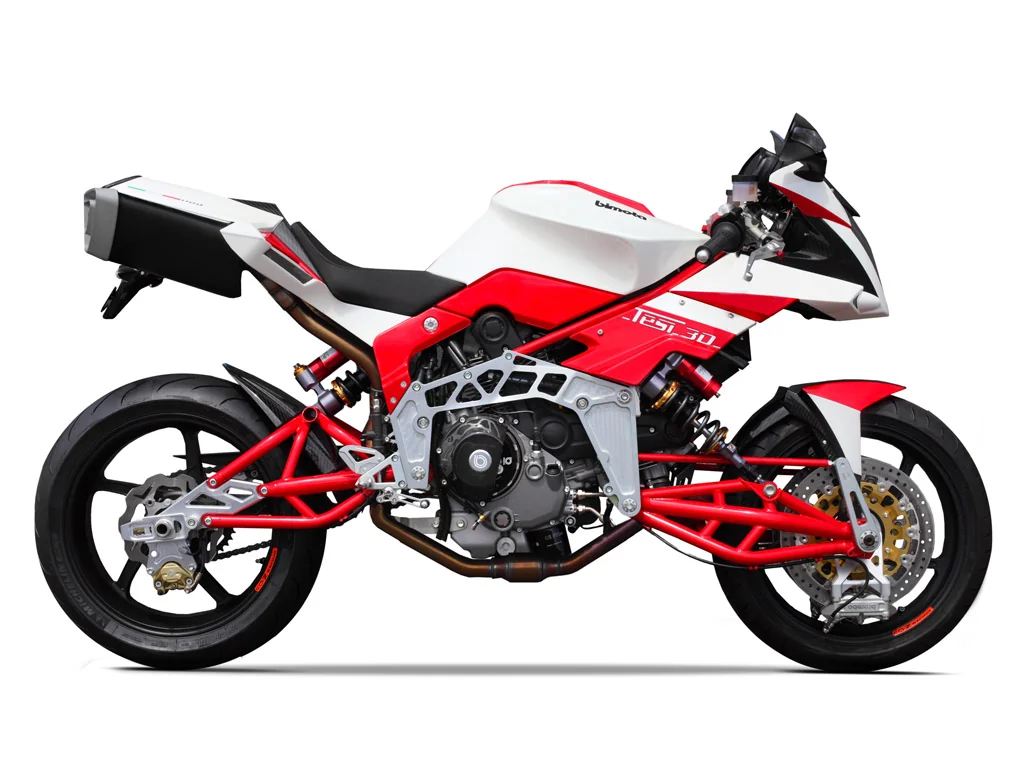

Bimota Tesi 3D E
Key specifications
Engine
1079 cc
Weight
167 kg
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. 4-piston
Rear brakes
Single disc. 2-piston
Technical details
Source specification data
- Make
- Bimota
- Model
- Tesi 3D E
- Category
- Sport
- Starter
- Electric
- Comments
- Ducati 1100DS engine.
- Color Options
- Red/white
- Clutch
- Dry Clutch, multi-disc
- Max Rpm
- 9000
- Gearbox
- 6-speed
- Driveline
- Primary Drive
- : 32/59 teeth.
- Final Drive
- : 15/40 teeth.
- Engine Type
- 90 degree L-Twin
- Fuel System
- Injection. Walbro
- Bore X Stroke
- 98.0 x 71.5 mm (3.9 x 2.8 inches)
- Compression
- 10.5:1
- Displacement
- 1079.00 ccm (65.84 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- V2, four-stroke
- Emission Details
- Euro 3
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 167.0 kg (368.2 pounds)
- Seat Height
- 800 mm (31.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Width
- 720 mm (28.3 inches)
- Overall Height
- 1,120 mm (44.1 inches)
- Overall Length
- 2,010 mm (79.1 inches)
- Reserve Fuel Capacity
- 5.00 litres (1.32 gallons)
- Rake
- 20.5°
- Wheels
- Forged Aluminium Alloy
- Rear Tyre
- 180/55-17
- Frame Type
- Made of two omega shaped lightweight alloy plates
- Front Tyre
- 120/70-17
- Rear Brakes
- Single disc. 2-piston
- Front Brakes
- Double disc. 4-piston
- Rear Suspension
- Swing
- arm.
- Extreme Tech Mono Shock
- fully adjustable,
- Front Suspension
- Swing
- arm.
- Monoshock
- ,
- Pull
- -
- Rod Extreme Tech
- , fully adjustable (
- Preload
- -
- External Hydraulic
- device,
- Compression
- ,
- Rebound
- ,
- Rear Wheel Travel
- 120 mm (4.7 inches)
- Front Wheel Travel
- 115 mm (4.5 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Red/white
