Back to Bike FinderYears: 2017 · 2016
2017Naked

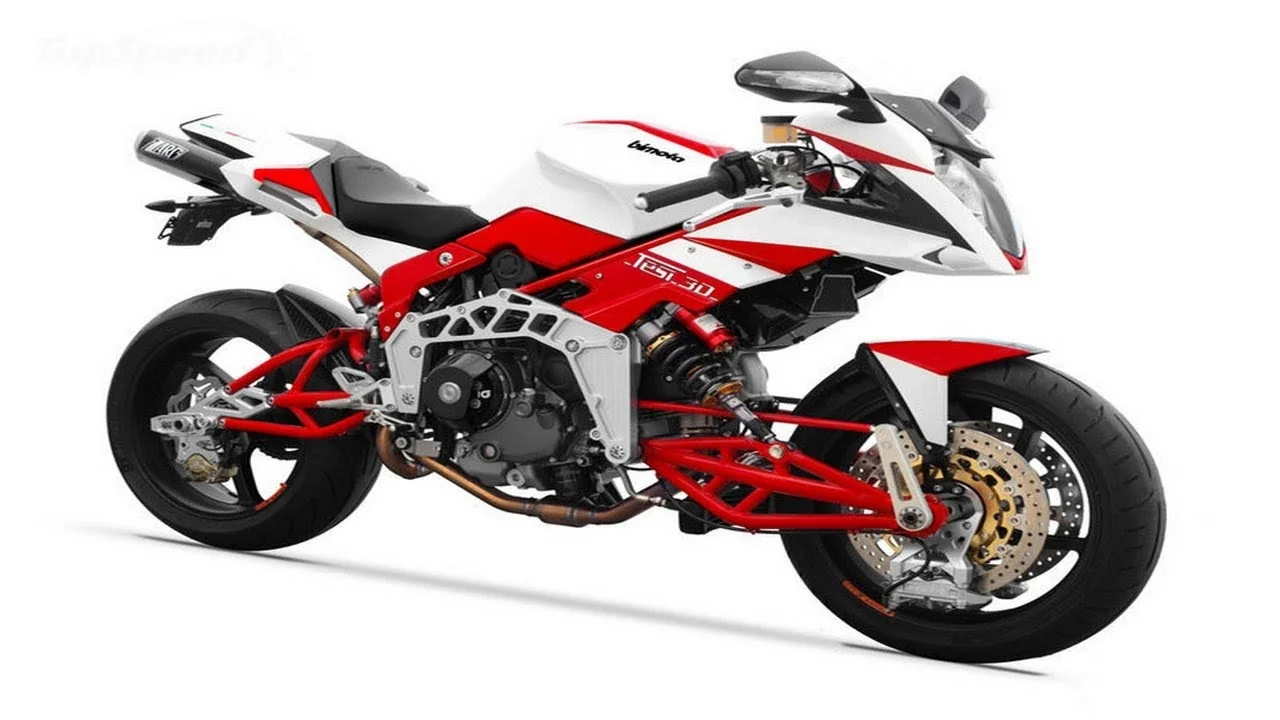

Bimota Tesi 3D Evo
Key specifications
Engine
1078 cc
Power
98 HP
Torque
105 Nm
Weight
167 kg
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. Bremo 4-piston, four separates pads, radial pump
Rear brakes
Single disc. Bremo, 2-piston
Technical details
Source specification data
- Make
- Bimota
- Model
- Tesi 3D Evo
- Category
- Naked bike
- Starter
- Electric
- Comments
- Italian brand.
- Color Options
- White/red
- Power
- 98.00 HP (71.5 kW)) @ 7500 RPM
- Clutch
- Dry Clutch, multi-disc
- Torque
- 105.00 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 5500 RPM
- Gearbox
- 6-speed
- Engine Type
- Ducati L-Twin EVO
- Fuel System
- Injection. Walbro By Bimota
- Bore X Stroke
- 98.0 x 71.5 mm (3.9 x 2.8 inches)
- Compression
- 10.7:1
- Displacement
- 1078.00 ccm (65.78 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- V2, four-stroke
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 167.0 kg (368.2 pounds)
- Seat Height
- 800 mm (31.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Width
- 700 mm (27.6 inches)
- Overall Height
- 1,120 mm (44.1 inches)
- Overall Length
- 2,100 mm (82.7 inches)
- Power Weight Ratio
- 0.5868 HP/kg
- Rake
- 23.0°
- Wheels
- Forged Aluminium Alloy, black 5-spoke
- Rear Tyre
- 180/55-ZR17
- Frame Type
- C
- milled aluminium plates,
- Chrome
- -molybdenum gridframe and carbon fibre
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. Bremo, 2-piston
- Front Brakes
- Double
- disc.
- Bremo
- 4-piston, four separates pads, radial pump
- Rear Suspension
- Extreme Tech
- adjustable traction and compression unit,
- Pre
- -loaded spring
- Front Suspension
- Extreme Tech tension loaded, adj. traction and compression unit
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
White/red
