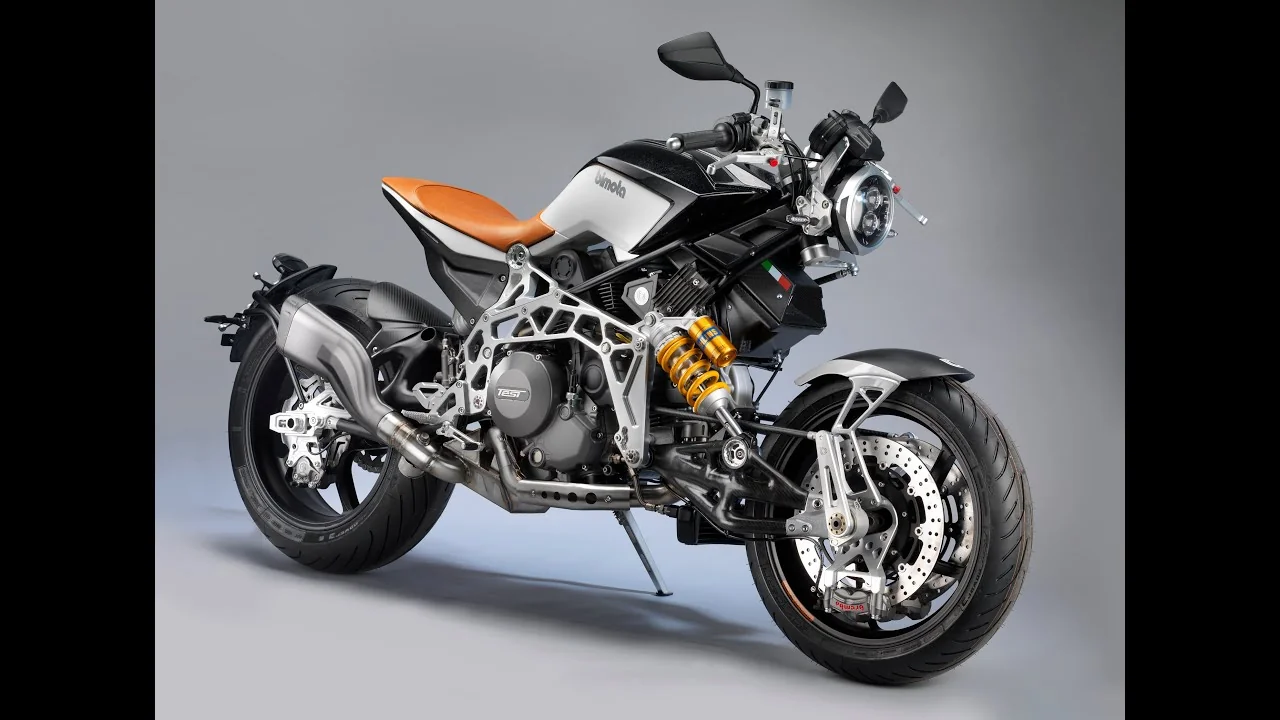

Bimota Tesi 3D RaceCafe
Key specifications
Engine
803 cc
Weight
165 kg
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
6-speed
Seat height
30 mm
Front brakes
Double disc. Brembo 4-piston, four separates pads, radial pump
Rear brakes
Single disc. Brembo, 2-piston
Technical details
Source specification data
- Make
- Bimota
- Model
- Tesi 3D RaceCafe
- Category
- Naked bike
- Starter
- Electric
- Comments
- Italian brand.
- Color Options
- White/black/brown
- Clutch
- Dry Clutch, multi-disc
- Gearbox
- 6-speed
- Engine Type
- Ducati L-Twin
- Fuel System
- Injection. Bimota by Athena/Electronic
- Bore X Stroke
- 88.0 x 66.0 mm (3.5 x 2.6 inches)
- Compression
- 11.1:1
- Displacement
- 803.00 ccm (49.00 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- V2, four-stroke
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 165.0 kg (363.8 pounds)
- Seat Height
- 757 mm (29.8 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Width
- 700 mm (27.6 inches)
- Overall Height
- 1,100 mm (43.3 inches)
- Overall Length
- 2,100 mm (82.7 inches)
- Alternate Seat Height
- 803 mm (31.6 inches) If adjustable, highest setting.
- Wheels
- Forged Aluminium Alloy, black
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Alu
- alloy plates, front and rear swingers in 25
- Mo4
- steel.
- Adjustable
- height +/-23mm
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. Brembo, 2-piston
- Front Brakes
- Double
- disc.
- Brembo
- 4-piston, four separates pads, radial pump
- Rear Suspension
- Öhlins monoshock with adjustable spring preload, compression and rebound, adjustable rear end height +/-14mm
- Front Suspension
- Öhlins monoshock with adjustable spring preload, compression and rebound, adjustable front end height +/-9,5mm
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
White/black/brown
