2010Naked

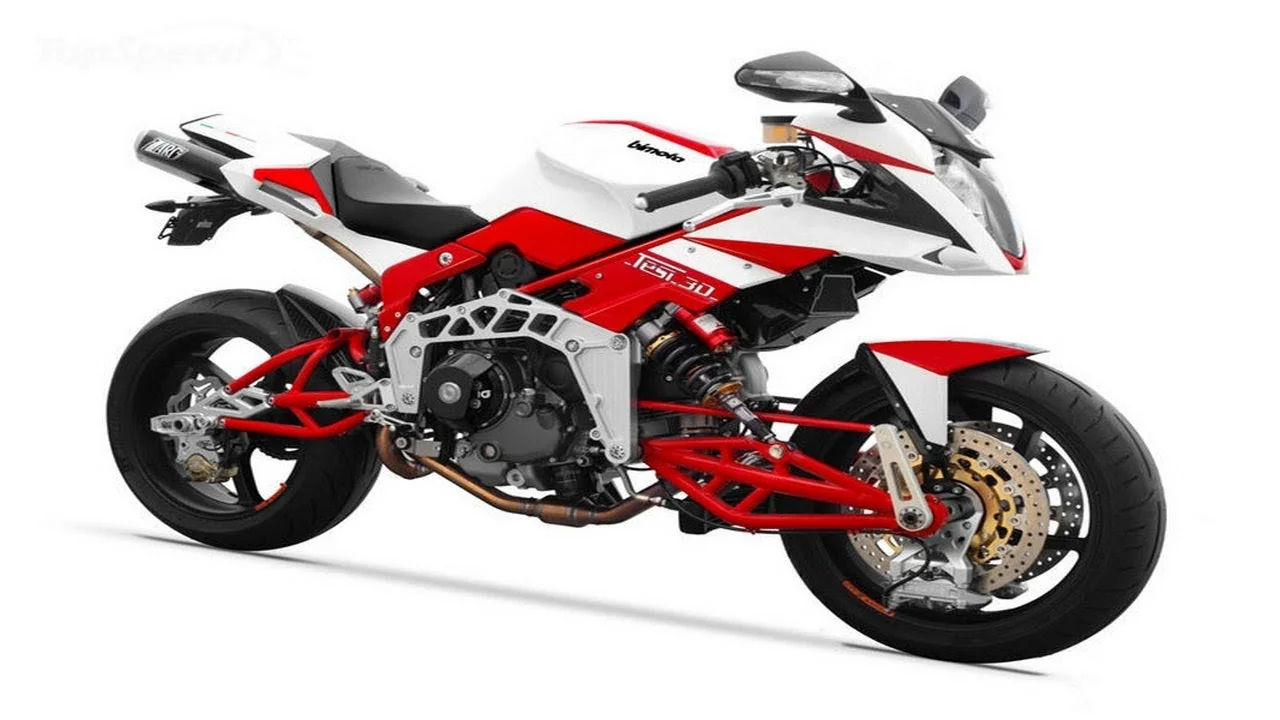

Bimota Tesi 3D
Key specifications
Engine
1079 cc
Weight
168 kg
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. Bremo
Rear brakes
Single disc. bremo
Technical details
Source specification data
- Make
- Bimota
- Model
- Tesi 3D
- Category
- Sport
- Starter
- Electric
- Comments
- Ducati 1100DS engine.
- Color Options
- Red/white, carbon black
- Clutch
- Dry Clutch, multi-disc
- Max Rpm
- 9000
- Gearbox
- 6-speed
- Fuel System
- Injection. Walbro
- Bore X Stroke
- 98.0 x 71.5 mm (3.9 x 2.8 inches)
- Compression
- 10.5:1
- Displacement
- 1079.00 ccm (65.84 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- V2, four-stroke
- Exhaust System
- Euro 3
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 168.0 kg (370.4 pounds)
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Width
- 720 mm (28.3 inches)
- Overall Height
- 1,140 mm (44.9 inches)
- Overall Length
- 2,005 mm (78.9 inches)
- Reserve Fuel Capacity
- 5.00 litres (1.32 gallons)
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Light alloy
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. bremo
- Front Brakes
- Double disc. Bremo
- Rear Suspension
- Extreme Tech Mono Shock fully adjustable,
- Front Suspension
- Monoshock
- ,
- Pull
- -
- Rod Extreme Tech
- , fully adjustable (
- Preload
- -
- External Hydraulic
- device,
- Compression
- ,
- Rebound
- ,
- Rear Wheel Travel
- 120 mm (4.7 inches)
- Front Wheel Travel
- 115 mm (4.5 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Red/whitecarbon black
