Cagiva Mito SP525
2011Sportbike

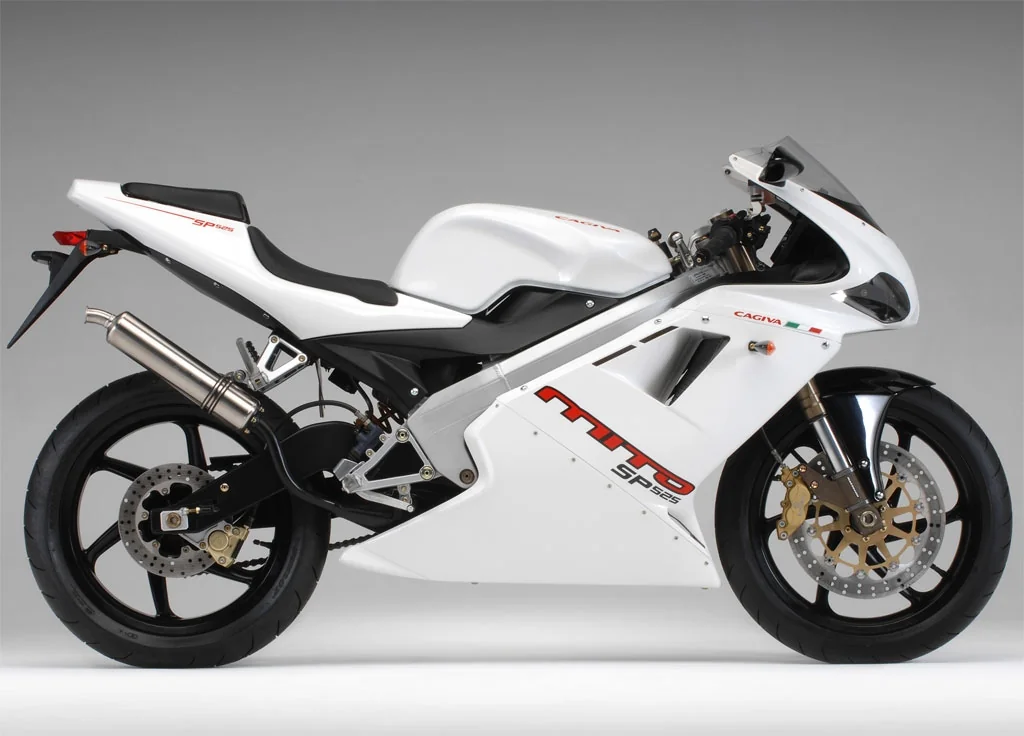

Cagiva Mito SP525

Key specifications

Engine
125 cc
Power
12 HP
Torque
11 Nm
Weight
129 kg
Fuel type
petrol
Fuel capacity
3.7 L
Transmission
6-speed
Seat height
30 mm
Front brakes
Double disc. 4-piston
Rear brakes
Single disc. 2-piston

Overview

Introducing the 2011 Cagiva Mito SP525: A Classic Reimagined The 2011 Cagiva Mito SP525 is an enticing blend of heritage and modern engineering, making it a standout in the sport motorcycle category. With roots tracing back to the iconic Cagiva brand, which has a storied history in racing and performance motorcycles, the Mito SP525 serves as a tribute to the brand’s racing pedigree. Designed for both novice riders and seasoned enthusiasts, this bike caters to those who crave agility and spirited performance without sacrificing everyday usability. Unleashing Performance: The Heart of the Mito At the core of the Mito SP525 lies a robust single-cylinder, two-stroke engine with a displacement of 124.60 ccm. Producing an impressive 12.07 horsepower at 9000 RPM, this engine offers a thrilling ride with a torque of 11.00 Nm at 7500 RPM, delivering quick acceleration and spirited responsiveness. The liquid-cooled powerplant is complemented by a six-speed gearbox, ensuring smooth transitions and making it feel at home on both city streets and winding back roads. The finely tuned carburettor by Dell Ortho and CDI ignition with variable spark advance contribute to a sharp throttle response, making the riding experience exhilarating and engaging. Technology and Features: Built for Enthusiasts The Mito SP525 is equipped with an aluminum Profi frame, which not only enhances its lightweight design but also provides exceptional rigidity for improved handling. The suspension system, featuring upside-down Marzocchi forks in the front and an adjustable rear shock absorber, allows for precise cornering and stability, making it a joy to ride. Stopping power is another highlight, with double disc brakes in the front and a single disc in the rear, ensuring confidence-inspiring braking performance. The motorcycle's aesthetic is equally captivating, available in striking color options like red, white, and black, allowing riders to express their individuality. With a seat height of 760 mm, it caters to a wide range of riders, while its overall weight of just 129 kg ensures nimbleness and agility on the road. **

Pros

    Cons

    • Lightweight and Agile: Weighing only 129 kg, the Mito SP525 is incredibly nimble, making it easy to maneuver through city traffic and winding roads.
    • Excellent Braking Performance: The double disc front brakes provide powerful stopping power, enhancing safety and rider confidence.
    • Heritage and Design: The bike’s design pays homage to Cagiva’s racing roots, offering a classic look that appeals to motorcycle enthusiasts.
    • Limited Power Output: While adequate for city riding, the 12.07 HP may leave some riders wanting more for highway cruising or aggressive riding.
    • Single-Cylinder Engine: The two-stroke engine may require more frequent maintenance compared to four-stroke engines, which can be a drawback for some.
    • Niche Appeal: The sport-oriented design and performance may not cater to all riders, particularly those seeking a more versatile touring motorcycle.

    Technical details

    Source specification data

    Make
    Cagiva
    Model
    Mito SP525
    Category
    Sport
    Starter
    Electric
    Comments
    Cagiva
    says the
    P525
    have the 1 of “125” replaced by a 5 in memory of the
    Cagiva
    500.
    Color Options
    Red, white, red/grey, black
    Power
    12.07 HP (8.8 kW)) @ 9000 RPM
    Clutch
    Multiplate in oil bath
    Torque
    11.00 Nm (1.1 kgf-m or 8.1 ft.lbs) @ 7500 RPM
    Gearbox
    6-speed
    Ignition
    C.D.I. with variable spark advance
    Fuel System
    Carburettor. Dell Ortho
    Bore X Stroke
    50.0 x 50.6 mm (2.0 x 2.0 inches)
    Displacement
    124.60 ccm (7.60 cubic inches)
    Cooling System
    Liquid
    Engine Details
    Single cylinder, two-stroke
    Lubrication System
    Automatic mixer
    Transmission Type Final Drive
    Chain
    Dry Weight
    129.0 kg (284.4 pounds)
    Seat Height
    760 mm (29.9 inches) If adjustable, lowest setting.
    Oil Capacity
    0.80 litres (0.05 quarts)
    Fuel Capacity
    14.00 litres (3.70 gallons)
    Overall Height
    1,070 mm (42.1 inches)
    Overall Length
    1,980 mm (78.0 inches)
    Ground Clearance
    150 mm (5.9 inches)
    Power Weight Ratio
    0.0936 HP/kg
    Rake
    65.0°
    Trail
    98 mm (3.9 inches)
    Rear Tyre
    150/60-ZR17
    Frame Type
    Aluminium Profi frame
    Front Tyre
    110/70-ZR17
    Rear Brakes
    Single disc. 2-piston
    Front Brakes
    Double disc. 4-piston
    Rear Suspension
    Adjustable rebound and damping shock absorber.
    Front Suspension
    Upside-down Marzocchi forks.
    Rear Brakes Diameter
    230 mm (9.1 inches)
    Front Brakes Diameter
    320 mm (12.6 inches)

    Available colors

    Redwhitered/greyblack
