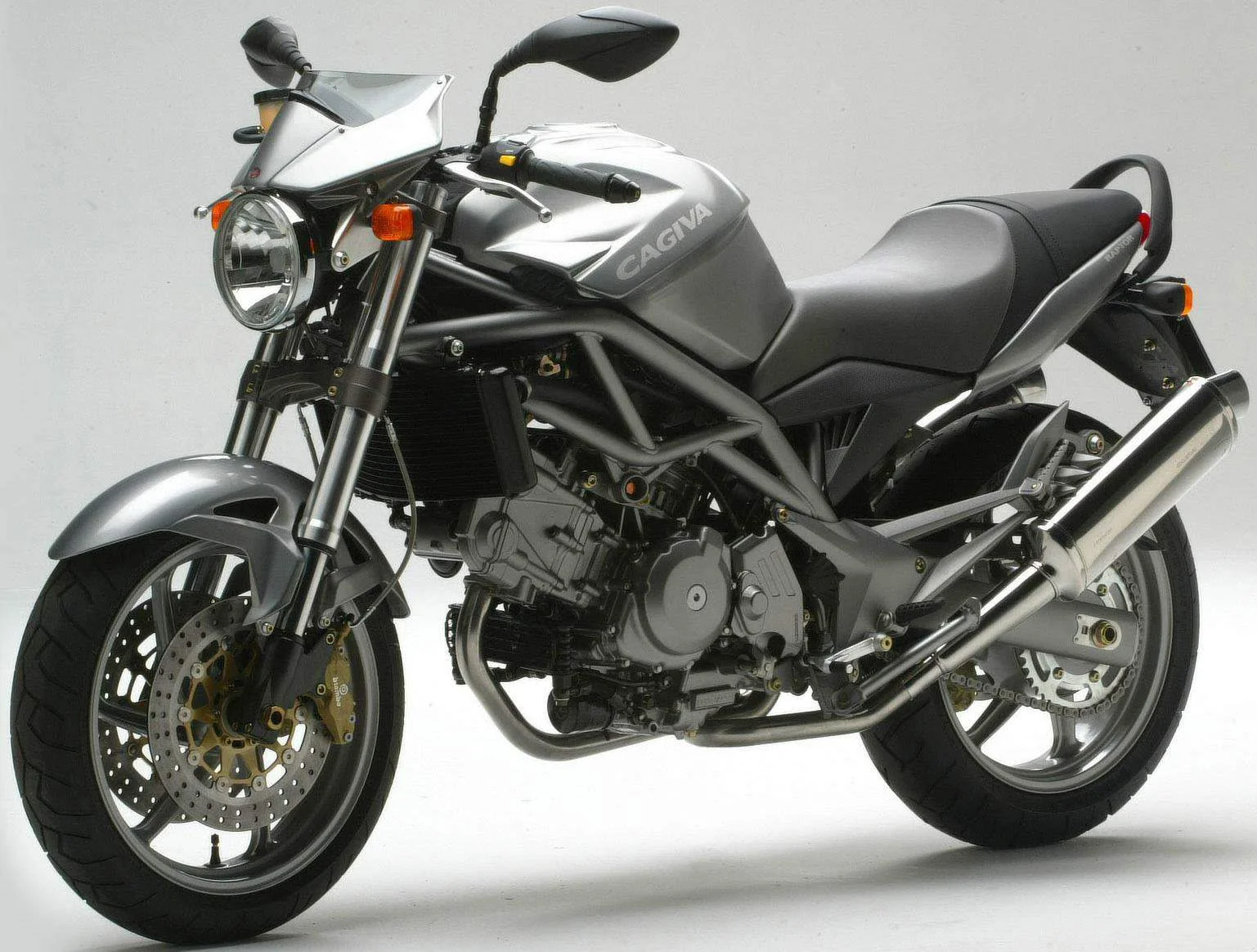

Cagiva Raptor 650 i.e.
2006Naked

Cagiva Raptor 650 i.e.

Key specifications

Engine
644 cc
Power
70 HP
Torque
64 Nm
Weight
180 kg
Fuel type
petrol
Transmission
6-speed
Seat height
31 mm
Front brakes
Double disc
Rear brakes
Single disc

Overview

Introducing the 2006 Cagiva Raptor 650 i.e., a motorcycle that embodies the spirit of naked bikes with its raw design and invigorating performance. Cagiva has carved a niche in the market for riders who crave a spirited ride without the encumbrance of excessive bodywork. The Raptor 650 stands out with its muscular styling and agile handling, appealing to both seasoned motorcyclists and newcomers who appreciate the blend of performance and aesthetics. As a member of the naked bike category, it invites riders to experience the thrill of the open road, allowing them to enjoy every twist and turn with confidence. At the heart of the Raptor 650 i.e. lies a potent 644.05 cc V2 four-stroke engine that churns out a commendable 70 horsepower at 9,000 RPM, paired with a robust torque of 63.5 Nm at 7,400 RPM. This powerhouse provides exhilarating acceleration and a thrilling ride, perfect for both urban commuting and spirited weekend rides. The engine’s 11.5:1 compression ratio, coupled with a six-speed gearbox, ensures smooth gear transitions while maximizing the engine's potential. The liquid cooling system maintains optimal temperatures, allowing the rider to push the limits without worrying about overheating. The combination of power-to-weight ratio at 0.3889 HP/kg and agile handling makes the Raptor a nimble companion on curvy roads. The Raptor 650 i.e. boasts several key features that enhance both safety and comfort. Its high-strength steel tubular frame not only contributes to the bike's robust construction but also provides excellent torsional rigidity, enhancing stability at speed. The suspension setup includes an upside-down telescopic hydraulic fork at the front, with 120 mm of travel, and a progressive shock absorber at the rear, which is adjustable for spring preload. This configuration allows for a comfortable yet responsive ride, whether navigating city streets or tackling more challenging terrains. Safety is not compromised, thanks to the double disc front brakes and a single disc rear brake, ensuring effective stopping power. **

Pros

  • Strong Engine Performance: The V2 engine delivers impressive power and torque, resulting in an exhilarating riding experience.
  • Agile Handling: Lightweight construction and well-tuned suspension provide excellent maneuverability and stability.
  • Striking Design: The naked bike aesthetic coupled with various color options like Rosso Cagiva and Bat Black appeals to style-conscious riders.

Cons

  • Limited Wind Protection: The minimalist design offers little in the way of wind protection, which may be uncomfortable on long highway rides.
  • Seat Height: At 775 mm, the seat height may be a stretch for shorter riders, making it less accessible for everyone.
  • Availability of Parts: As a niche motorcycle, finding specific parts and accessories can be more challenging compared to mainstream brands.

Technical details

Source specification data

Make
Cagiva
Model
Raptor 650 i.e.
Category
Naked bike
Starter
Electric
Color Options
Steel
,
Rosso Cagiva
,
Bat Black
,
Power
70.00 HP (51.1 kW)) @ 9000 RPM
Torque
63.50 Nm (6.5 kgf-m or 46.8 ft.lbs) @ 7400 RPM
Gearbox
6-speed
Bore X Stroke
81.0 x 62.2 mm (3.2 x 2.5 inches)
Compression
11.5:1
Displacement
644.05 ccm (39.30 cubic inches)
Cooling System
Liquid
Engine Details
V2, four-stroke
Valves Per Cylinder
2
Dry Weight
180.0 kg (396.8 pounds)
Seat Height
775 mm (30.5 inches) If adjustable, lowest setting.
Overall Length
2,110 mm (83.1 inches)
Ground Clearance
165 mm (6.5 inches)
Power Weight Ratio
0.3889 HP/kg
Frame Type
High strength steel tubular frame
Rear Brakes
Single disc
Front Brakes
Double disc
Rear Suspension
Progressive shock absorber with adjustable spring preload
Front Suspension
Upside down telescopic hydraulic fork
Front Wheel Travel
120 mm (4.7 inches)
Rear Brakes Diameter
220 mm (8.7 inches)
Front Brakes Diameter
298 mm (11.7 inches)

Available colors

SteelRosso CagivaBat BlackBlue Marine
