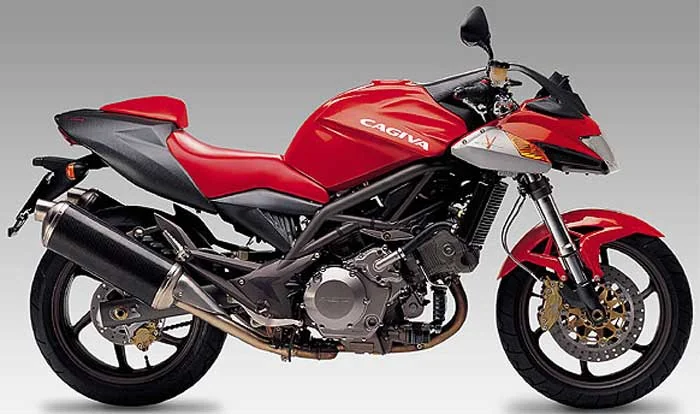

Cagiva V Raptor 1000
2005Naked

Cagiva V Raptor 1000

Key specifications

Engine
995 cc
Weight
197 kg
Fuel type
petrol
Fuel capacity
4.0 L
Seat height
32 mm
Front brakes
Single disc. Bremo. 4-piston calipers
Rear brakes
Single disc. bremo

Overview

Introducing the 2005 Cagiva V Raptor 1000, a striking naked bike that effortlessly combines aggressive styling with spirited performance. Emerging from a legacy of Italian craftsmanship, the V Raptor is positioned as a bold contender in the naked bike category, appealing to riders who crave a thrilling ride coupled with a distinctive aesthetic. With its unique blend of power and minimalism, the V Raptor showcases Cagiva's commitment to delivering a motorcycle that is as much a visual statement as it is a mechanical marvel. At the heart of the V Raptor 1000 lies a formidable V2, four-stroke engine with a displacement of 994.76 ccm. This powerhouse is engineered to deliver a robust 11.3:1 compression ratio, ensuring an exhilarating ride every time the throttle is twisted. The generously sized bore and stroke—97.8 mm and 65.8 mm respectively—contribute to a torque-rich delivery that thrives at any RPM. Riders will appreciate the liquid cooling system that maintains optimal temperatures even during spirited rides, while the electronic ignition system provides seamless performance. Whether navigating city streets or carving through twisty roads, the V Raptor’s nimble handling and responsive throttle make it a joy to ride. The 2005 V Raptor 1000 is not just about raw power; it’s equipped with a host of features designed for comfort, performance, and safety. The high-strength steel tubular frame provides excellent rigidity while keeping the weight down to 197 kg (434.3 pounds), enhancing agility without sacrificing stability. The suspension setup—comprising an upside-down telescopic hydraulic fork at the front and a progressive single shock absorber at the rear—is designed to deliver a smooth ride, with 138 mm of front travel to absorb bumps and imperfections in the road. With 15.17 liters of fuel capacity and a ground clearance of 175 mm, the V Raptor is engineered for longer rides while retaining a confident stance on the road. **

Pros

  • Powerful V2 Engine: Delivers thrilling acceleration and a torque-rich ride, ideal for both city commuting and spirited country rides.
  • Lightweight and Agile: With a weight of just 197 kg, the bike offers exceptional maneuverability and control, making it perfect for urban environments.
  • Distinctive Design: The naked bike aesthetic is not only visually striking but also functional, providing a commanding riding position and excellent visibility.

Cons

  • Limited Wind Protection: The naked design may expose riders to wind blast at higher speeds, which could be uncomfortable for long-distance touring.
  • Seat Height: At 805 mm (31.7 inches), it may be challenging for shorter riders to comfortably reach the ground.
  • Fuel Capacity: With a 15.17-liter tank, fuel range may be limited compared to sport-touring bikes, necessitating more frequent stops on longer journeys.

Technical details

Source specification data

Make
Cagiva
Model
V Raptor 1000
Category
Naked bike
Ignition
electronic
Bore X Stroke
97.8 x 65.8 mm (3.9 x 2.6 inches)
Compression
11.3:1
Displacement
994.76 ccm (60.70 cubic inches)
Cooling System
Liquid
Engine Details
V2, four-stroke
Dry Weight
197.0 kg (434.3 pounds)
Seat Height
805 mm (31.7 inches) If adjustable, lowest setting.
Fuel Capacity
15.17 litres (4.01 gallons)
Overall Width
820 mm (32.3 inches)
Overall Height
1,070 mm (42.1 inches)
Overall Length
2,104 mm (82.8 inches)
Ground Clearance
175 mm (6.9 inches)
Trail
102 mm (4.0 inches)
Frame Type
High strength steel tubular frame
Rear Brakes
Single disc. bremo
Front Brakes
Single disc. Bremo. 4-piston calipers
Rear Suspension
Progressive, single shock absorber with adjustable spring preload
Front Suspension
Upside down telscopic hydraulic fork
Front Wheel Travel
138 mm (5.4 inches)
Rear Brakes Diameter
298 mm (11.7 inches)
Front Brakes Diameter
298 mm (11.7 inches)
