CCM Foggy S Edition Spitfire
2020Naked

CCM Foggy S Edition Spitfire

Key specifications

Engine
600 cc
Power
62 HP
Torque
66 Nm
Weight
142 kg
Fuel type
petrol
Fuel capacity
3.7 L
Transmission
6-speed
Seat height
33 mm
Front brakes
Single disc
Rear brakes
Single disc

Overview

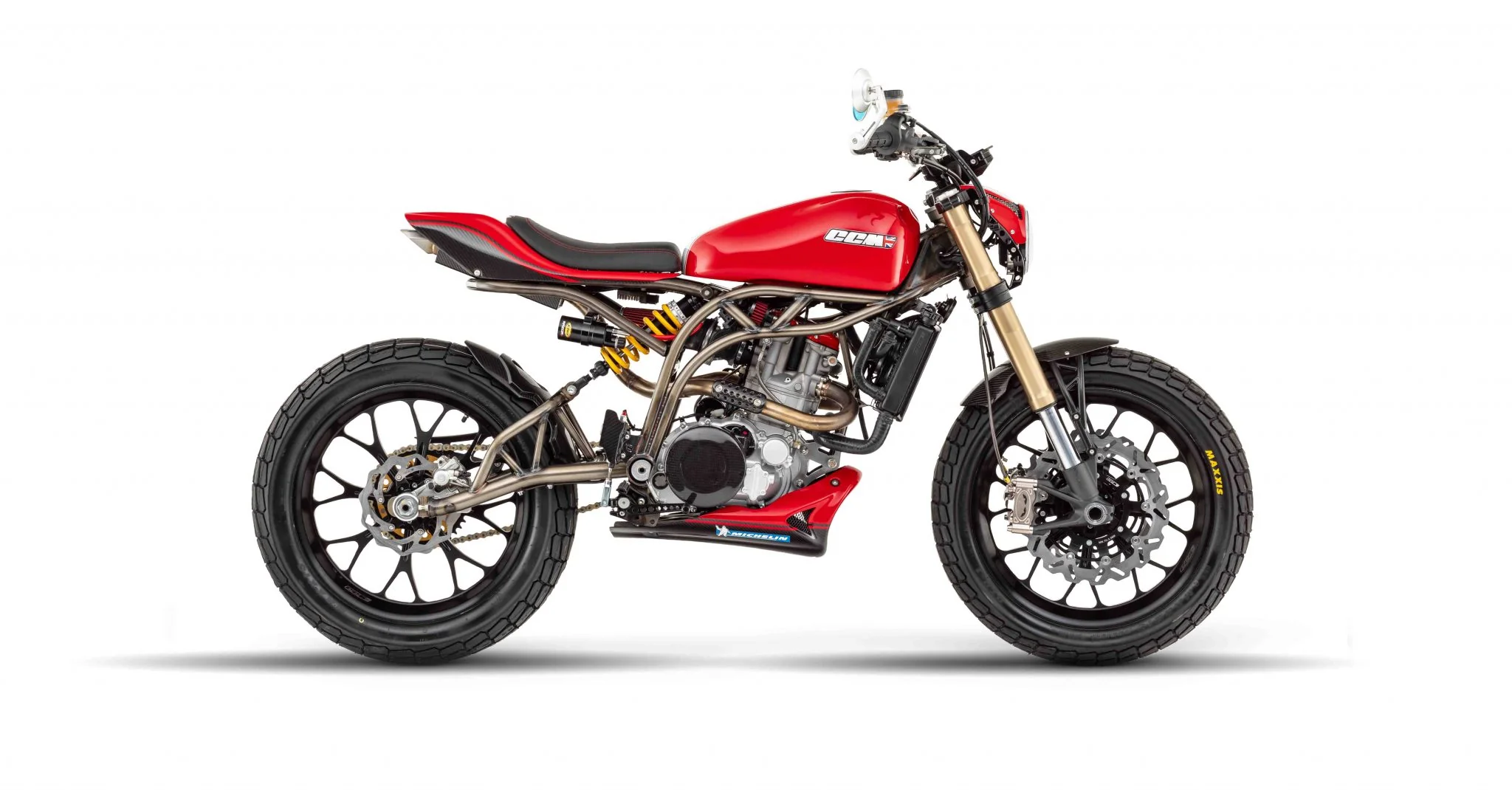

Introducing the 2020 CCM Foggy S Edition Spitfire: a vivid embodiment of British craftsmanship and racing heritage. This naked bike, designed in collaboration with legendary racer Carl Fogarty, is not just a motorcycle; it’s a statement. Positioned in the premium segment of the motorcycle market, the Foggy S Edition Spitfire caters to discerning riders who seek a blend of performance, style, and exclusivity. With its striking red finish and minimalist aesthetics, this machine is as much a work of art as it is a thrilling ride, perfect for those who appreciate the finer elements of motorcycling culture. At the heart of the Foggy S Edition Spitfire lies a robust 600cc single-cylinder, four-stroke engine that produces 62 horsepower and a torque output of 66 Nm at 5,500 RPM. This potent powerplant, coupled with a 6-speed gearbox and a lightweight chassis weighing just 142 kg (313 pounds), results in an exhilarating power-to-weight ratio of 0.4366 HP/kg. Riders will revel in the smooth acceleration and distinctive engine character as they navigate twisting roads or city streets. With its advanced Mikuni D45 fuel injection system and liquid cooling, this motorcycle ensures peak performance while maintaining a respectable fuel consumption of 4.20 liters per 100 km, making it a practical choice for spirited rides and daily commutes alike. The Foggy S Edition Spitfire is not just about raw power; it’s also equipped with a suite of features that enhance the riding experience. The high-strength steel frame is hand TIG welded, providing both durability and agility, while the adjustable telescopic front forks and single shock rear suspension offer tailored handling that can be adapted to the rider's preferences. Stopping power comes from reliable single disc brakes both front (320 mm) and rear (240 mm), ensuring confidence-inspiring deceleration. With an electric starter and an adjustable seat height of 825 mm (32.5 inches), this motorcycle is designed with user-friendliness and comfort in mind, ensuring that both veteran riders and newcomers can enjoy the thrill of riding. **

Pros

  • Exceptional Power-to-Weight Ratio: The lightweight design combined with a potent engine offers exhilarating performance.
  • Customizable Ride Experience: Adjustable suspension allows riders to fine-tune their setup for comfort or sportiness.
  • Distinctive Design with Heritage: Collaborating with Carl Fogarty gives this motorcycle a unique racing pedigree, making it a standout in any crowd.

Cons

  • Limited Fuel Capacity: With a 14-liter tank, long-distance touring may require more frequent stops for refueling.
  • Single Cylinder Vibe: While it provides a unique character, some riders may prefer the smoothness of multi-cylinder engines.
  • Minimal Weather Protection: The naked bike design exposes riders to the elements, which may not be ideal for all-weather riding.

Technical details

Source specification data

Make
CCM
Model
Foggy S Edition Spitfire
Category
Naked bike
Starter
Electric
Color Options
Red
Power
62.00 HP (45.3 kW))
Clutch
Multiple-disc, wet, Hydraulic control
Torque
66.00 Nm (6.7 kgf-m or 48.7 ft.lbs) @ 5500 RPM
Gearbox
6-speed
Fuel System
Injection. Mikuni D45
Bore X Stroke
100.0 x 76.5 mm (3.9 x 3.0 inches)
Compression
12.0:1
Displacement
600.00 ccm (36.61 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, four-stroke
Fuel Consumption
4.20 litres/100 km (23.8 km/l or 56.00 mpg)
Greenhouse Gases
O2
g/km. (
O2
-
Carbon
dioxide emission)
Transmission Type Final Drive
Chain
Dry Weight
142.0 kg (313.1 pounds)
Seat Height
825 mm (32.5 inches) If adjustable, lowest setting.
Oil Capacity
1.80 litres (0.12 quarts)
Fuel Capacity
14.00 litres (3.70 gallons)
Overall Height
1,060 mm (41.7 inches)
Overall Length
2,040 mm (80.3 inches)
Power Weight Ratio
0.4366 HP/kg
Rake
26.0°
Trail
118 mm (4.6 inches)
Wheels
Avon AV72 Cobra – White wall tyres
Rear Tyre
150/80-B16
Frame Type
High strength steel, Hand Tig welded
Front Tyre
MT90-B16
Rear Brakes
Single disc
Front Brakes
Single disc
Rear Suspension
Single shock, adjustable
Front Suspension
Telescopic fork, adjsutable
Rear Wheel Travel
130 mm (5.1 inches)
Front Wheel Travel
130 mm (5.1 inches)
Rear Brakes Diameter
240 mm (9.4 inches)
Front Brakes Diameter
320 mm (12.6 inches)

Available colors

Red
