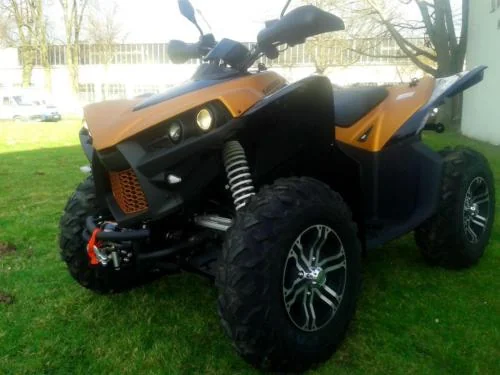

Cectek Kingcobra ixd T5
2014ATV

Cectek Kingcobra ixd T5

Key specifications

Engine
496 cc
Power
40 HP
Torque
44 Nm
Weight
300 kg
Fuel type
petrol
Fuel capacity
5.0 L
Transmission
Automatic
Seat height
36 mm
Front brakes
Double disc. Hydraulic
Rear brakes
Double disc. Hydraulic

Overview

Introducing the 2014 Cectek Kingcobra ixd T5, a standout model in the ATV segment that combines robust engineering with impressive performance. Designed for both recreational riders and those who crave adventure, the Kingcobra ixd T5 is an embodiment of Cectek's commitment to quality and innovation. With its striking yellow finish and rugged aesthetics, this ATV not only captures attention but also promises reliability on various terrains. Whether you're navigating through trails or tackling challenging off-road landscapes, the Kingcobra ixd T5 is engineered to deliver a thrilling experience. At the heart of the Kingcobra ixd T5 lies a powerful 496.20 ccm single-cylinder, four-stroke engine that generates a robust 40.23 horsepower at 6,500 RPM. With a torque output of 44 Nm at 4,500 RPM, this machine is built for spirited rides and smooth acceleration. The automatic gearbox and the non-centrifugal clutch CVT system provide seamless transitions, making it user-friendly for riders of all skill levels. Thanks to its liquid cooling system and closed-loop electronic fuel injection, the engine maintains optimal performance and efficiency, ensuring that you can conquer any terrain with confidence. The Kingcobra ixd T5 is equipped with advanced features that enhance both comfort and safety. The independent double A-arm suspension system—featuring forged aluminum upper arms—works harmoniously with its hydraulic double-disc brakes for reliable stopping power, giving you peace of mind as you traverse rugged paths. With a generous front and rear travel of 134 mm and 144 mm respectively, riders can expect a smooth ride that absorbs bumps and imperfections in the terrain. The spacious 19-liter fuel tank offers ample range for extended excursions, while a ground clearance of 300 mm allows for confident navigation over obstacles, making it an ideal companion for adventure seekers. **

Pros

  • Powerful Engine: The 496.20 ccm engine delivers impressive horsepower and torque, ensuring exhilarating performance.
  • User-Friendly Gearbox: The automatic transmission with a CVT system provides smooth acceleration and ease of use for riders of all experience levels.
  • Durable Suspension: The independent double A-arm suspension system contributes to a comfortable ride and excellent handling on rough terrains.

Cons

  • Weight: At 300 kg, the Kingcobra ixd T5 can be a bit heavy to maneuver in tight spaces or for inexperienced riders.
  • Seat Height: With a seat height of 916 mm, it may not be suitable for shorter riders or those seeking a lower center of gravity.
  • Limited Color Options: While the vibrant yellow is eye-catching, the lack of alternative color choices may not appeal to all riders' preferences.

Technical details

Source specification data

Make
Cectek
Model
Kingcobra ixd T5
Category
ATV
Light
4 head lights
Starter
Electric
Color Options
Yellow
Carrying Capacity
150 kg towing capacity
Power
40.23 HP (29.4 kW)) @ 6500 RPM
Clutch
Non
-centrifugal clutch
T
system with engine braking function
Max Rpm
7500
Torque
44.00 Nm (4.5 kgf-m or 32.5 ft.lbs) @ 4500 RPM
Gearbox
Automatic
Driveline
Park
,
Reverse
,
Neuter
,
High
,
Low
, and 2/4
D
gears inside the crankcase
Fuel System
Injection
.
Close
loop electronics fuel injection (
I
)
Bore X Stroke
90.0 x 78.0 mm (3.5 x 3.1 inches)
Compression
10.1:1
Displacement
496.20 ccm (30.28 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, four-stroke
Lubrication System
Wet sump
Valves Per Cylinder
4
Transmission Type Final Drive
Belt
Dry Weight
300.0 kg (661.4 pounds)
Seat Height
916 mm (36.1 inches) If adjustable, lowest setting.
Fuel Capacity
19.00 litres (5.02 gallons)
Overall Width
1,241 mm (48.9 inches)
Overall Height
1,251 mm (49.3 inches)
Overall Length
2,016 mm (79.4 inches)
Ground Clearance
300 mm (11.8 inches)
Power Weight Ratio
0.1341 HP/kg
Seat
2-passenger seat
Wheels
Cast aluminum rim with low profile highway tires
Rear Tyre
25/10-12
Front Tyre
25/8-12
Rear Brakes
Double disc. Hydraulic
Front Brakes
Double disc. Hydraulic
Rear Suspension
Independent
, double
A
-arm, forged aluminium upper arm
Front Suspension
Independent
, double
A
-arm, forged aluminium upper arm
Rear Wheel Travel
144 mm (5.7 inches)
Front Wheel Travel
134 mm (5.3 inches)
Rear Brakes Diameter
200 mm (7.9 inches)
Front Brakes Diameter
200 mm (7.9 inches)

Available colors

Yellow
