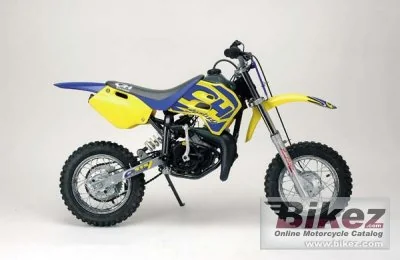

CH Racing CH 515 Basic
2009Minibike

CH Racing CH 515 Basic

Key specifications

Engine
50 cc
Power
4 HP
Weight
40 kg
Fuel type
petrol
Fuel capacity
0.7 L
Seat height
29 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)

Overview

Introducing the 2009 CH Racing CH 515 Basic, a spirited minibike-cross designed specifically for younger riders aged 8 to 12. This compact motorcycle is engineered to provide a thrilling introduction to off-road riding, striking a perfect balance between safety and performance. With its lightweight frame and nimble handling, the CH 515 Basic is ideal for budding motocross enthusiasts looking to develop their skills in a controlled environment. It embodies CH Racing’s commitment to fostering the next generation of riders while ensuring an exhilarating experience on dirt tracks and trails. At the heart of the CH 515 Basic is a 49.70 cc single-cylinder, two-stroke engine that delivers an impressive 3.50 horsepower. This air-cooled gem is designed for easy handling and responsiveness, making it an ideal choice for younger riders still mastering their skills. The carburettor fuel system ensures smooth throttle response, allowing for confident acceleration out of corners. Coupled with a lightweight chassis that weighs just 40 kg (88.2 lbs), the power-to-weight ratio of 0.0875 HP/kg guarantees a lively ride that instills confidence without overwhelming its rider. The mechanical front fork and single rear shock absorber provide a comfortable yet controlled ride, allowing young riders to tackle obstacles and bumps with ease. The CH 515 Basic is packed with thoughtful features that enhance both safety and riding enjoyment. The sturdy steel frame is complemented by a reliable braking system, featuring a 175 mm single disc in the front and a dependable drum brake in the rear, ensuring reliable stopping power when needed. With a seat height of 735 mm (28.9 inches), this minibike is accessible to its intended audience, making it easy for young riders to mount and dismount. The kick starter ensures simplicity and reliability, while the 2.80-litre fuel capacity offers enough range for a fun day of riding without frequent stops. **

Pros

  • Lightweight Design: At just 40 kg, the CH 515 Basic is easy for young riders to manage, promoting confidence and control.
  • Powerful Performance: The 49.70 cc two-stroke engine provides sufficient power for an exhilarating ride, perfect for developing skills.
  • Safety Features: Equipped with a reliable braking system and a stable chassis, the bike prioritizes safety for young riders.

Cons

  • Limited Power Range: While perfect for beginners, the engine's output may feel underpowered for more advanced young riders seeking speed.
  • Basic Suspension: The mechanical fork and single shock might not absorb larger bumps as effectively as more advanced suspension systems on higher-end models.
  • Small Fuel Tank: The 2.80-litre fuel capacity may require frequent refueling during extended riding sessions, which could be inconvenient.

Technical details

Source specification data

Make
CH Racing
Model
CH 515 Basic
Category
Minibike-cross
Starter
Kick
Comments
Intended for children 8 to 12 years old.
Power
3.50 HP (2.6 kW))
Fuel System
Carburettor
Displacement
49.70 ccm (3.03 cubic inches)
Cooling System
Air
Engine Details
Single cylinder, two-stroke
Transmission Type Final Drive
Chain
Dry Weight
40.0 kg (88.2 pounds)
Seat Height
735 mm (28.9 inches) If adjustable, lowest setting.
Fuel Capacity
2.80 litres (0.74 gallons)
Overall Width
630 mm (24.8 inches)
Overall Height
940 mm (37.0 inches)
Overall Length
1,500 mm (59.1 inches)
Ground Clearance
280 mm (11.0 inches)
Power Weight Ratio
0.0875 HP/kg
Rear Tyre
3.00-12
Frame Type
Steel
Front Tyre
2.50-14
Rear Brakes
Expanding brake (drum brake)
Front Brakes
Single disc
Rear Suspension
Single shock absorber
Front Suspension
Mechanical fork
Front Brakes Diameter
175 mm (6.9 inches)
