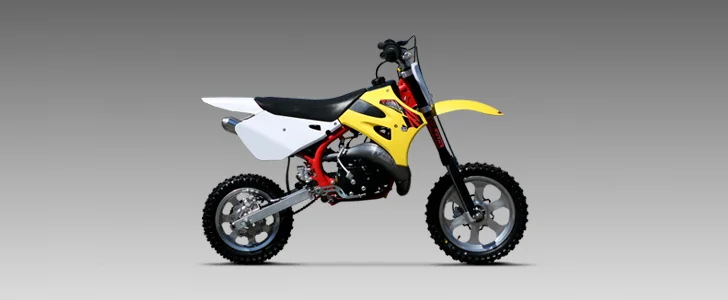

Cobra CX50 BW
Key specifications
Overview
Introducing the 2013 Cobra CX50 BW, a dynamic minibike-cross machine designed for young riders and aspiring motocross champions. With its impressive blend of lightweight construction, agile handling, and robust powertrain, the CX50 BW stands out in a competitive market, appealing to both novice and experienced riders eager to conquer the dirt track. This Spanish-made minibike embodies the spirit of competition and fun, making it a perfect entry point for youngsters looking to develop their skills in the exhilarating world of motocross. At the heart of the CX50 BW is a peppy 50cc single-cylinder, two-stroke engine that delivers spirited performance while keeping things manageable for younger riders. With a bore and stroke of 39.0 x 41.7 mm, this compact powerhouse is tuned for responsive throttle response and thrilling acceleration. The liquid cooling system ensures optimal engine performance, even during extended rides, while the 19 mm carburettor fine-tunes fuel delivery for a smooth powerband. Riders will appreciate the chain final drive that provides direct power transfer, allowing for confident cornering and acceleration on the track. The engineering prowess of the CX50 BW is evident in its advanced chassis and suspension setup. Built upon a Twin Spar Oval HSLA frame, this minibike offers a lightweight yet sturdy foundation, contributing to its nimble handling. The front suspension, featuring a CARD VSTC 30mm USD fork, provides 210 mm (8.3 inches) of travel, soaking up bumps and obstacles with ease. Meanwhile, the rear suspension, equipped with a CARD piggyback shock, allows for customizable adjustments in rebound and compression, ensuring optimal performance tailored to individual rider preferences. With hydraulic disc brakes at both the front (160 mm) and rear (140 mm), the CX50 BW delivers reliable stopping power, crucial for maintaining control on the track. **
Pros
- Lightweight and agile, making it easy for young riders to handle and maneuver.
- Powerful and responsive 50cc two-stroke engine delivers excellent acceleration and performance.
- High-quality suspension components allow for fine-tuning and superior ride comfort on various terrains.
Cons
- Limited power output may not satisfy more experienced riders seeking higher performance.
- Kick starter may be inconvenient for some riders accustomed to electric start systems.
- Seat height at 680 mm (26.8 inches) may be too tall for shorter riders, limiting accessibility for all potential users.
Technical details
Source specification data
- Make
- Cobra
- Model
- CX50 BW
- Category
- Minibike-cross
- Starter
- Kick
- Comments
- Spanish bike.
- Color Options
- Yellow/red/black/white
- Clutch
- Cobra 4G x 3-Shoe
- Driveline
- Patented Cobra Friction Driv
- Engine Type
- Case Reed / V-Force® Reed Valve
- Fuel System
- Carburettor. 19 mm
- Bore X Stroke
- 39.0 x 41.7 mm (1.5 x 1.6 inches)
- Displacement
- 50.00 ccm (3.05 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, two-stroke
- Transmission Type Final Drive
- Chain
- Dry Weight
- 41.0 kg (90.4 pounds)
- Seat Height
- 680 mm (26.8 inches) If adjustable, lowest setting.
- Ground Clearance
- 245 mm (9.6 inches)
- Wheels
- Spoke wheels
- Rear Tyre
- 2.75-12
- Frame Type
- Twin Spar Oval HSLA
- Front Tyre
- 60/100-14
- Rear Brakes
- Single disc. Hydraulic
- Front Brakes
- Single disc. Hydraulic
- Rear Suspension
- CARD piggyback rear shock with adjustable rebound, adjustable high speed compression, and adjustable low speed compression
- Front Suspension
- CARD VSTC 30mm USD
- Rear Wheel Travel
- 248 mm (9.8 inches)
- Front Wheel Travel
- 210 mm (8.3 inches)
- Rear Brakes Diameter
- 140 mm (5.5 inches)
- Front Brakes Diameter
- 160 mm (6.3 inches)
