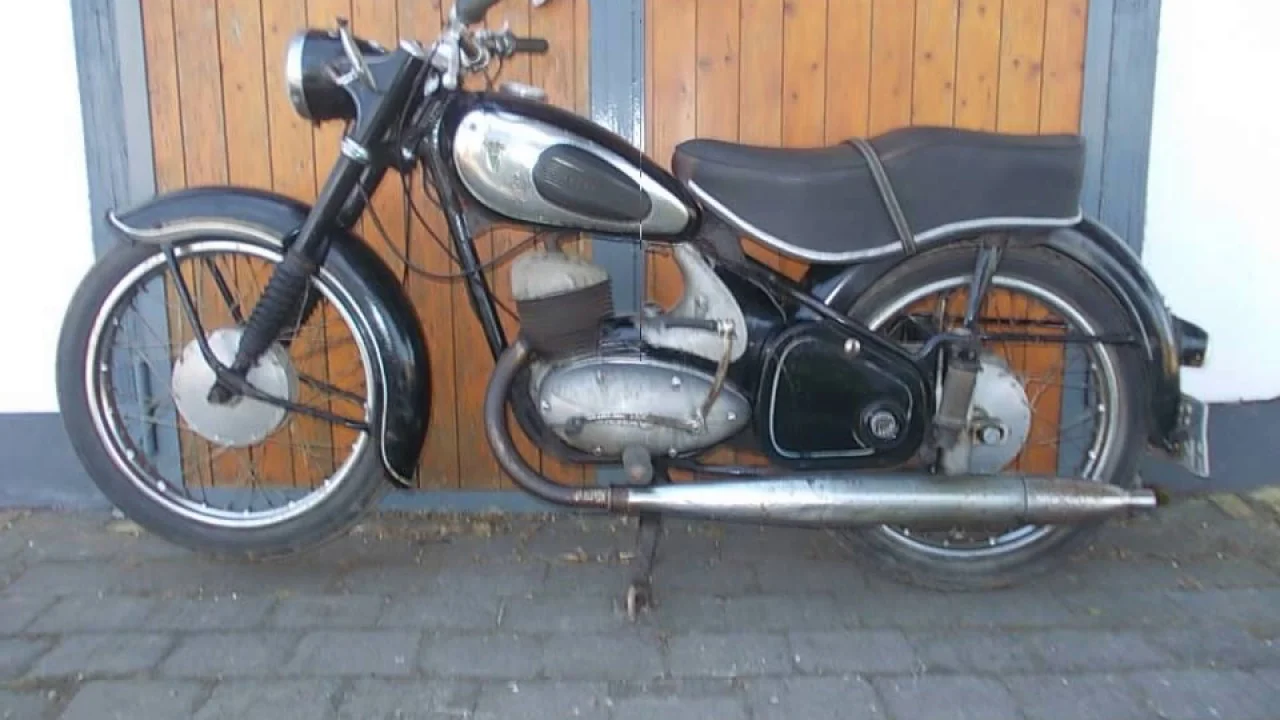

DKW RT 175 W
1950Sportbike

DKW RT 175 W

Key specifications

Engine
123 cc
Weight
83 kg
Fuel type
petrol
Fuel capacity
2.5 L
Transmission
3-speed
Seat height
26 mm
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)

Overview

Introducing the 1950 DKW RT 175 W: A Classic Sport Bike with Timeless Appeal The 1950 DKW RT 175 W is a remarkable motorcycle that captures the essence of post-war engineering and design. Positioned firmly in the sport category, this bike was designed for enthusiasts who craved performance and style without compromising on practicality. With its distinctive lines and lightweight build, the RT 175 W was a game-changer in the early 1950s, appealing to a generation eager to embrace freedom on two wheels. DKW, known for its innovative spirit, crafted this motorcycle to deliver both agility and charm to riders who wanted a reliable companion for everyday journeys or spirited weekend rides. At the heart of the RT 175 W lies a nimble single-cylinder, two-stroke engine with a displacement of 123.20 ccm. This engine, coupled with a 3-speed gearbox, provides a thrilling ride with a top speed of 75 km/h (46.6 mph). The unique bore and stroke dimensions of 58.0 x 58.0 mm ensure a balanced power delivery, making it an exciting ride for both novice and experienced riders alike. The air-cooled engine, paired with a Bing carburettor, offers a responsive throttle and a delightful sound that adds to the overall experience. With a lightweight frame weighing just 83 kg (183 lbs), the RT 175 W allows for easy maneuverability, making it perfect for navigating urban streets or winding country roads with a sense of confidence and control. The DKW RT 175 W is equipped with several key features that showcase the ingenuity of its time. The telescopic front suspension provides a smooth ride over rough terrains, while the expanding drum brakes on both the front and rear ensure reliable stopping power. With a fuel capacity of 9.50 liters (2.51 gallons), riders can enjoy longer journeys without the constant worry of refueling. The seat height of 660 mm (26 inches) makes it accessible for a wide range of riders, allowing for a comfortable riding position that encourages long-distance travel. Overall, the combination of its technical features and spirited design makes the RT 175 W a delightful piece of motorcycle history. **

Pros

  • Lightweight and agile, making it easy to handle for riders of all skill levels.
  • Classic design with vintage charm that appeals to collectors and enthusiasts alike.
  • Reliable performance with an efficient two-stroke engine and responsive throttle.

Cons

  • Limited top speed may not satisfy those seeking high-performance capabilities.
  • Drum brakes, while effective for their time, may feel less responsive compared to modern disc brakes.
  • Lack of rear suspension may result in a rougher ride on uneven surfaces.

Technical details

Source specification data

Make
DKW
Model
RT 175 W
Category
Sport
Gearbox
3-speed
Top Speed
75.0 km/h (46.6 mph)
Fuel System
Carburettor. Bing
Bore X Stroke
58.0 x 58.0 mm (2.3 x 2.3 inches)
Displacement
123.20 ccm (7.52 cubic inches)
Cooling System
Air
Engine Details
Single cylinder, two-stroke
Transmission Type Final Drive
Chain
Dry Weight
83.0 kg (183.0 pounds)
Seat Height
660 mm (26.0 inches) If adjustable, lowest setting.
Fuel Capacity
9.50 litres (2.51 gallons)
Overall Width
660 mm (26.0 inches)
Overall Height
880 mm (34.6 inches)
Overall Length
1,959 mm (77.1 inches)
Seat
Single
Wheels
Spoked
Rear Tyre
2.75-19
Front Tyre
2.75-19
Rear Brakes
Expanding brake (drum brake)
Front Brakes
Expanding brake (drum brake)
Rear Suspension
None
Front Suspension
Telescopic
