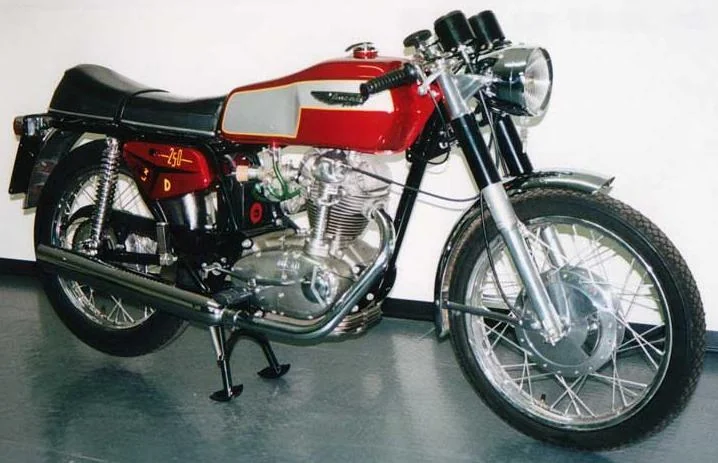

Ducati 250 Mark 3D
1968Sportbike

Ducati 250 Mark 3D

Key specifications

Engine
249 cc
Power
20 HP
Weight
131 kg
Fuel type
petrol
Fuel capacity
3.4 L
Transmission
5-speed
Seat height
29 mm
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)

Overview

Introducing the 1968 Ducati 250 Mark 3D: A Slice of Italian Sport Heritage The 1968 Ducati 250 Mark 3D stands as a testament to Ducati's commitment to crafting agile and spirited motorcycles during the golden age of motorcycling. Positioned within the sport category, this model was aimed at riders who craved a nimble bike that could tackle both city streets and winding country roads with equal flair. With its classic Italian styling, the Mark 3D captures the essence of the late '60s, merging aesthetics with performance. Its relatively lightweight frame and compact dimensions make it an ideal choice for both novice riders and experienced enthusiasts alike, offering an engaging ride that reflects the spirit of the era. At the heart of the Ducati 250 Mark 3D lies a single-cylinder, four-stroke engine with a displacement of 249cc, delivering a spirited 20 horsepower at a thrilling 8,000 RPM. This lively powertrain allows the bike to reach a top speed of 160 km/h (99.4 mph), making it more than capable of keeping up with the demands of spirited riding. The 9.7:1 compression ratio and two-valve configuration contribute to its efficient and responsive power delivery. Riders can expect a smooth experience thanks to the 5-speed gearbox, which encourages quick shifts and allows for optimal performance on varied terrains. The combination of air cooling and a carburettor fuel system ensures reliability while keeping the weight low, making the Mark 3D a joy to handle. The engineering ingenuity of the 250 Mark 3D is evident in its chassis and suspension design. Built on a simplex open cradle tubular steel frame, the bike is both sturdy and lightweight, enhancing its agility. The hydraulic telescopic front forks provide 120 mm of travel, effectively absorbing the bumps in the road, while the swinging arm rear suspension, equipped with adjustable hydraulic shocks and offering 70 mm of travel, ensures a comfortable ride. The dual drum brakes—both front and rear—offer dependable stopping power, a hallmark of Ducati's dedication to safety and performance. Additionally, with a seat height of 735 mm, riders will appreciate the accessible riding position, which adds to the overall user-friendly experience. **

Pros

    Cons

    • Lightweight and Agile: At just 131 kg (288.8 lbs), the Mark 3D is easy to maneuver, making it perfect for new riders and urban commuting.
    • Classic Styling: The vintage design exudes charm and nostalgia, appealing to collectors and enthusiasts of classic motorcycles.
    • Engaging Performance: The spirited engine and responsive gearbox provide an exhilarating ride, especially on twisty roads.
    • Limited Power: While 20 HP is sufficient for casual riding, it may not satisfy those seeking high-performance thrills.
    • Drum Brakes: The expanding drum brakes, while functional, may not provide the same stopping power and feel as modern disc brakes.
    • Vibration at High RPMs: The single-cylinder engine can produce noticeable vibrations at high RPMs, which might be uncomfortable for longer rides.

    Technical details

    Source specification data

    Make
    Ducati
    Model
    250 Mark 3D
    Category
    Sport
    Comments
    Price as new 2895DM
    Power
    20.00 HP (14.6 kW)) @ 8000 RPM
    Gearbox
    5-speed
    Top Speed
    160.0 km/h (99.4 mph)
    Fuel System
    Carburettor
    Compression
    9.7:1
    Displacement
    249.00 ccm (15.19 cubic inches)
    Cooling System
    Air
    Engine Details
    Single cylinder, four-stroke
    Lubrication System
    Wet sump forced lubrication with gear pump
    Valves Per Cylinder
    2
    Transmission Type Final Drive
    Chain
    Dry Weight
    131.0 kg (288.8 pounds)
    Seat Height
    735 mm (28.9 inches) If adjustable, lowest setting.
    Fuel Capacity
    12.90 litres (3.41 gallons)
    Overall Width
    590 mm (23.2 inches)
    Overall Length
    2,000 mm (78.7 inches)
    Power Weight Ratio
    0.1527 HP/kg
    Seat
    Dual seat
    Rear Tyre
    3.00-18
    Frame Type
    Simplex open cradle tubular steel
    Front Tyre
    2.75-18
    Rear Brakes
    Expanding brake (drum brake)
    Front Brakes
    Expanding brake (drum brake)
    Rear Suspension
    Swinging arm rear suspension with adjustable hydraulic shocks
    Front Suspension
    Hydraulic telescopic forks
    Rear Wheel Travel
    70 mm (2.8 inches)
    Front Wheel Travel
    120 mm (4.7 inches)
