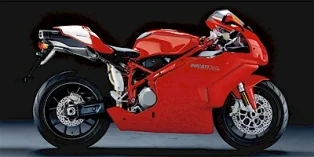

Ducati 749 S
2005Sportbike

Ducati 749 S

Key specifications

Engine
748 cc
Power
116 HP
Torque
84 Nm
Weight
186 kg
Fuel type
petrol
Fuel capacity
4.1 L
Transmission
6-speed
Seat height
31 mm
Front brakes
Double disc
Rear brakes
Single disc

Overview

Introducing the 2005 Ducati 749 S, a striking embodiment of Italian design and engineering excellence that defined the sportbike category of its era. Positioned as a bridge between the raw power of Ducati's superbikes and the nimble prowess of lightweight machines, the 749 S was crafted for enthusiasts who crave precision handling and thrilling performance on both the track and the open road. With its unmistakable trellis frame and aggressive styling, this motorcycle not only captures attention but also the spirit of sport riding. At the heart of the Ducati 749 S lies a potent 748cc V2, four-stroke engine that delivers a robust 116 horsepower at 9500 RPM. This power plant is engineered to provide exhilarating acceleration and a torque-rich experience, with 84 Nm available at 8500 RPM, making it an ideal companion for spirited rides. The engine's high compression ratio of 12.3:1 and advanced Marelli electronic fuel injection work in harmony to ensure responsive throttle control, while the 6-speed gearbox offers seamless shifting that enhances the overall riding experience. The bike's lightweight design, at just 186 kg (410 pounds), translates to a favorable power-to-weight ratio of 0.6237 HP/kg, providing a nimbleness that makes cornering and maneuvering a delight. The 749 S is not just about power; it boasts a suite of high-performance features and technology that elevate its riding dynamics. The tubular steel trellis frame offers exceptional rigidity, while the Showa 43 mm upside-down fully adjustable front fork and rear monoshock ensure that the bike remains composed over varied terrain. The braking system features double discs at the front (320 mm) and a single disc at the rear (240 mm), providing confident stopping power. The adjustable suspension settings allow riders to fine-tune their setup for both track days and everyday use, while the 780 mm seat height ensures a comfortable ride for a range of riders. **

Pros

  • Agile Handling: The lightweight design and advanced suspension setup offer exceptional agility, making it a joy to ride through twisty roads and racetracks.
  • Powerful Engine: The V2 engine delivers thrilling performance with a strong powerband, ensuring that every ride is filled with excitement and adrenaline.
  • Iconic Design: The distinctive Ducati aesthetic, characterized by sharp lines and a classic trellis frame, turns heads and stands out in any crowd.

Cons

  • Limited Comfort for Long Rides: The aggressive riding position may not be ideal for extended journeys, as it can lead to fatigue over long distances.
  • Maintenance Needs: As with many high-performance motorcycles, the Ducati 749 S requires regular maintenance and care to keep it performing at its best.
  • Fuel Capacity: With a fuel tank capacity of just 15.5 liters (4.10 gallons), riders may find themselves stopping more frequently for fuel on longer rides.

Technical details

Source specification data

Make
Ducati
Model
749 S
Category
Sport
Starter
Electric
Power
116.00 HP (84.7 kW)) @ 9500 RPM
Clutch
Dry multiplate with hydraulic control
Torque
84.00 Nm (8.6 kgf-m or 62.0 ft.lbs) @ 8500 RPM
Gearbox
6-speed
Fuel System
Injection
.
Marelli
electronic fuel injection, 54 mm throttle body
Bore X Stroke
90.0 x 58.8 mm (3.5 x 2.3 inches)
Compression
12.3:1
Displacement
748.00 ccm (45.64 cubic inches)
Cooling System
Liquid
Engine Details
V2, four-stroke
Valves Per Cylinder
4
Transmission Type Final Drive
Chain
Dry Weight
186.0 kg (410.1 pounds)
Seat Height
780 mm (30.7 inches) If adjustable, lowest setting.
Fuel Capacity
15.50 litres (4.10 gallons)
Power Weight Ratio
0.6237 HP/kg
Rake
23.5°
Rear Tyre
180/55-ZR17
Frame Type
Tubular steel trellis
Front Tyre
120/70-ZR17
Rear Brakes
Single disc
Front Brakes
Double disc
Rear Suspension
Progressive
linkage with fully adjustable
Showa
monoshock
Front Suspension
Showa
43 mm upside-down fully adjustable fork with
N
surface treatment
Rear Wheel Travel
148 mm (5.8 inches)
Front Wheel Travel
130 mm (5.1 inches)
Rear Brakes Diameter
240 mm (9.4 inches)
Front Brakes Diameter
320 mm (12.6 inches)
