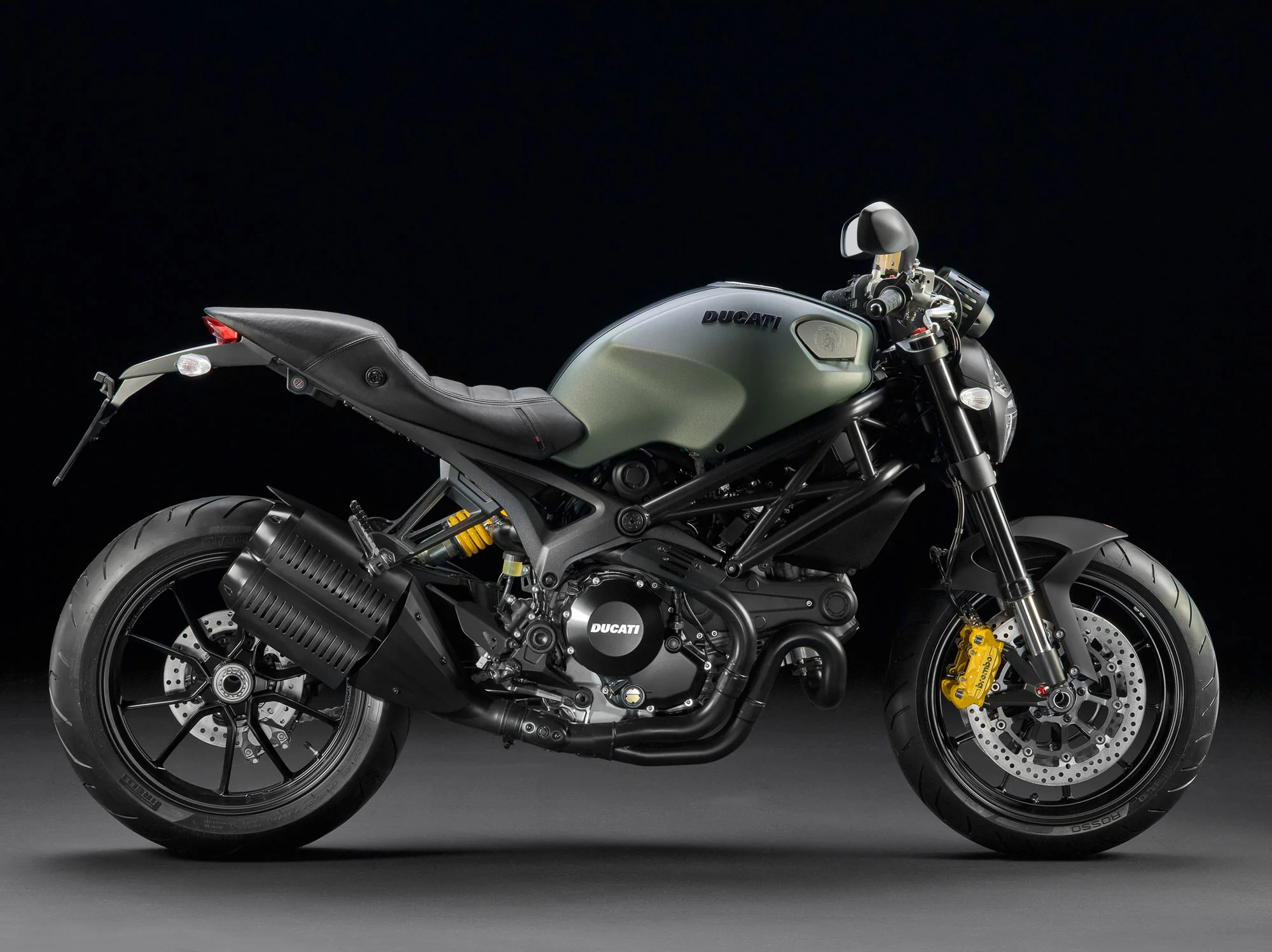

Ducati Monster 1100 EVO
Key specifications
Overview
### The 2013 Ducati Monster 1100 EVO: An Icon Reimagined Embodying the spirit of Ducati’s naked bike lineage, the 2013 Monster 1100 EVO stands as a testament to the Italian brand's commitment to performance, style, and rider engagement. Marketed towards enthusiasts seeking a blend of raw power and agile handling, this bike invites riders to experience the thrill of the open road with unfiltered excitement. With its iconic design, characterized by the unmistakable trellis frame and minimalist aesthetics, the Monster 1100 EVO captures attention not just with its looks, but with a dynamic performance that defines the naked bike category. At the heart of the Monster 1100 EVO lies a potent 1078cc V2 engine that delivers a robust 98.57 horsepower at 7500 RPM and an impressive torque of 103 Nm at 6000 RPM. This engine is a masterpiece of engineering, featuring an 11.3:1 compression ratio and a sophisticated Siemens electronic fuel injection system, ensuring both exhilarating acceleration and smooth throttle response. Riders will appreciate the seamless shifts from the 6-speed gearbox, allowing for a thrilling ride whether navigating through city streets or carving up winding country roads. With a lightweight frame tipping the scales at just 169 kg, the power-to-weight ratio of 0.5833 HP/kg translates to a truly exhilarating ride, making every twist of the throttle an invitation to unleash the Monster’s full potential. Ducati has loaded the Monster 1100 EVO with cutting-edge technology designed to enhance both safety and performance. The bike features advanced ABS on both the front and rear brakes, providing confident stopping power with four-piston calipers up front and a single two-piston caliper at the rear. The fully adjustable Marzocchi 43mm USD forks and Sachs monoshock suspension ensure that every ride is comfortable and responsive, adapting to various riding conditions and preferences. The 31.9-inch seat height strikes a balance between accessibility and sportiness, making it suitable for a range of riders. Additionally, the bike is available in vibrant color options, including classic Ducati Red and a striking red/black/gold combination, ensuring it stands out on the streets. ####
Pros
Cons
- Powerful Performance: The V2 engine delivers exhilarating power and torque, making for an engaging riding experience.
- Lightweight and Agile: Weighing only 169 kg, the Monster offers exceptional maneuverability and responsiveness.
- Advanced Technology: Equipped with ABS and fully adjustable suspension, it combines safety with performance for a confident ride.
- Limited Wind Protection: As a naked bike, wind protection is minimal, which may affect comfort on longer rides.
- Seat Height: While suitable for many riders, the seat height may be challenging for shorter individuals.
- Fuel Capacity: With a 13.5-liter tank, the fuel range may be limiting for those planning longer journeys.
Technical details
Source specification data
- Make
- Ducati
- Model
- Monster 1100 EVO
- Category
- Naked bike
- Starter
- Electric
- Instruments
- Digital
- unit displaying
- Speedometer
- , rev counter, time, scheduled maintenance warning, oil temperature, trip fuel, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, warning
- S
- , overrev,
- C
- , immobilizer.
- Ready
- for
- A
- system.
- Color Options
- Red, black, red/black/gold
- Factory Warranty
- 2 years unlimited mileage
- Power
- 98.57 HP (71.9 kW)) @ 7500 RPM
- Clutch
- Wet multiplate with hydraulic control
- Torque
- 103.00 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 6000 RPM
- Gearbox
- 6-speed
- Driveline
- Chain
- ;
- Front
- sprocket 15;
- Rear
- sprocket 39.
- Primary
- drive:
- Straight
- cut gears;
- Ratio
- 1.84.
- Fuel System
- Injection
- .
- Siemens
- electronic fuel injection, 45mm throttle body
- Bore X Stroke
- 98.0 x 71.5 mm (3.9 x 2.8 inches)
- Compression
- 11.3:1
- Displacement
- 1078.00 ccm (65.78 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Exhaust System
- Lightweight
- 2-1-2 system with catalytic converter and two lambda probes.
- Twin
- aluminium mufflers
- Emission Details
- Euro 3
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 169.0 kg (372.6 pounds)
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 13.50 litres (3.57 gallons)
- Power Weight Ratio
- 0.5833 HP/kg
- Rake
- 24.0°
- Trail
- 87 mm (3.4 inches)
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Tubular steel Trellis frame
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. ABS. Two-piston calipers.
- Front Brakes
- Double
- disc.
- S
- .
- Four
- -piston calipers.
- Rear Suspension
- Progressive
- with preload and rebound
- Sachs
- adjustable monoshock
- Front Suspension
- Marzocchi 43mm fully adjustable usd forks
- Rear Brakes Diameter
- 245 mm (9.6 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
