Ecosse Iconoclast
Key specifications
Overview

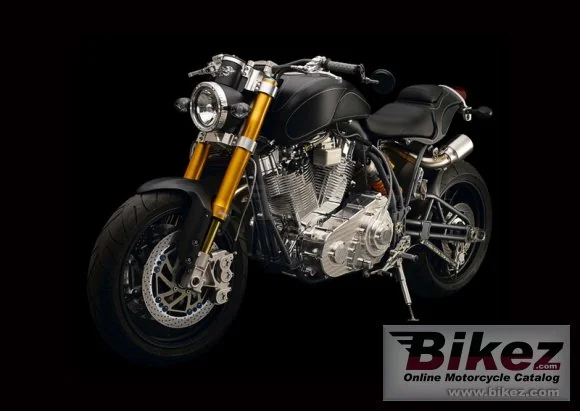

Introducing the 2014 Ecosse Iconoclast, a stunning embodiment of bespoke engineering that sits proudly within the rarefied realm of naked bikes. This limited-edition marvel, with only 11 units produced, is a testament to precision craftsmanship and audacious design. The Iconoclast isn’t just a motorcycle; it’s a statement piece for discerning riders who crave performance and exclusivity. With its aggressive stance and striking hand-formed carbon fiber bodywork, adorned with a silver hand-painted pinstripe, the Iconoclast captures attention and respect wherever it roams. At the heart of the Ecosse Iconoclast lies a formidable V2, four-stroke engine with a displacement of 1966 cc, delivering an exhilarating 135 horsepower and an impressive torque of 189.84 Nm. This powerplant is engineered for visceral performance, propelling the bike from 0 to 60 mph in mere moments. The liquid-cooled engine is paired with a smooth 6-speed gearbox, ensuring seamless shifts and a thrilling ride experience. The power-to-weight ratio of 0.6470 HP/kg translates to a bike that feels light and agile, making it a joy to maneuver through both city streets and winding roads. The Iconoclast’s engineering extends beyond its engine to its meticulously crafted chassis and advanced suspension system. The frame, constructed from 4130 Chrome-moly and TIG welded by hand, has undergone FEA testing to ensure optimal performance and durability. Its trellis-style double-sided swingarm enhances stability, while the custom Öhlins suspension—featuring fully adjustable forks in the front and bespoke shocks in the rear—offers superior handling and ride comfort. The ISR radial brake system, with dual 6-piston front brakes, ensures that stopping power is as impressive as acceleration, providing riders with confidence at every turn. **
Pros
- Exclusive Design: With only 11 units produced, the Iconoclast stands out as a rare collector's item.
- Powerful Performance: The robust V2 engine provides thrilling power and torque, making for an exhilarating ride.
- Advanced Suspension: Custom Öhlins suspension components ensure exceptional handling and ride quality.
Cons
- Limited Availability: The exclusivity comes with a higher price tag, making it less accessible for the average rider.
- Weight Consideration: At 208.7 kg (460.0 lbs), some may find it heavier compared to other naked bikes in the market.
- Niche Appeal: The stark naked bike design may not appeal to all riders, particularly those who prefer more traditional aesthetics.
Technical details
Source specification data
- Make
- Ecosse
- Model
- Iconoclast
- Category
- Naked bike
- Starter
- Electric
- Comments
- Limited edition of only 11 bikes.
- Electrical
- 12 Volt
- Instruments
- Digital speedometer and programmable tachometer (shift points programmable; able to time 0-60, 0-100, quarter-mile passes, etc., plus many other options)
- Color Options
- Matt
- black clear tint on hand-formed carbon fiber bodywork.
- Silver
- hand-painted pin stripe.
- Power
- 135.00 HP (98.5 kW))
- Torque
- 189.84 Nm (19.4 kgf-m or 140.0 ft.lbs)
- Gearbox
- 6-speed
- Engine Type
- Machined from solid billet aluminum
- Bore X Stroke
- 108.0 x 108.0 mm (4.3 x 4.3 inches)
- Displacement
- 1966.00 ccm (119.97 cubic inches)
- Cooling System
- Liquid
- Engine Details
- V2, four-stroke
- Exhaust System
- Special
- custom racing exhaust for
- Iconoclast Series
- ; machined from solid with
- E
- logo machined on mufflers.
- Exhaust
- duplexer located for maximum torque.
- Zero To One Hundred
- 2.800 seconds
- Transmission Type Final Drive
- Chain
- Dry Weight
- 208.7 kg (460.0 pounds)
- Oil Capacity
- 3.70 litres (0.24 quarts)
- Power Weight Ratio
- 0.6470 HP/kg
- Wheels
- Black forged aluminum 17” wheels
- Rear Tyre
- 190/70-ZR17
- Frame Type
- Chrome
- -moly
- G
- welded by hand.
- A
- tested.
- Oil
- circulates through 3” backbone and all four 1¿ down tubes for additional cooling.
- Trellis
- -style double-sided swingarm and subframe.
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. 2-piston calipers
- Front Brakes
- Double
- disc.
- R
- radial brake system.
- Dual
- 6-piston front brakes with 12 individual brake pads for maximum grip.
- Machined
- from billet.
- Rear Suspension
- Öhlins custom shocks
- Front Suspension
- Custom Öhlins, fully adjustable forks
- Rear Brakes Diameter
- 260 mm (10.2 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
