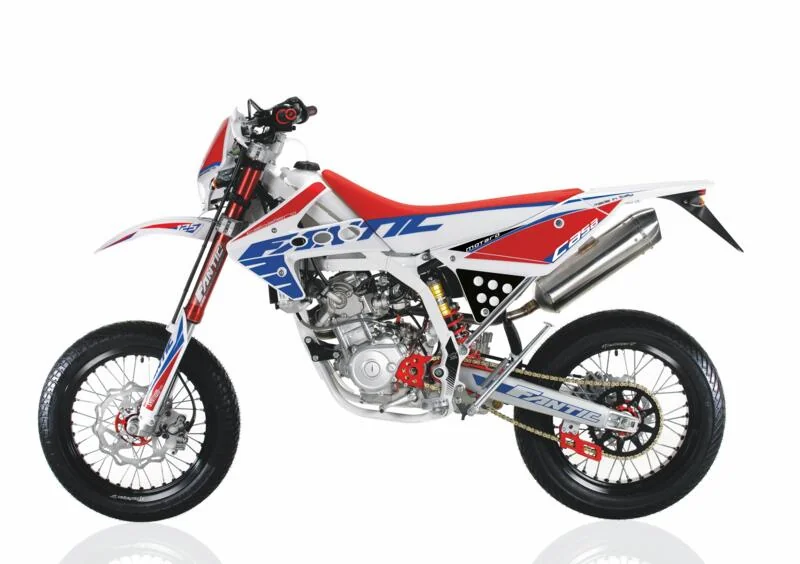

Fantic Caballero 125M Casa
2016Super Moto

Fantic Caballero 125M Casa

Key specifications

Engine
124 cc
Weight
96 kg
Fuel type
petrol
Fuel capacity
2.0 L
Transmission
6-speed
Seat height
34 mm
Front brakes
Single disc. Wave disc
Rear brakes
Single disc. Wave disc

Overview

Introducing the 2016 Fantic Caballero 125M Casa, a sleek and spirited contender in the supermotard category that caters to urban adventurers and weekend warriors alike. With its stylish Italian aesthetics and nimble handling, this machine captures the essence of lightweight performance riding while offering an engaging experience for both new and seasoned riders. As part of Fantic's rich heritage in motorcycle engineering, the Caballero 125M Casa invites you to explore the city streets and twisty backroads with unmatched flair. At the heart of this vibrant motorcycle is a robust 124.45 cc single-cylinder, four-stroke engine. This compact powerhouse produces a lively performance thanks to its 4-valve configuration and efficient Keihin 30mm carburettor fuel system. The engine is paired with a 6-speed gearbox that allows for seamless gear transitions, making it ideal for navigating through traffic or accelerating out of corners. The Fantic Caballero is also equipped with liquid cooling to maintain optimal engine temperatures, ensuring consistent performance during spirited rides. Weighing in at just 96 kg (211.6 lbs), the Caballero's lightweight design combines with its responsive chassis to deliver agile handling, allowing for confident cornering and nimble maneuverability. The Caballero 125M Casa is packed with features that enhance both performance and rider comfort. The perimeter steel CrMo frame, complemented by a removable steel subframe and a progressive link swingarm, provides excellent stability and strength. The suspension setup, featuring FANTIC’s upside-down front forks and a piggyback rear shock, is designed to soak up bumps while ensuring a sporty ride. Stopping power comes from wave discs at both the front (260 mm) and rear (220 mm), providing strong and responsive braking performance. Additional highlights include electric start for convenience and an adjustable seat height of 870 mm, ensuring riders of varying heights can find their ideal riding position. Available in striking color options of red, white, and blue, the Caballero doesn’t just perform well; it also stands out on the road. **

Pros

  • Lightweight and agile design makes it easy to handle in urban environments.
  • Powerful and efficient engine provides spirited performance for a 125 cc motorcycle.
  • Stylish Italian design with customizable color options enhances visual appeal.

Cons

  • Limited power for long-distance touring compared to larger displacement bikes.
  • Smaller fuel capacity (7.50 litres) may require more frequent refueling on longer rides.
  • Seat height may be high for shorter riders, limiting accessibility for some.

Technical details

Source specification data

Make
Fantic
Model
Caballero 125M Casa
Category
Super motard
Starter
Electric
Comments
Model
also called
Fantic
125
Motard Casa
.
Italian
brand.
Color Options
Red/White/Blue
Clutch
Multidisc in oil
Gearbox
6-speed
Ignition
Electronic, variable
Fuel System
Carburettor. Keihin 30mm
Bore X Stroke
52.0 x 58.6 mm (2.0 x 2.3 inches)
Displacement
124.45 ccm (7.59 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, four-stroke
Exhaust System
Anodized aluminium silencer by BigOne
Emission Details
Euro 3
Valves Per Cylinder
4
Transmission Type Final Drive
Chain
Dry Weight
96.0 kg (211.6 pounds)
Seat Height
870 mm (34.3 inches) If adjustable, lowest setting.
Fuel Capacity
7.50 litres (1.98 gallons)
Overall Length
2,040 mm (80.3 inches)
Wheels
Aluminium, anodized black, wire spoked
Rear Tyre
130/70-17
Frame Type
Perimeter
steel
Mo
.
Subframe
:
Removable
in steel.
Swing
arm:
Steel
, progressive link.
Front Tyre
100/80-17
Rear Brakes
Single disc. Wave disc
Front Brakes
Single disc. Wave disc
Rear Suspension
Fantic FRS 50 Piggyback - 1 regulation
Front Suspension
FANTIC FRS ø41mm upside down
Rear Brakes Diameter
220 mm (8.7 inches)
Front Brakes Diameter
260 mm (10.2 inches)

Available colors

Red/White/Blue
