GAS GAS Raga Factory Replica 125
2014Other

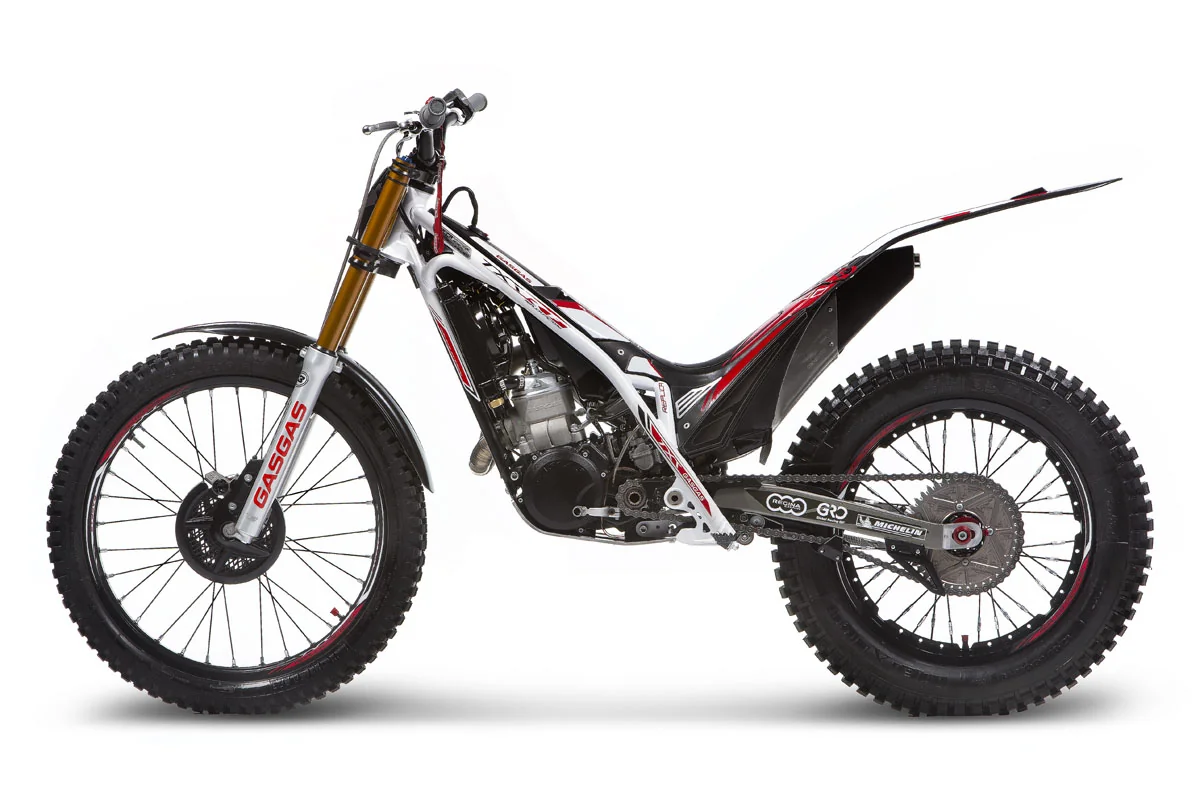

GAS GAS Raga Factory Replica 125

Key specifications

Engine
125 cc
Weight
66 kg
Fuel type
petrol
Fuel capacity
0.7 L
Transmission
6-speed
Seat height
26 mm
Front brakes
Single disc. Floating, 4-piston
Rear brakes
Single disc. 2-piston

Overview

Introducing the 2014 GAS GAS Raga Factory Replica 125, a striking embodiment of trial motorcycle engineering that pays homage to the legendary trials rider, Toni Bou. As a limited edition model, this Spanish marvel not only captures the essence of competition but also appeals to those who crave precision and agility in their rides. With its lightweight frame and powerful two-stroke engine, the Raga 125 is designed for both seasoned riders and enthusiastic newcomers eager to tackle rugged terrains and master the art of trials riding. At the heart of the Raga Factory Replica 125 lies a spirited 125cc single-cylinder two-stroke engine, engineered for performance and responsiveness. The 54.0 x 54.5 mm bore and stroke configuration, coupled with a Dell'Orto PHBL26BS carburettor and reed valve intake, delivers a punchy power band that allows riders to navigate obstacles with finesse. The CDI digital ignition ensures reliable starts and smooth throttle response, while the liquid cooling system keeps the engine from overheating during those intense sessions. Shifting through the 6-speed gearbox is seamless, offering precise control that becomes second nature as you tackle steep inclines and tricky descents. Weighing in at a mere 66 kg (145.5 lbs), this motorcycle feels nimble and light, enhancing the rider's ability to maneuver effortlessly. The Raga Factory Replica 125 is not just about raw power; it’s also laden with advanced technology and thoughtful design features. The chromoly tubular frame provides exceptional rigidity while maintaining lightness, contributing to its agile handling. The Marzocchi front suspension with adjustable compression and rebound, paired with a Reiger hydraulic mono shock, offers an impressive 177 mm of front travel and 164 mm at the rear, ensuring superior control over rugged terrain. Additionally, the braking system, featuring a floating 4-piston front disc and a robust 2-piston rear disc, provides reliable stopping power, crucial for trials riding. With a seat height of just 650 mm, riders can easily manage their footing on technical sections, while the vibrant red, white, and gold color scheme turns heads on and off the trials course. **

Pros

  • Lightweight Design: At just 66 kg, the Raga 125 offers exceptional agility and maneuverability, making it ideal for navigating challenging terrains.
  • Responsive Engine: The two-stroke engine delivers a thrilling power band, ensuring quick acceleration and easy handling for riders of all skill levels.
  • Advanced Suspension: With adjustable Marzocchi and Reiger suspension systems, riders can fine-tune their setup for optimum performance in various conditions.

Cons

  • Limited Fuel Capacity: With a fuel tank that holds just 2.5 liters, longer rides may require frequent refueling, which can be inconvenient.
  • Kick Start Only: The absence of an electric start may deter some riders, especially in challenging situations where quick restarts are essential.
  • Niche Market: As a trial-focused motorcycle, its specialized design may not appeal to those looking for a versatile bike for street or dual-sport riding.

Technical details

Source specification data

Make
GAS GAS
Model
Raga Factory Replica 125
Category
Trial
Starter
Kick
Comments
Spanish bike. Limited edition model.
Color Options
Red/white/gold
Clutch
GG 1/3 hydraulic-diaphragm-system
Gearbox
6-speed
Ignition
CDI digital magnetic flywheel
Fuel System
Carburettor
.
Dell
´
S
-
Intake
by reed valve
Bore X Stroke
54.0 x 54.5 mm (2.1 x 2.1 inches)
Displacement
125.00 ccm (7.63 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, two-stroke
Lubrication System
2.5 % Mixture
Transmission Type Final Drive
Chain
Dry Weight
66.0 kg (145.5 pounds)
Seat Height
650 mm (25.6 inches) If adjustable, lowest setting.
Fuel Capacity
2.50 litres (0.66 gallons)
Overall Width
825 mm (32.5 inches)
Overall Length
2,045 mm (80.5 inches)
Rear Tyre
4.00-18
Frame Type
Chrom-Molybdenum tubular frame
Front Tyre
2.75-21
Rear Brakes
Single disc. 2-piston
Front Brakes
Single disc. Floating, 4-piston
Rear Suspension
Reiger (2-way) hydraulic mono shock absorber.
Front Suspension
Marzocchi
40 mm
Aluminium Right
-
Sight
-
Up
.
Adjustable
compression and rebound.
Rear Wheel Travel
164 mm (6.5 inches)
Front Wheel Travel
177 mm (7.0 inches)
Rear Brakes Diameter
150 mm (5.9 inches)
Front Brakes Diameter
185 mm (7.3 inches)

Available colors

Red/white/gold
