GAS GAS Raga Factory Replica 250
2014Other

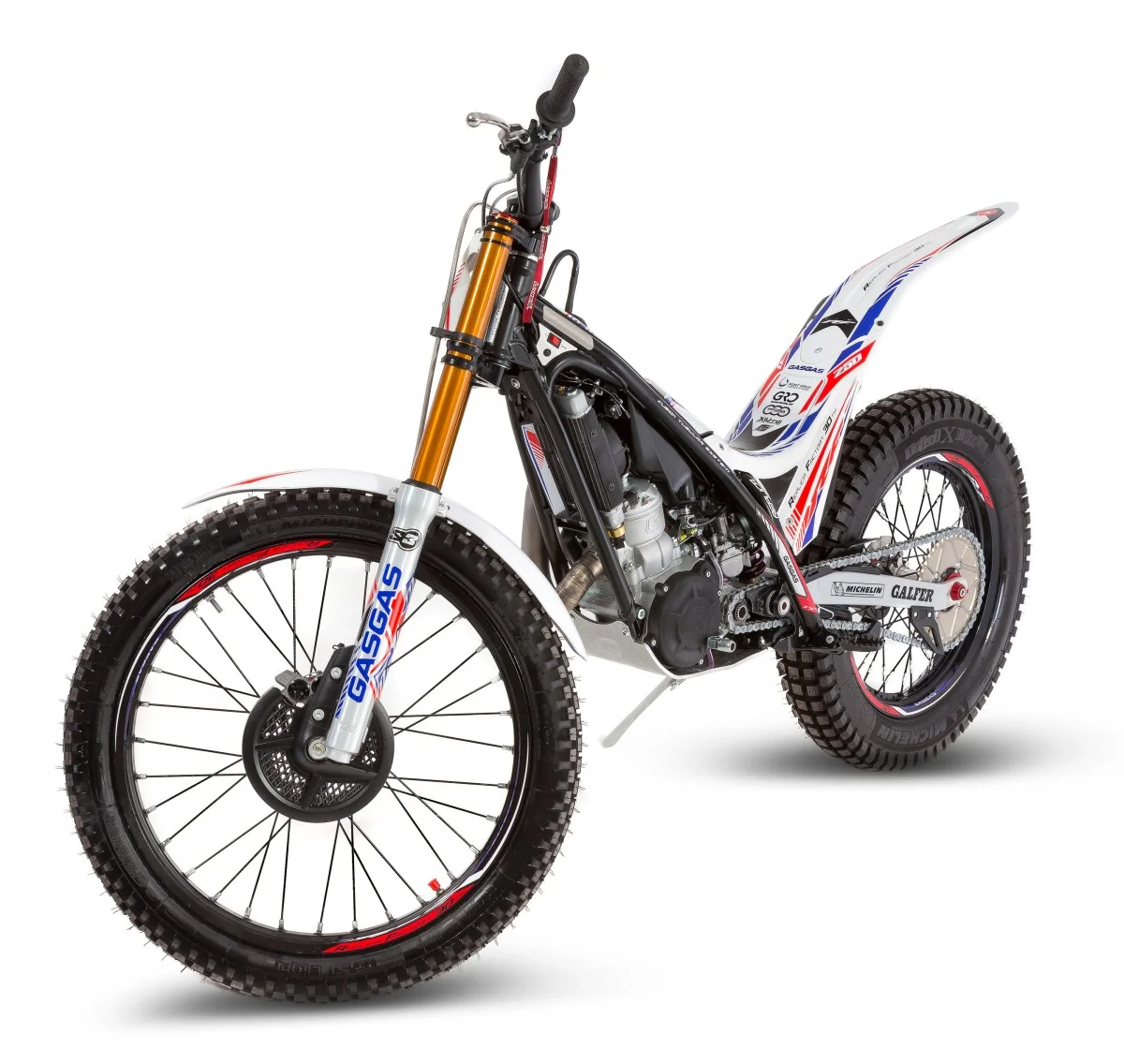

GAS GAS Raga Factory Replica 250

Key specifications

Engine
248 cc
Weight
66 kg
Fuel type
petrol
Fuel capacity
0.7 L
Transmission
6-speed
Seat height
26 mm
Front brakes
Single disc. Floating disk, 4-piston caliper
Rear brakes
Single disc. 2-piston caliper

Overview

Introducing the 2014 GAS GAS Raga Factory Replica 250, a motorcycle that embodies the spirit of competitive trial riding while celebrating the legacy of one of the sport's greatest champions, Toni Bou. This limited edition model, meticulously crafted in Spain, positions itself as an elite contender in the trial category, appealing to seasoned riders and aspiring enthusiasts alike. With its striking red, white, and gold color scheme, this bike is not just a visual delight but also a testament to GAS GAS's commitment to performance and innovation. Under the sleek and robust exterior lies a potent 247.70 cc single-cylinder two-stroke engine that delivers an exhilarating ride. With a bore and stroke of 72.5 x 60.0 mm, the Raga Factory Replica 250 strikes an impressive balance between power and agility. The carbureted fuel system, featuring a Keihin PWK 28 intake valve, ensures smooth and responsive throttle control, allowing riders to navigate challenging terrains with confidence. Coupled with a 6-speed gearbox and a lightweight design of just 65.5 kg (144.4 lbs), this motorcycle offers quick acceleration and remarkable maneuverability, making it a favorite among trial competitors. The Raga Factory Replica 250 is equipped with advanced features that enhance its performance and rider experience. The chrom-molybdenum tubular frame provides exceptional strength and rigidity, while the Marzocchi 40 mm front suspension and Reiger hydraulic mono shock absorber deliver impressive handling and stability over obstacles. The braking system, featuring a 4-piston caliper at the front and a 2-piston caliper at the rear, ensures precise stopping power, allowing riders to tackle steep descents and tricky turns with ease. This bike's compact dimensions, including a seat height of 650 mm (25.6 inches), make it accessible for riders of various sizes, further broadening its appeal. **

Pros

  • Lightweight Construction: At only 65.5 kg, the bike offers exceptional agility and ease of maneuverability, perfect for navigating tight trails and obstacles.
  • Superior Suspension: The Marzocchi front and Reiger rear suspension provide excellent shock absorption, enhancing comfort and control during rugged rides.
  • Limited Edition Appeal: As a tribute to a legendary rider, the Raga Factory Replica 250 not only performs well but also carries a unique status among trial motorcycles.

Cons

  • Small Fuel Capacity: With a fuel tank that holds only 2.50 liters (0.66 gallons), long-distance riding may require frequent stops for refueling.
  • Kick Start Only: The traditional kick starter may be less convenient compared to electric start systems found in many modern bikes.
  • Niche Market: As a trial-specific motorcycle, it may not suit riders looking for versatility in various riding conditions beyond competitive trial competitions.

Technical details

Source specification data

Make
GAS GAS
Model
Raga Factory Replica 250
Category
Trial
Starter
Kick
Comments
Bike
made in
Spain
.
Limited
edition model.
Color Options
Red/white/gold
Clutch
AJP clutch and brake master cylinders.
Gearbox
6-speed
Ignition
CDI digital magnetic flywheel
Fuel System
Carburettor
.
K
28.
Intake
by reed valve
Bore X Stroke
72.5 x 60.0 mm (2.9 x 2.4 inches)
Displacement
247.70 ccm (15.11 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, two-stroke
Transmission Type Final Drive
Chain
Dry Weight
65.5 kg (144.4 pounds)
Seat Height
650 mm (25.6 inches) If adjustable, lowest setting.
Fuel Capacity
2.50 litres (0.66 gallons)
Overall Length
2,045 mm (80.5 inches)
Rear Tyre
4.00-18
Frame Type
Chrom-Molybdenum tubular frame
Front Tyre
2.75-21
Rear Brakes
Single disc. 2-piston caliper
Front Brakes
Single
disc.
Floating
disk, 4-piston caliper
Rear Suspension
Reiger (2-way) hydraulic mono shock absorber
Front Suspension
Marzocchi
40 mm
Aluminium Right
-
Sight
-
Rear Wheel Travel
164 mm (6.5 inches)
Front Wheel Travel
177 mm (7.0 inches)
Rear Brakes Diameter
150 mm (5.9 inches)
Front Brakes Diameter
185 mm (7.3 inches)

Available colors

Red/white/gold
