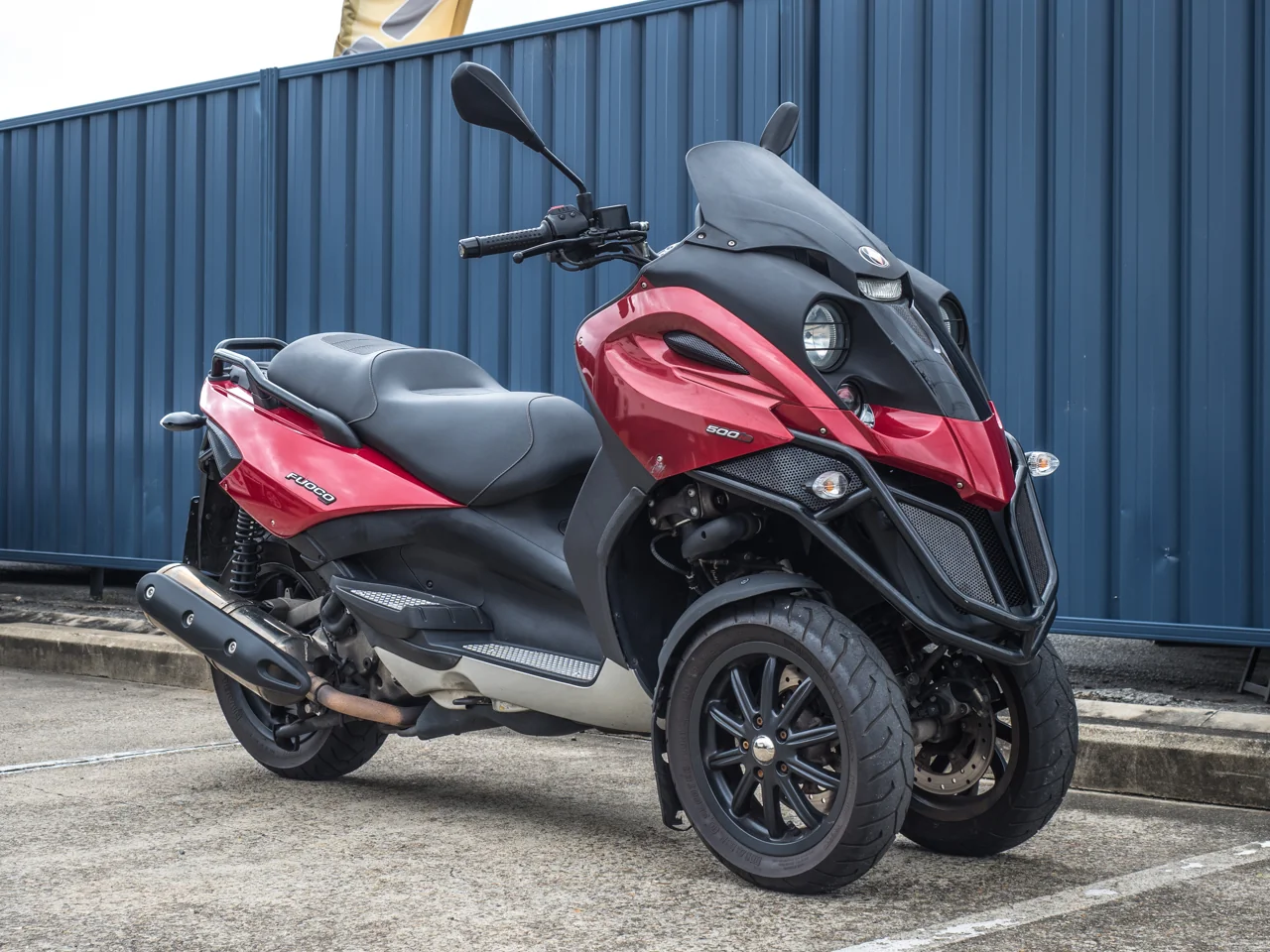

Gilera Fuoco 500ie
2012Scooter

Gilera Fuoco 500ie

Key specifications

Engine
493 cc
Power
40 HP
Torque
42 Nm
Weight
244 kg
Fuel type
petrol
Fuel capacity
3.2 L
Transmission
Automatic
Front brakes
Double disc
Rear brakes
Single disc

Overview

Introducing the 2012 Gilera Fuoco 500ie—a bold and innovative entry in the scooter segment that defies convention while delivering an exhilarating ride. With its striking design and powerful performance, the Fuoco 500ie stands out in the crowded scooter market, appealing to a diverse range of riders, from urban commuters to weekend adventurers. This three-wheeled marvel is not only a head-turner but also a testament to Gilera’s commitment to engineering excellence, combining comfort, agility, and technology into a single, well-crafted machine. At the heart of the Fuoco 500ie is its robust 492.70 cc single-cylinder, four-stroke engine, delivering an impressive 40 horsepower and 42.23 Nm of torque. This spirited powerplant revs up to 7250 RPM, providing ample acceleration for city cruising and highway jaunts alike. With an automatic gearbox, riders can effortlessly navigate through traffic, while the liquid cooling system ensures optimal performance even under demanding conditions. Fuel efficiency is another strong suit, offering 4.76 liters per 100 km, making this scooter a practical choice for daily use without sacrificing performance. The Fuoco 500ie is packed with features that enhance both safety and riding enjoyment. Its unique double cradle trellis frame, constructed from high-strength steel tubes, offers exceptional rigidity and stability. The advanced front suspension, composed of a parallelogram with four aluminum arms and an electro-hydraulic suspension locking system, guarantees unparalleled handling and comfort on various terrains. The braking system is equally impressive, featuring double discs at the front and a single disc at the rear, both measuring 240 mm in diameter, ensuring powerful stopping performance. With a weight of 244 kg and a power-to-weight ratio of 0.1639 HP/kg, this scooter strikes a fine balance between heft and agility, making it a joy to ride. In summary, the 2012 Gilera Fuoco 500ie is a distinctive and capable scooter that combines powerful performance with innovative design and technology, appealing to those who seek adventure and style on two (or three) wheels.

Pros

  • Innovative Design: The three-wheeled configuration offers enhanced stability and cornering capabilities, making it unique in the scooter market.
  • Strong Performance: The powerful engine delivers excellent acceleration, making it suitable for both city commuting and longer rides.
  • Comfort & Technology: The advanced suspension system and braking features provide a smooth, safe ride, keeping both novice and experienced riders comfortable.

Cons

  • Weight: At 244 kg, the Fuoco 500ie is heavier than traditional scooters, which may affect maneuverability for some riders.
  • Price Point: As a premium scooter, it may be priced higher than other competitors in the segment, which could deter budget-conscious buyers.
  • Limited Storage: While it offers adequate fuel capacity, the storage space is not as generous as some larger touring scooters, limiting practicality for longer trips.

Technical details

Source specification data

Make
Gilera
Model
Fuoco 500ie
Category
Scooter
Starter
Electric
Color Options
Red, Black, Gray
Power
40.00 HP (29.2 kW)) @ 7250 RPM
Torque
42.23 Nm (4.3 kgf-m or 31.1 ft.lbs) @ 5500 RPM
Gearbox
Automatic
Ignition
Double ignition
Driveline
Automatic twist and go with C.V.T
Engine Type
Master engine
Fuel System
Injection
Bore X Stroke
94.0 x 71.0 mm (3.7 x 2.8 inches)
Displacement
492.70 ccm (30.06 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, four-stroke
Emission Details
Euro 3
Fuel Consumption
4.76 litres/100 km (21.0 km/l or 49.42 mpg)
Greenhouse Gases
O2
g/km. (
O2
-
Carbon
dioxide emission)
Valves Per Cylinder
4
Transmission Type Final Drive
Chain
Dry Weight
244.0 kg (537.9 pounds)
Fuel Capacity
12.00 litres (3.17 gallons)
Overall Width
790 mm (31.1 inches)
Overall Length
2,210 mm (87.0 inches)
Power Weight Ratio
0.1639 HP/kg
Reserve Fuel Capacity
1.80 litres (0.48 gallons)
Wheels
Two
front wheels.
Die
-cast aluminium alloy rims.
Rear Tyre
140/70-14
Frame Type
Double cradle trellis made of high strength steel tubes
Front Tyre
120/70-12
Rear Brakes
Single disc
Front Brakes
Double disc
Rear Suspension
Oscillating engine fixed to the frame with a swingarm and two dual effect hydraulic shock absorbers with four-position spring preload.
Front Suspension
Parallelogram
composed of four aluminium arms supporting two steering tubes, cantilevered suspension.
Electro
-hydraulic suspension locking system.
Rear Wheel Travel
110 mm (4.3 inches)
Front Wheel Travel
85 mm (3.3 inches)
Rear Brakes Diameter
240 mm (9.4 inches)
Front Brakes Diameter
240 mm (9.4 inches)

Available colors

RedBlackGray
