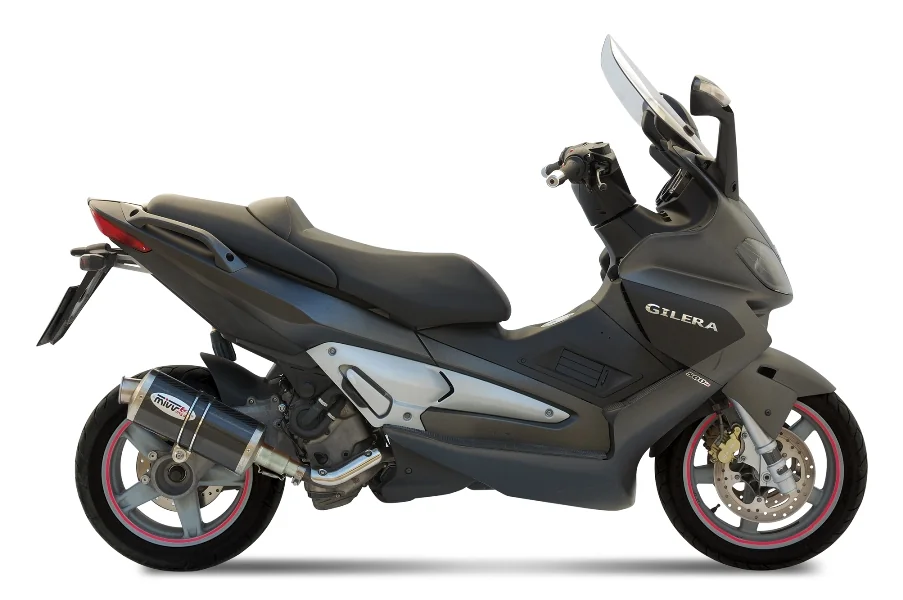

Gilera Nexus 500
2009Scooter

Gilera Nexus 500

Key specifications

Engine
460 cc
Power
40 HP
Torque
43 Nm
Fuel type
petrol
Fuel capacity
4.0 L
Transmission
Automatic
Seat height
31 mm
Front brakes
Single disc. Stainless steel double disc, with floating calliper and two Brembo pistons 28 mm front left and two Brembo pistons 26 mm front right
Rear brakes
Single disc. Stainless steel disk, fixed calliper, two 34 mm opposed pistons

Overview

Introducing the 2009 Gilera Nexus 500, a striking fusion of Italian design and engineering that stands out in the ever-competitive scooter market. With its bold aesthetic and robust performance capabilities, the Nexus 500 is crafted for urban commuters and adventurous riders alike, offering a unique blend of style and functionality. This scooter embodies the spirit of freedom on two wheels, making it an excellent choice for those who crave both excitement and practicality in their daily rides. At the heart of the Nexus 500 lies a powerful 460cc single-cylinder, four-stroke engine that delivers an exhilarating 40.12 horsepower at 7,500 RPM. This engine is not just about numbers; it translates to an impressive torque of 43 Nm at 5,500 RPM, ensuring seamless acceleration and a responsive riding experience. The liquid-cooled setup, combined with a sophisticated electronic fuel injection system, guarantees optimal performance and efficiency, whether you're navigating city streets or cruising on the open road. With an automatic gearbox and a final belt drive, the Nexus 500 provides a smooth and effortless ride, allowing riders to focus on the thrill of the journey. The Nexus 500 is equipped with advanced features that elevate its performance and safety. The double cradle trellis frame, made from high-strength steel tubes, ensures stability and durability, while the Kayaba telehydraulic front suspension and a progressive POWER DRIVE rear suspension deliver a comfortable ride over varied terrains. Stopping power is provided by dual stainless-steel disc brakes at the front and a robust single disc at the rear, ensuring responsive braking when it matters most. Additionally, the scooter boasts an electric starter and a generous fuel capacity of 15 liters, making it a practical choice for longer rides. Its sleek design is complemented by the vibrant Rosso Emotion color, ensuring you turn heads wherever you go. In summary, the 2009 Gilera Nexus 500 is an impressive scooter that combines power, technology, and style, making it an ideal choice for riders seeking a thrilling yet practical two-wheeled experience. Whether navigating busy city streets or embarking on weekend adventures, the Nexus 500 promises an enjoyable ride that doesn't compromise on performance or aesthetics.

Pros

  • Powerful Engine Performance: The Nexus 500’s 460cc engine provides ample power and torque, making it suitable for both urban commuting and longer journeys.
  • Advanced Suspension and Braking: The high-quality suspension and braking systems enhance rider comfort and safety, providing confidence in various riding conditions.
  • Stylish Design: The eye-catching aesthetics and vibrant color options make the Nexus 500 a standout choice for riders who appreciate style.

Cons

  • Weight: At 216 kg (476.2 pounds), the Nexus 500 is on the heavier side for a scooter, which may impact maneuverability in tight spaces.
  • Seat Height: With a seat height of 780 mm (30.7 inches), it may not be suitable for all riders, especially those with shorter inseams.
  • Limited Storage: While designed for performance, the Nexus 500 may lack the storage capacity found in some competitors, limiting practicality for daily commuting needs.

Technical details

Source specification data

Make
Gilera
Model
Nexus 500
Category
Scooter
Starter
Electric
Color Options
Rosso Emotion
Power
40.12 HP (29.3 kW)) @ 7500 RPM
Torque
43.00 Nm (4.4 kgf-m or 31.7 ft.lbs) @ 5500 RPM
Gearbox
Automatic
Ignition
Electronic inductive discharge, variable spark advance controlled by electronic injection
Fuel System
Injection
Bore X Stroke
92.0 x 69.0 mm (3.6 x 2.7 inches)
Compression
10.5:1
Displacement
460.00 ccm (28.07 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, four-stroke
Exhaust System
Closed
loop system with lambda sensor and three-way catalytic converter in exhaust pipe.
Euro
3.
Lubrication System
Wet sump
Valves Per Cylinder
4
Transmission Type Final Drive
Belt
Seat Height
780 mm (30.7 inches) If adjustable, lowest setting.
Fuel Capacity
15.00 litres (3.96 gallons)
Overall Width
765 mm (30.1 inches)
Overall Length
2,090 mm (82.3 inches)
Reserve Fuel Capacity
2.80 litres (0.74 gallons)
Weight Incl Oil Gas Etc
216.0 kg (476.2 pounds)
Rear Tyre
160/60-14
Frame Type
Double cradle trellis made of high-strength steel tubes
Front Tyre
120/70-15
Rear Brakes
Single
disc.
Stainless
steel disk, fixed calliper, two 34 mm opposed pistons
Front Brakes
Single
disc.
Stainless
steel double disc, with floating calliper and two
Brembo
pistons 28 mm front left and two
Brembo
pistons 26 mm front right
Rear Suspension
E
,
Kayaba
gas shock absorber with spring preload
Front Suspension
Kayaba telehydraulic fork
Rear Wheel Travel
76 mm (3.0 inches)
Rear Brakes Diameter
240 mm (9.4 inches)
Front Brakes Diameter
260 mm (10.2 inches)

Available colors

Rosso Emotion
