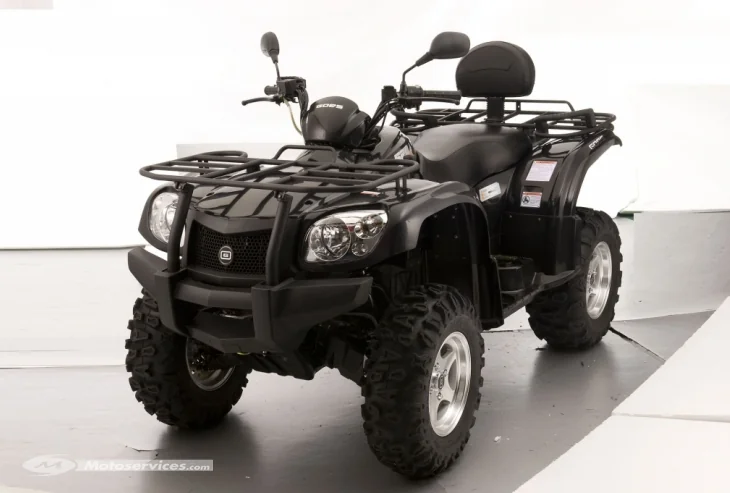

Goes G 520 F Max
2015ATV

Goes G 520 F Max

$5,999

Key specifications

Engine
493 cc
Power
31 HP
Torque
21 Nm
Weight
323 kg
Fuel type
petrol
Fuel capacity
5.0 L
Transmission
Automatic
Seat height
36 mm
Front brakes
Single disc. Hydraulic
Rear brakes
Single disc. Hydraulic.

Overview

Introducing the 2015 Goes G 520 F Max, a formidable contender in the world of all-terrain vehicles (ATVs). Priced at an accessible €5999, this model is tailored for both adventure enthusiasts and those seeking a reliable companion for off-road escapades. With its robust construction and thoughtful engineering, the G 520 F Max stands out in the competitive ATV market, designed to deliver exhilarating performance while providing comfort and reliability on rugged terrains. At the heart of the G 520 F Max lies a powerful 493cc single-cylinder, four-stroke engine, generating a spirited 31 horsepower at 6300 RPM. This engine not only offers a respectable torque of 21 Nm at 6000 RPM but also ensures an agile response, making it ideal for navigating through diverse terrains. The liquid-cooled system, combined with a carburettor from Mikuni, guarantees efficient fuel delivery and consistent performance, whether you’re scaling hills or crossing muddy trails. Paired with an automatic gearbox and a belt final drive, riders can focus on the adventure without the hassle of manual shifting, enjoying a smooth and responsive ride. The G 520 F Max is equipped with several features that enhance its performance and ride quality. The double A-arm front suspension and independent rear suspension provide excellent stability and control, allowing for a comfortable ride even on challenging surfaces. Safety is paramount, with hydraulic single disc brakes at both front and rear ensuring reliable stopping power. The significant ground clearance of 288 mm further empowers riders to tackle obstacles with ease, while the 19-liter fuel tank offers a generous range for extended outings. Optional electronic power steering adds another layer of convenience, making handling effortless, especially on rough trails. **

Pros

  • Powerful Engine: The 493cc engine delivers strong performance and torque, perfect for off-road adventures.
  • Comfortable Suspension: The advanced suspension system ensures a smooth ride on uneven terrain, enhancing overall comfort.
  • User-Friendly Features: With electric and kick-start options and an automatic clutch, it’s accessible for riders of all skill levels.

Cons

  • Weight: At 323 kg (712 lbs), it may be cumbersome for some riders, especially in tight situations.
  • Limited Color Options: The single black color option may not appeal to those looking for more personalization.
  • Price Sensitivity: Depending on country-specific taxes and accessories, the final price may vary significantly, potentially straining budgets.

Technical details

Source specification data

Make
Goes
Model
G 520 F Max
Price
Euro
5999.
Prices
depend on country, taxes, accessories, etc.
Category
ATV
Starter
Electric & kick
Comments
Optional Electronic Power Steering
Instruments
Analog
Color Options
Black
Carrying Capacity
Front and rear rack
Power
31.00 HP (22.6 kW)) @ 6300 RPM
Clutch
Automatic
Torque
21.00 Nm (2.1 kgf-m or 15.5 ft.lbs) @ 6000 RPM
Gearbox
Automatic
Ignition
CDI
Driveline
2x4, 4x4, 4x4-LOCK
Fuel System
Carburettor. Mikuni BSR 36
Bore X Stroke
87.5 x 82.0 mm (3.4 x 3.2 inches)
Compression
10.2:1
Displacement
493.00 ccm (30.08 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, four-stroke
Transmission Type Final Drive
Belt
Dry Weight
323.0 kg (712.1 pounds)
Seat Height
920 mm (36.2 inches) If adjustable, lowest setting.
Fuel Capacity
19.00 litres (5.02 gallons)
Overall Width
1,700 mm (66.9 inches)
Overall Height
1,230 mm (48.4 inches)
Overall Length
2,300 mm (90.6 inches)
Ground Clearance
288 mm (11.3 inches)
Power Weight Ratio
0.0960 HP/kg
Rear Tyre
25/10-12
Front Tyre
25/8-12
Rear Brakes
Single disc. Hydraulic.
Front Brakes
Single disc. Hydraulic
Rear Suspension
Independent Suspension
Front Suspension
Double A-Arm

Available colors

Black
