Goes Iron LTD
2020ATV

Goes Iron LTD

Key specifications

Engine
398 cc
Power
27 HP
Torque
29 Nm
Weight
344 kg
Fuel type
petrol
Fuel capacity
4.8 L
Transmission
Automatic
Seat height
36 mm
Front brakes
Single disc
Rear brakes
Single disc

Overview

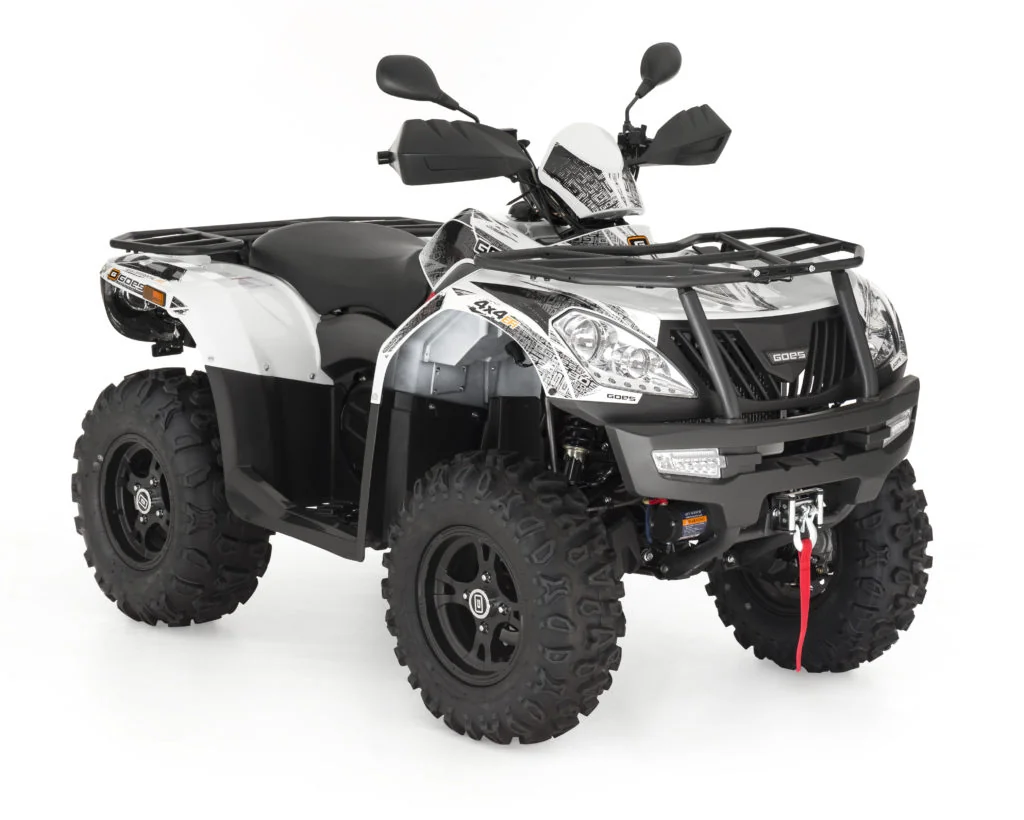

Introducing the 2020 Goes Iron LTD, a robust all-terrain vehicle that stands out in the crowded ATV market. Designed for both adventure seekers and utility users, the Iron LTD harmonizes functionality with a rugged aesthetic, making it a versatile companion for off-road escapades or work-related tasks. With its striking color options, including Camo, Flash Red, and Cosmic White, this ATV appeals to those who crave both style and performance, ensuring you turn heads whether you're navigating through dense woods or cruising along open trails. At the heart of the Iron LTD is a powerful single-cylinder, four-stroke engine with a displacement of 398 ccm, delivering an impressive 26.82 HP at 7500 RPM. This engine not only provides ample power for tackling steep inclines and rough terrains, but it also generates a solid torque of 29.00 Nm at 6250 RPM, ensuring that you’re never left wanting for acceleration. The Bosch Electronic Fuel Injection system guarantees smooth and responsive throttle control, while the automatic gearbox and shaft drive make for a seamless riding experience. With liquid cooling, the engine maintains optimal operating temperatures, allowing you to push the Iron LTD to its limits without compromising performance. The 2020 Goes Iron LTD is not just about power; it’s also equipped with advanced features that enhance comfort and handling. The double A-arm front suspension and independent rear suspension ensure a smooth ride over uneven surfaces, while the single disc brakes at both the front and rear provide reliable stopping power when needed. An optional Electronic Power Steering (EPS) makes maneuvering this 344 kg beast easier and more responsive, especially in tight situations. With a generous ground clearance of 285 mm and a comfortable seat height of 920 mm, the Iron LTD is designed to accommodate a wide range of riders, making it an inclusive choice for anyone looking to conquer the outdoors. **

Pros

  • Robust Performance: The powerful engine and automatic transmission provide excellent acceleration and ease of handling, especially in challenging terrains.
  • Comfortable Ride: The advanced suspension system ensures a smooth and enjoyable ride, even on rough trails.
  • Versatile Design: With its stylish color options and rugged build, the Iron LTD is both practical for work and attractive for recreational use.

Cons

  • Weight Consideration: At 344 kg, it may feel heavy for inexperienced riders, especially in challenging maneuvers.
  • Limited Top Speed: While the power is adequate for most off-road needs, it may not satisfy those looking for high-speed thrills.
  • Optional Features: The Electronic Power Steering is an optional add-on, which could increase the overall cost for those seeking enhanced handling.

Technical details

Source specification data

Make
Goes
Model
Iron LTD
Category
ATV
Starter
Electric
Comments
Optional Electronic Power Steering (EPS).
Instruments
LCD
Color Options
Camo, flash red, cosmic white
Carrying Capacity
Front and rear rack
Power
26.82 HP (19.6 kW)) @ 7500 RPM
Clutch
Automatic
Torque
29.00 Nm (3.0 kgf-m or 21.4 ft.lbs) @ 6250 RPM
Gearbox
Automatic
Ignition
CDI
Driveline
2x4, 4x4, 4x4-Lock (100% electrically lockable)
Fuel System
Injection. Bosch Electronic Fuel Injection
Displacement
398.00 ccm (24.29 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, four-stroke
Emission Details
Euro 4
Transmission Type Final Drive
Shaft drive (cardan)
Dry Weight
344.0 kg (758.4 pounds)
Seat Height
920 mm (36.2 inches) If adjustable, lowest setting.
Fuel Capacity
18.00 litres (4.76 gallons)
Overall Width
1,170 mm (46.1 inches)
Overall Height
1,210 mm (47.6 inches)
Overall Length
2,130 mm (83.9 inches)
Ground Clearance
285 mm (11.2 inches)
Power Weight Ratio
0.0780 HP/kg
Rear Tyre
25/10-12
Front Tyre
25/8-12
Rear Brakes
Single disc
Front Brakes
Single disc
Rear Suspension
IRS Independent Rear Wheel Suspension
Front Suspension
Double A-Arms

Available colors

Camoflash redcosmic white
