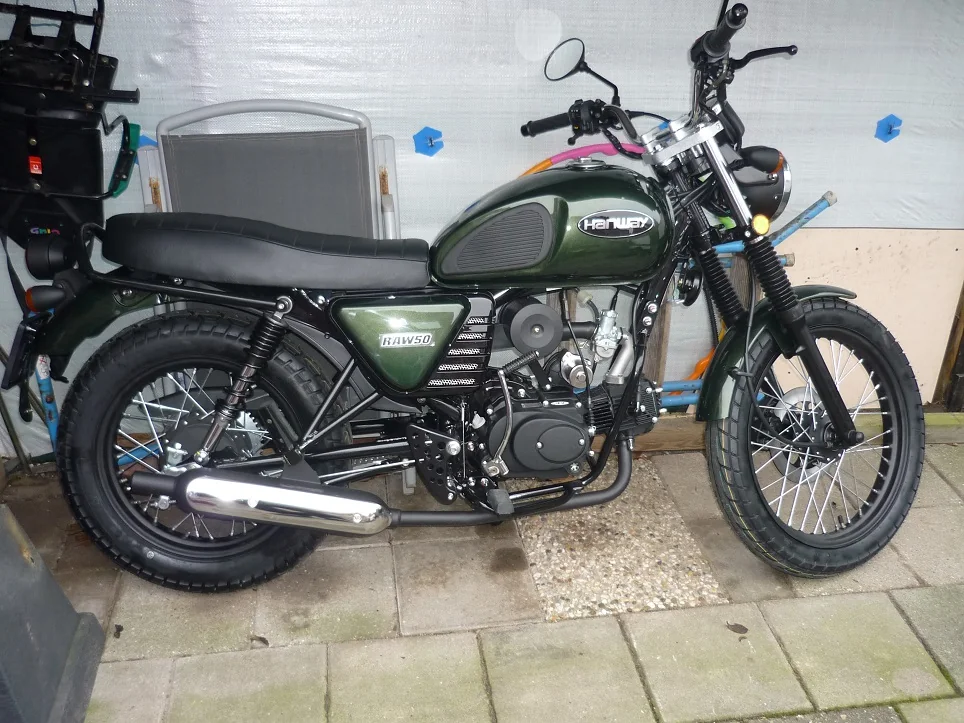

Hanway Raw 50
2016Allround

Hanway Raw 50

Key specifications

Engine
50 cc
Power
3 HP
Torque
3 Nm
Weight
102 kg
Fuel type
petrol
Fuel capacity
3.2 L
Seat height
28 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake). Optional disc brake

Overview

Introducing the 2016 Junak Raw 50, a nimble and stylish motorcycle designed for both urban commuting and beginner riders. Positioned in the all-round category, the Raw 50 combines affordability with a unique aesthetic that appeals to a younger audience and those looking to navigate city streets with ease. With its blend of classic design cues and modern functionality, this bike offers a great entry point for new motorcyclists seeking to explore the freedom of two wheels without the complexities of larger displacement engines. At the heart of the Junak Raw 50 is a spirited 49.5cc single-cylinder two-stroke engine that delivers a modest yet fun 3.22 horsepower at 8,000 RPM. This power output, paired with a torque of 3.10 Nm at 6,000 RPM, provides a responsive riding experience that’s perfect for city cruising or zipping through traffic. Capable of reaching a top speed of 45 km/h (28 mph), the Raw 50 excels in urban environments where agility and maneuverability are paramount. The air-cooled engine features a carburettor fuel system and CDI ignition, ensuring that riders enjoy reliable performance whether they're starting their day or heading out for a weekend adventure. The Junak Raw 50 is built with a focus on rider comfort and safety, featuring a sturdy chassis with telescopic forks up front and a telescopic coil spring rear suspension that is oil damped. The combination of front disc brakes and an optional rear drum brake (or an upgrade to a disc) ensures that stopping power is both reliable and effective. The bike's compact dimensions, with a seat height of just 720 mm (28.3 inches) and a weight of 102 kg (224.9 lbs), make it accessible for riders of various statures, while the 12-liter fuel tank allows for ample range on short to moderate rides. In summary, the 2016 Junak Raw 50 presents an attractive option for new riders and city dwellers alike, combining dependable performance with a striking design. Whether you’re navigating through urban traffic or enjoying a leisurely ride on the weekend, this motorcycle provides a taste of freedom that only two wheels can offer.

Pros

  • User-Friendly: Lightweight and easy to handle, making it ideal for beginner riders.
  • Affordable: Competitive pricing for entry-level motorcyclists without sacrificing style.
  • Versatile Design: Suitable for both city commuting and casual weekend rides.

Cons

  • Limited Power: With just over 3 HP, it may not satisfy those seeking high-speed performance.
  • Basic Features: Lacks advanced technology and features found in higher-end models.
  • Chinese Manufacturing: Some riders may prefer bikes built by established European or Japanese manufacturers for perceived quality and reliability.

Technical details

Source specification data

Make
Hanway
Model
Raw 50
Category
Allround
Starter
Electric & kick
Comments
Chinese made bike.
Color Options
Black/dark red, silver/dark grey
Power
3.22 HP (2.4 kW)) @ 8000 RPM
Torque
3.10 Nm (0.3 kgf-m or 2.3 ft.lbs) @ 6000 RPM
Ignition
CDI
Top Speed
45.0 km/h (28.0 mph)
Fuel System
Carburettor
Compression
7.3:1
Displacement
49.50 ccm (3.02 cubic inches)
Cooling System
Air
Engine Details
Single cylinder, two-stroke
Transmission Type Final Drive
Chain
Dry Weight
102.0 kg (224.9 pounds)
Seat Height
720 mm (28.3 inches) If adjustable, lowest setting.
Fuel Capacity
12.00 litres (3.17 gallons)
Overall Width
800 mm (31.5 inches)
Overall Length
2,060 mm (81.1 inches)
Ground Clearance
120 mm (4.7 inches)
Power Weight Ratio
0.0316 HP/kg
Rear Tyre
120/80-16
Front Tyre
90/90-18
Rear Brakes
Expanding
brake (drum brake).
Optional
disc brake
Front Brakes
Single disc
Rear Suspension
Telescopic coil spring, oil damped
Front Suspension
Telescopic forks

Available colors

Black/dark redsilver/dark grey
