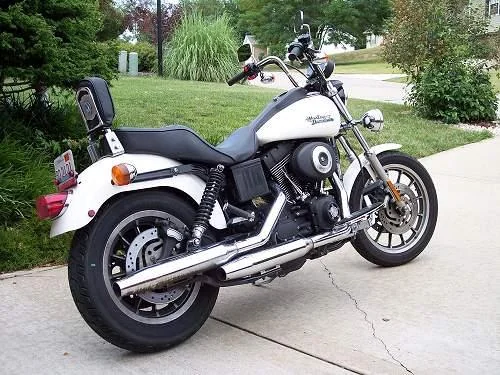

Harley-Davidson FXDP Dyna Defender
Key specifications
Overview
Introducing the 2004 Harley-Davidson FXDP Dyna Defender, a motorcycle that embodies the spirit of freedom and rugged individuality that is synonymous with the Harley name. Designed as a custom-cruiser, the FXDP Dyna Defender stands out in the market for its blend of performance, style, and practicality. This model is not just a bike; it’s a versatile machine that appeals to both urban riders and long-distance cruisers alike. With its bold lines and commanding presence, the Dyna Defender makes a striking statement on the road, whether you're navigating city streets or taking on open highways. At the heart of the FXDP Dyna Defender lies a robust 1442.15 ccm V2, four-stroke engine that delivers a powerful torque of 115 Nm at just 3000 RPM. The combination of a compression ratio of 8.9:1 and a carburettor fuel system ensures that this bike offers a thrilling ride, with ample low-end power for quick acceleration and smooth cruising. The 5-speed gearbox and belt final drive contribute to a seamless riding experience, making it easy to navigate through traffic or enjoy long stretches of open road. The bike’s weight of 313.4 kg (691 pounds) is balanced with an agile frame, allowing for confident handling and stability, enhanced by the 39 mm front suspension and rear coil-over shock, providing ample travel for a comfortable ride. The FXDP Dyna Defender is loaded with features that enrich the riding experience. Its black powder-coated engine trim with a wrinkle black treatment adds a touch of rugged elegance, while the convertible-style windshield offers adjustable protection against the elements. Riders will appreciate the solo seat that provides comfort during long rides, as well as the footboards with a heel-toe shifter for easy gear changes. With a fuel capacity of 19.30 liters (5.10 gallons), this motorcycle is ready for extended journeys, giving you the freedom to explore without frequent stops. The Dyna Defender also comes in a variety of color options, including Birch White and Vivid Black, allowing riders to express their personal style. **
Pros
- Powerful V2 engine with impressive torque for exhilarating acceleration.
- Comfortable riding position and features for long-distance travel.
- Versatile design suitable for both urban and touring experiences.
Cons
- Heavier weight can make maneuvering at low speeds challenging.
- Limited storage space for long trips without additional accessories.
- The carburettor fuel system may require more frequent maintenance compared to modern fuel injection systems.
Technical details
Source specification data
- Make
- Harley-Davidson
- Model
- FXDP Dyna Defender
- Category
- Custom-cruiser
- Starter
- Electric
- Comments
- M Black
- powder-coated w/ wrinkle black treatment.
- D Convertible
- style, breakaway and adjustable.
- T Solo
- .
- S
- with
- Heel
- /toe shifter.
- Color Options
- Birch White
- ,
- Vivid Black
- ,
- Black
- /
- White
- ,
- Police Color Palette
- .
- Clutch
- 9-plate, wet
- Torque
- 115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 3000 RPM
- Gearbox
- 5-speed
- Fuel System
- Carburettor
- Bore X Stroke
- 95.3 x 101.6 mm (3.8 x 4.0 inches)
- Compression
- 8.9:1
- Displacement
- 1442.15 ccm (88.00 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Transmission Type Final Drive
- Belt
- Dry Weight
- 313.4 kg (691.0 pounds)
- Seat Height
- 711 mm (28.0 inches) If adjustable, lowest setting.
- Oil Capacity
- 2.80 litres (0.18 quarts)
- Fuel Capacity
- 19.30 litres (5.10 gallons)
- Overall Width
- 889 mm (35.0 inches)
- Overall Height
- 1,275 mm (50.2 inches)
- Overall Length
- 1,275 mm (50.2 inches)
- Ground Clearance
- 147 mm (5.8 inches)
- Alternate Seat Height
- 787 mm (31.0 inches) If adjustable, highest setting.
- Reserve Fuel Capacity
- 3.40 litres (0.90 gallons)
- Rake
- 28.0°
- Trail
- 104 mm (4.1 inches)
- Rear Tyre
- MT90B16-71H
- Frame Type
- Mild
- steel tubular frame, rectangular section backbone, stamped, cast and forged junctions, forged fender support,
- G
- welded
- Front Tyre
- MM90-19
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Coil over shock
- Front Suspension
- 39 mm w/ polished aluminum fork triple clamp and dual-rate springs
- Rear Wheel Travel
- 109 mm (4.3 inches)
- Front Wheel Travel
- 155 mm (6.1 inches)
Available colors
