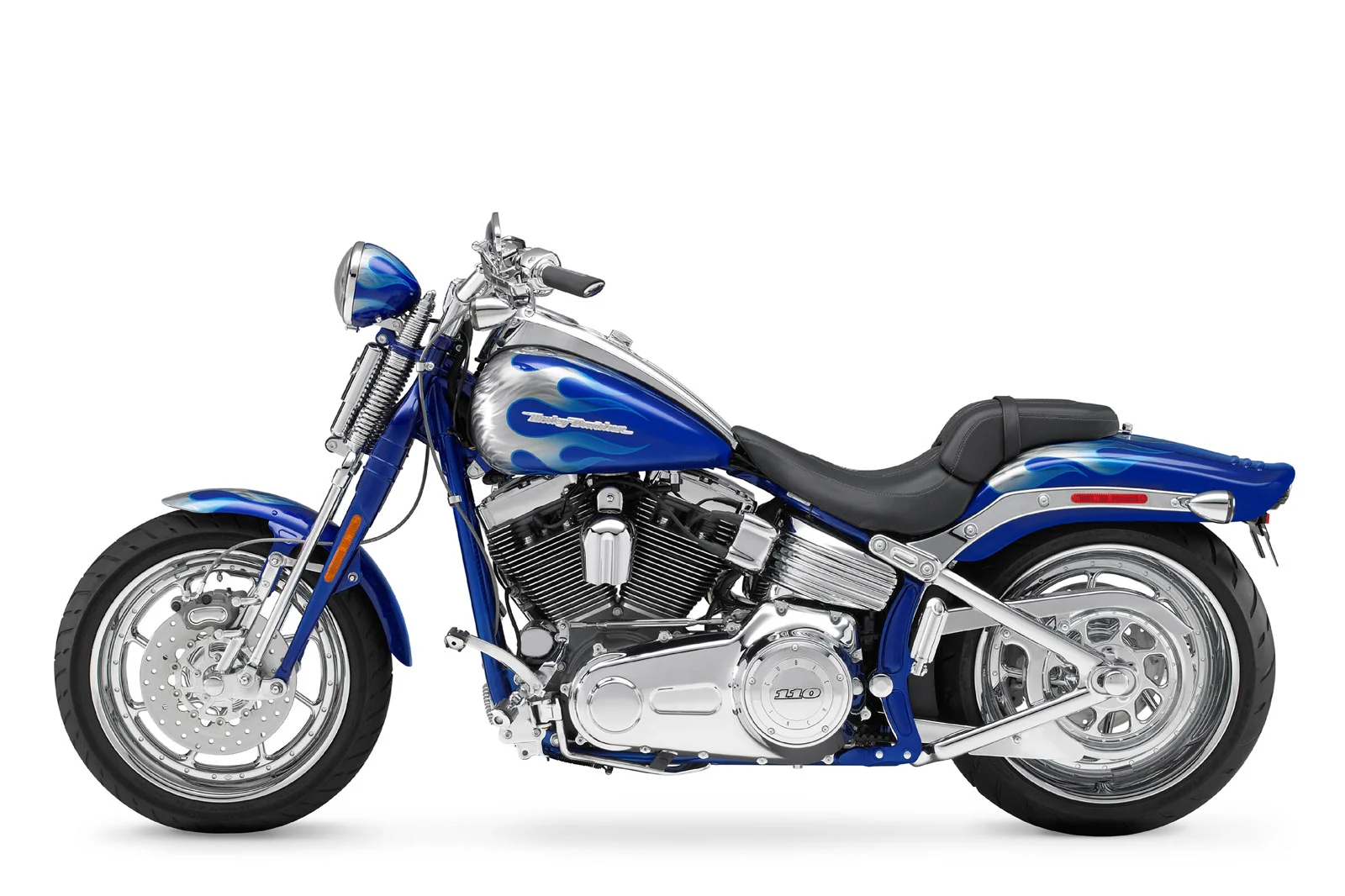

Harley-Davidson FXSTSSE3 CVO Softail Springer
2009Cruiser

Harley-Davidson FXSTSSE3 CVO Softail Springer

Key specifications

Engine
1800 cc
Torque
135 Nm
Weight
329 kg
Fuel type
petrol
Fuel capacity
5.0 L
Transmission
6-speed
Seat height
26 mm
Front brakes
Double disc. 4-piston calipers
Rear brakes
Single disc. 2-piston calipers

Overview

Introducing the 2009 Harley-Davidson FXSTSSE3 CVO Softail Springer, a motorcycle that seamlessly marries classic aesthetics with modern performance. Part of Harley-Davidson's elite Custom Vehicle Operations (CVO) line, the FXSTSSE3 stands out in the custom-cruiser category, capturing the hearts of enthusiasts who crave both style and substance. With its unique design and limited production, this model embodies the spirit of American motorcycling—bold, unrestrained, and distinctly powerful. At the heart of the FXSTSSE3 is its robust 1800 cc V-twin engine, delivering an impressive 135 Nm of torque at 6500 RPM. This four-stroke powerhouse ensures exhilarating acceleration and a thumping, visceral riding experience that only a Harley can provide. The Electronic Sequential Port Fuel Injection (ESPFI) system enhances fuel efficiency and throttle response, while the 6-speed gearbox allows for smooth transitions between gears, making highway cruising a breeze. With a compression ratio of 9.2:1 and a bore x stroke configuration of 101.6 x 111.3 mm, the engine delivers a harmonious blend of power and refinement, inviting riders to explore the open road with confidence. The FXSTSSE3 is not just about engine performance; it’s also packed with features that enhance the riding experience. Its striking visual appeal is complemented by color options like Black Diamond with Emerald Ice Flames and Sunrise Yellow Pearl with Volcanic Fury Flames, ensuring that every bike is as unique as its owner. The leading-link front fork and hidden coil-over rear suspension provide a smooth ride, absorbing the bumps of the road while maintaining stability and control. Coupled with powerful dual disc brakes and a well-balanced chassis, the Softail Springer offers a ride that is both comfortable and responsive, making it ideal for long journeys or spirited weekend rides. **

Pros

  • Powerful Performance: The 1800 cc engine delivers thrilling torque and acceleration, perfect for riders seeking an engaging experience.
  • Unique Aesthetic Appeal: Limited-edition color options and classic design elements make the FXSTSSE3 a standout on the road.
  • Comfortable Ride: Advanced suspension and ergonomic seat height provide a smooth, enjoyable ride for various rider heights.

Cons

  • Weight: At 725.3 pounds, the bike may feel heavy for some riders, especially during low-speed maneuvers.
  • Fuel Capacity: The 4.99-gallon tank may require more frequent stops on long rides compared to some touring models.
  • Limited Production: As a CVO model, availability may be limited, making it harder for potential buyers to find one.

Technical details

Source specification data

Make
Harley-Davidson
Model
FXSTSSE3 CVO Softail Springer
Category
Custom-cruiser
Starter
Electric
Comments
CVO is HD´s Custom Vehicle Operations.
Color Options
Black Diamond
with
Emerald Ice Flames
,
Candy Cobalt
with
Blue Steel Flames
,
Sunrise Yellow Pearl
with
Clutch
Hydraulically actuated, 9-plate, wet, with high-performance spring
Torque
135.00 Nm (13.8 kgf-m or 99.6 ft.lbs) @ 6500 RPM
Gearbox
6-speed
Fuel System
Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Bore X Stroke
101.6 x 111.3 mm (4.0 x 4.4 inches)
Compression
9.2:1
Displacement
1800.00 ccm (109.84 cubic inches)
Cooling System
Air
Engine Details
V2, four-stroke
Exhaust System
Chrome, slash-down staggered exhaust with
Transmission Type Final Drive
Belt
Dry Weight
329.0 kg (725.3 pounds)
Seat Height
648 mm (25.5 inches) If adjustable, lowest setting.
Fuel Capacity
18.90 litres (4.99 gallons)
Overall Length
2,327 mm (91.6 inches)
Ground Clearance
118 mm (4.6 inches)
Rake
32.0°
Trail
113 mm (4.4 inches)
Rear Tyre
240/55-R18
Frame Type
Mild steel, tubular frame; rectangular section backbone;
Front Tyre
130/70-R18
Rear Brakes
Single disc. 2-piston calipers
Front Brakes
Double disc. 4-piston calipers
Rear Suspension
Hidden, horizontal-mounted, coil-over
Front Suspension
Leading-link fork
Rear Wheel Travel
82 mm (3.2 inches)
Front Wheel Travel
58 mm (2.3 inches)
Rear Brakes Diameter
292 mm (11.5 inches)
Front Brakes Diameter
292 mm (11.5 inches)

Available colors

Black Diamond with Emerald Ice FlamesCandy Cobalt with Blue Steel FlamesSunrise Yellow Pearl with Volcanic Fury Flames
