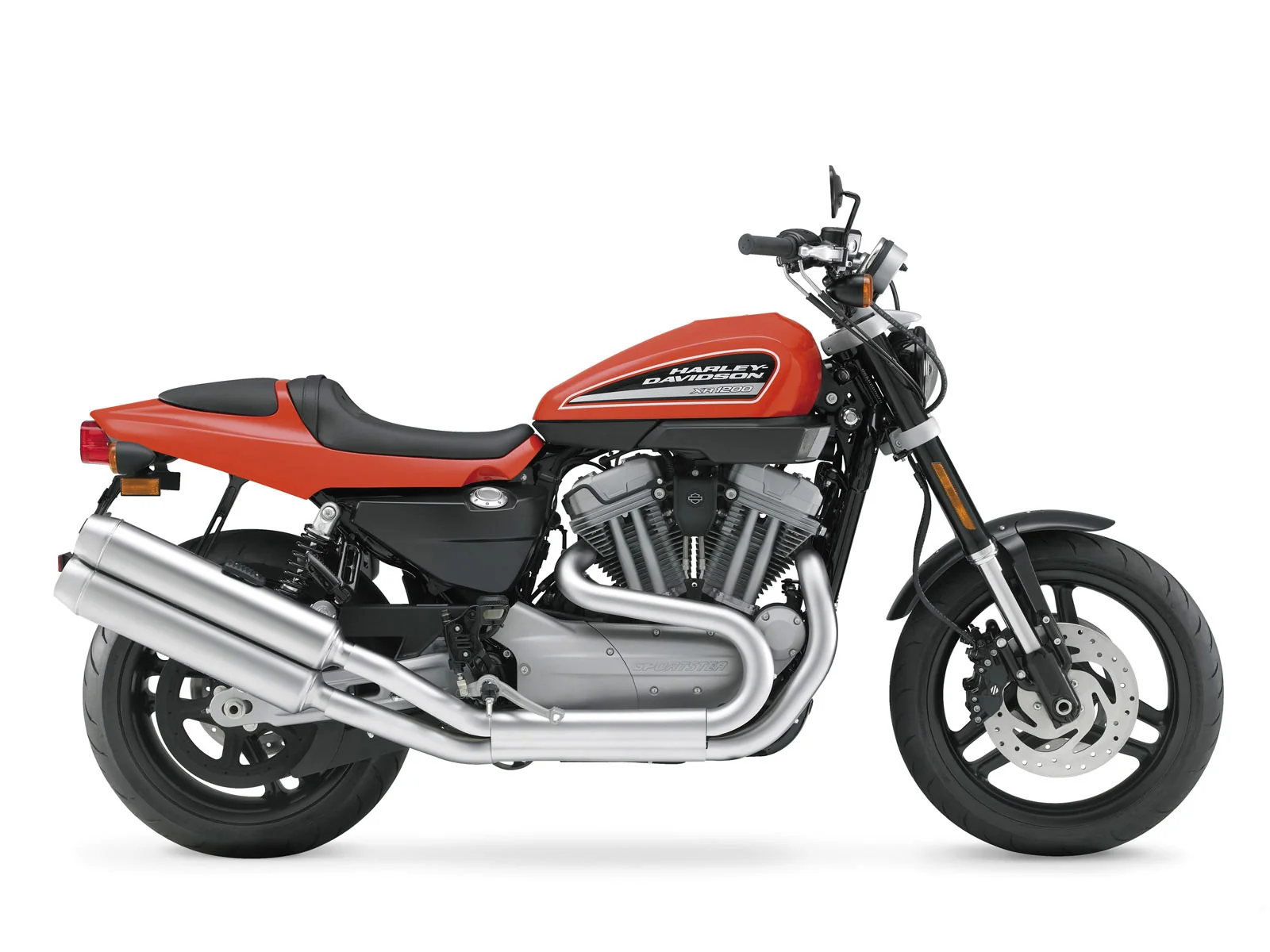

Harley-Davidson XL 1200R Sportster 1200 Roadster (XR 1200)
Key specifications
Overview
Introducing the 2009 Harley-Davidson XL 1200R Sportster 1200 Roadster (XR 1200), a motorcycle that perfectly balances the spirit of classic custom cruisers with modern performance. As a member of the renowned Sportster family, the XL 1200R stands out for its rugged aesthetic and versatility, making it a favorite among riders who crave both style and substance. With a distinctive design that evokes the essence of freedom and adventure, this bike appeals to a diverse range of motorcycle enthusiasts, from city commuters to weekend road warriors. At the heart of the XL 1200R is a robust 1202cc V2 four-stroke engine that delivers an exhilarating 98 Nm of torque at just 3200 RPM. This powerplant is not only known for its impressive acceleration but also for its throaty roar that commands attention on the road. The electronic Sequential Port Fuel Injection (ESPFI) ensures a smooth throttle response, while the 5-speed gearbox provides seamless shifting for an engaging riding experience. With a compression ratio of 9.7:1 and an air-cooled design, the engine combines classic Harley-Davidson heritage with reliability and efficiency, making it a true powerhouse for both spirited rides and leisurely cruises. Designed with the modern rider in mind, the XL 1200R boasts a sport-tuned Showa® suspension featuring 43mm inverted front forks, delivering an agile and responsive handling experience. The double disc brakes with 4-piston calipers in the front and a single disc in the rear provide exceptional stopping power, instilling confidence even during spirited riding. Its mild steel tubular frame not only enhances stability but also ensures a comfortable ride over various terrains. Additional features such as the 12.5-liter fuel tank and a seat height of 742 mm (29.2 inches) cater to a wide range of riders, making the bike accessible without compromising on performance. **
Pros
- Powerful Performance: The 1202cc engine delivers strong torque and acceleration, perfect for both city and highway riding.
- Responsive Handling: The sport-tuned suspension and robust braking system provide excellent control and stability.
- Iconic Style: The classic Harley-Davidson design ensures you turn heads wherever you go, embodying the spirit of freedom.
Cons
- Weight: At 251 kg (553.4 lbs), the bike may feel heavy for some riders, especially when maneuvering at low speeds.
- Limited Fuel Capacity: The 12.5-liter tank might require more frequent stops during long rides compared to other touring models.
- Seat Height: While the low seat height is comfortable for many, it may not accommodate taller riders as well.
Technical details
Source specification data
- Make
- Harley-Davidson
- Model
- L
- 1200
- R Sportster
- 1200
- Category
- Custom-cruiser
- Starter
- Electric
- Comments
- Evolution engine
- Clutch
- 9-plate, wet
- Torque
- 98.00 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 3200 RPM
- Gearbox
- 5-speed
- Fuel System
- Injection. Electronic Sequential Port Fuel Injection (ESPFI)
- Bore X Stroke
- 88.9 x 96.8 mm (3.5 x 3.8 inches)
- Compression
- 9.7:1
- Displacement
- 1202.00 ccm (73.35 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Exhaust System
- Upswept, high-volume 2-1-2 straight shot exhaust system finished in satin chrome
- Transmission Type Final Drive
- Belt
- Dry Weight
- 251.0 kg (553.4 pounds)
- Seat Height
- 742 mm (29.2 inches) If adjustable, lowest setting.
- Fuel Capacity
- 12.50 litres (3.30 gallons)
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Mild steel tubular frame; circular sections; cast junctions
- Front Tyre
- 120/70-ZR18
- Rear Brakes
- Single disc. Single pistom
- Front Brakes
- Double disc. 4-piston calipers
- Rear Suspension
- Twin pre-load adjustable shock absorbers
- Front Suspension
- Sport
- -tuned
- Showa
- ® suspension featuring 43mm inverted front forks
- Rear Brakes Diameter
- 292 mm (11.5 inches)
- Front Brakes Diameter
- 292 mm (11.5 inches)
