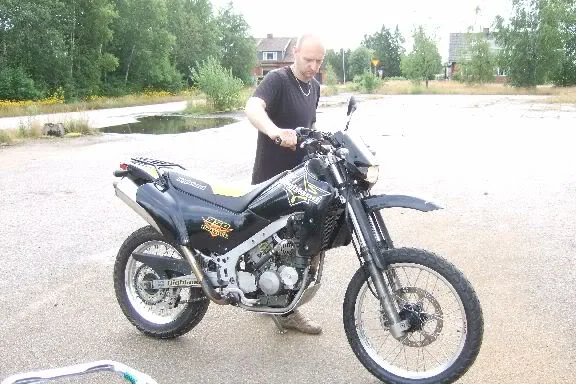

Highland DirtTrac 950
2009Other

Highland DirtTrac 950

Key specifications

Engine
950 cc
Power
85 HP
Torque
104 Nm
Weight
129 kg
Fuel type
petrol
Fuel capacity
2.6 L
Transmission
6-speed
Seat height
28 mm
Front brakes
Single disc. Beringer six piston caliper
Rear brakes
Single disc. Brembo caliper

Overview

### Introducing the 2009 Highland DirtTrac 950 The 2009 Highland DirtTrac 950 is a captivating blend of rugged capability and advanced engineering, designed for the trial motorcycle enthusiast who craves performance on demanding terrains. Positioned within the competitive landscape of trial motorcycles, the DirtTrac 950 stands out thanks to its unique features and robust build quality. With a striking color palette of yellow and black, this bike not only looks the part but also embodies the spirit of adventure that defines Highland’s ethos. Whether you’re navigating rocky trails or tackling steep inclines, the DirtTrac 950 promises to deliver an exhilarating riding experience. ### Engine Performance and Riding Characteristics At the heart of the DirtTrac 950 lies a powerful V2, four-stroke engine with a displacement of 950cc, generating an impressive 85 horsepower at 6000 RPM and a torque output of 104 Nm at 4000 RPM. This potent combination provides an exhilarating burst of acceleration, allowing riders to reach a top speed of 200 km/h (124.3 mph) with ease. The bike is equipped with a 6-speed gearbox, ensuring smooth transitions between gears and optimal power delivery. Its liquid cooling system and advanced injection fuel system contribute not only to performance but also to the efficiency of the engine, making every ride feel controlled and responsive. With a compression ratio of 11.5:1 and a well-balanced bore and stroke of 95.0 x 66.0 mm, the DirtTrac 950 offers an engaging ride that is both thrilling and manageable, perfect for conquering the twists and turns of off-road trails. ### Key Features and Technology The Highland DirtTrac 950 is not just about raw power; it’s engineered with a host of features that enhance both safety and performance. The bike boasts a CrMo steel frame, providing a lightweight yet strong foundation that contributes to its nimbleness on challenging terrains. The front suspension is equipped with a Kayaba fork, while the rear features Penske shocks, ensuring excellent handling and comfort regardless of the road conditions. Stopping power is equally impressive, thanks to the Beringer six-piston caliper on the front with a 310 mm disc and a Brembo caliper on the rear with a 220 mm disc. The electric starter adds convenience, while adjustable seat height (at its lowest setting, 720 mm) makes it accessible for riders of various statures. ###

Pros

    Cons

    • Powerful Engine Performance: The 950cc engine delivers a thrilling ride with strong acceleration and top-end speed.
    • Superior Braking System: High-quality braking components enhance safety and control during aggressive riding.
    • Robust Suspension Setup: The combination of Kayaba and Penske components ensures responsive handling and comfort over rough terrain.
    • Weight Consideration: At 129 kg (284.4 pounds), it may feel heavier compared to some competitors, especially for novice riders.
    • Fuel Capacity: With a 10-liter (2.64 gallons) fuel tank, range may be limited for long-distance adventures.
    • Niche Market Position: As a trial bike, it may lack versatility for those looking to use it for everyday street riding or touring.

    Technical details

    Source specification data

    Make
    Highland
    Model
    DirtTrac 950
    Category
    Trial
    Starter
    Electric
    Color Options
    Yellow/black
    Power
    85.00 HP (62.0 kW)) @ 6000 RPM
    Clutch
    Wet multidisk
    Torque
    104.00 Nm (10.6 kgf-m or 76.7 ft.lbs) @ 4000 RPM
    Gearbox
    6-speed
    Ignition
    i2 Highland integrated engine management system with ignition coils fitted directly on the spark plugs
    Top Speed
    200.0 km/h (124.3 mph)
    Fuel System
    Injection
    Bore X Stroke
    95.0 x 66.0 mm (3.7 x 2.6 inches)
    Compression
    11.5:1
    Displacement
    950.00 ccm (57.97 cubic inches)
    Cooling System
    Liquid
    Engine Details
    V2, four-stroke
    Lubrication System
    Wet sump, double filter, pressure lubricated crankshaft, camshaft and gearbox
    Valves Per Cylinder
    4
    Transmission Type Final Drive
    Chain
    Dry Weight
    129.0 kg (284.4 pounds)
    Seat Height
    720 mm (28.3 inches) If adjustable, lowest setting.
    Fuel Capacity
    10.00 litres (2.64 gallons)
    Power Weight Ratio
    0.6589 HP/kg
    Rear Tyre
    160/60-17
    Frame Type
    CrMo steel
    Front Tyre
    120/70-17
    Rear Brakes
    Single disc. Brembo caliper
    Front Brakes
    Single
    disc.
    Beringer
    six piston caliper
    Rear Suspension
    Penske shocks
    Front Suspension
    Kayaba fork
    Rear Brakes Diameter
    220 mm (8.7 inches)
    Front Brakes Diameter
    310 mm (12.2 inches)

    Available colors

    Yellow/black
