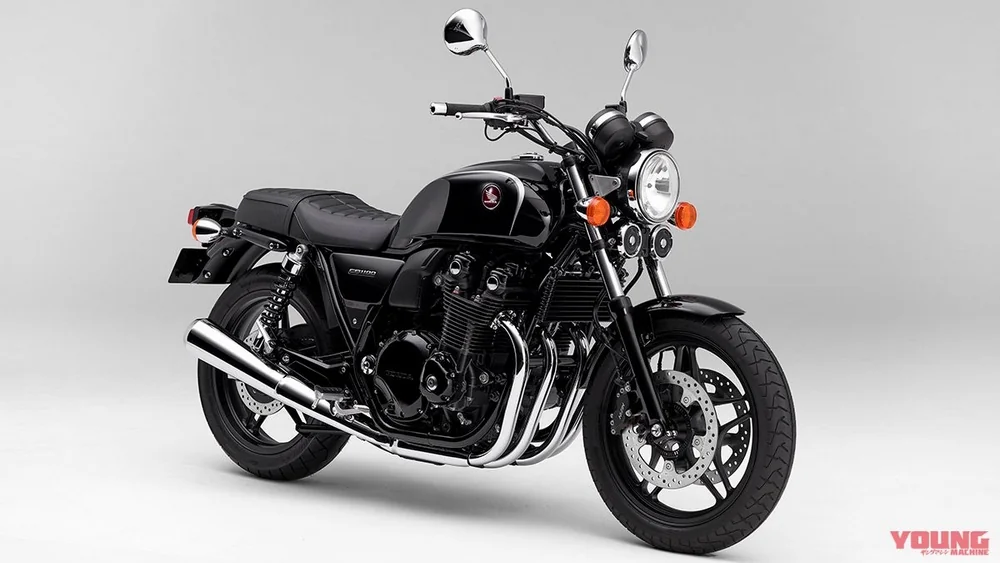

Honda CB1100 EX
2017Classic

Honda CB1100 EX

Key specifications

Engine
1140 cc
Power
89 HP
Torque
91 Nm
Fuel type
petrol
Fuel capacity
4.6 L
Transmission
6-speed
Seat height
31 mm
Front brakes
Double disc. Floating discs. Four-piston calipers. ABS.
Rear brakes
Single disc. Single-piston. ABS.

Overview

Introducing the 2017 Honda CB1100 EX, a motorcycle that elegantly marries classic aesthetics with modern performance. Positioned firmly in the classic category, the CB1100 EX is a homage to Honda's rich heritage of motorcycle manufacturing while seamlessly integrating contemporary engineering. With its robust design and retro-inspired flair, this model appeals to riders who seek both nostalgia and cutting-edge technology. The CB1100 EX stands out in a crowded market, offering an experience that is as much about the journey as it is about the destination. At the heart of the CB1100 EX is its impressive in-line four, four-stroke engine, boasting a displacement of 1140cc. Delivering a spirited 88.51 horsepower at 7500 RPM and a robust torque of 91 Nm at 5000 RPM, this bike provides exhilarating performance on both city streets and winding backroads. The 6-speed gearbox, combined with a multi-plate wet clutch, ensures smooth shifting and an engaging riding experience. Riders will appreciate the bike's fuel efficiency of 6.00 litres per 100 km, allowing for longer rides without frequent stops at the pump. The bike's oil and air cooling system keeps the engine at optimal temperatures, ensuring reliability during long journeys. The CB1100 EX doesn't just shine in performance; it also comes equipped with a host of features designed with the rider in mind. The double steel cradle frame provides a solid foundation for stability, while the 41mm conventional front fork and twin shocks at the rear, both with adjustable spring preload, ensure a comfortable ride over various terrains. Safety is paramount with ABS-equipped brakes—double discs at the front and a single disc at the rear—providing confident stopping power. Additionally, the bike’s aesthetic options, including eye-catching black, white, and red color schemes, allow riders to express their personality on the road. **

Pros

  • Classic Aesthetic: Timeless design that appeals to vintage motorcycle enthusiasts.
  • Strong Engine Performance: The powerful engine delivers impressive torque and horsepower for exhilarating rides.
  • Adjustable Suspension: Customizable suspension settings provide enhanced comfort for various riding conditions.

Cons

  • Weight: At 260 kg, the bike may feel heavy for some riders, especially during low-speed maneuvers.
  • Fuel Capacity: While decent, a 17.5-litre tank may require more frequent refueling on long-distance rides.
  • Limited Advanced Technology: Lacks some high-tech features found in modern sport and touring bikes, which may not appeal to tech-savvy riders.

Technical details

Source specification data

Make
Honda
Model
CB1100 EX
Category
Classic
Starter
Electric
Electrical
11.2Ah battery.
Instruments
Fuel gauge, instant fuel consumption, remaining range, clock, new gear position indicator
Color Options
Black, white, red
Power
88.51 HP (64.6 kW)) @ 7500 RPM
Clutch
Multi-plate wet clutch
Torque
91.00 Nm (9.3 kgf-m or 67.1 ft.lbs) @ 5000 RPM
Gearbox
6-speed
Ignition
Digital transistorized with electronic advance
Fuel System
Injection
.
M
-
I
electronic fuel injection
Bore X Stroke
73.5 x 67.2 mm (2.9 x 2.6 inches)
Compression
9.5:1
Displacement
1140.00 ccm (69.56 cubic inches)
Cooling System
Oil & air
Engine Details
In-line four, four-stroke
Fuel Consumption
6.00 litres/100 km (16.7 km/l or 39.20 mpg)
Greenhouse Gases
O2
g/km. (
O2
-
Carbon
dioxide emission)
Transmission Type Final Drive
Chain
Seat Height
795 mm (31.3 inches) If adjustable, lowest setting.
Oil Capacity
4.90 litres (0.32 quarts)
Fuel Capacity
17.50 litres (4.62 gallons)
Overall Width
834 mm (32.8 inches)
Overall Height
1,130 mm (44.5 inches)
Overall Length
2,195 mm (86.4 inches)
Ground Clearance
135 mm (5.3 inches)
Weight Incl Oil Gas Etc
260.0 kg (573.2 pounds)
Rake
27.0°
Trail
114 mm (4.5 inches)
Wheels
Wire spoked
Rear Tyre
140/70-18
Frame Type
Double steel cradle
Front Tyre
110/80-18
Rear Brakes
Single disc. Single-piston. ABS.
Front Brakes
Double
disc.
Floating
discs.
Four
-piston calipers.
S
.
Rear Suspension
Twin shocks with adjustable spring preload
Front Suspension
41mm conventional fork with adjustable spring preload
Rear Brakes Diameter
256 mm (10.1 inches)
Front Brakes Diameter
296 mm (11.7 inches)

Available colors

Blackwhitered
