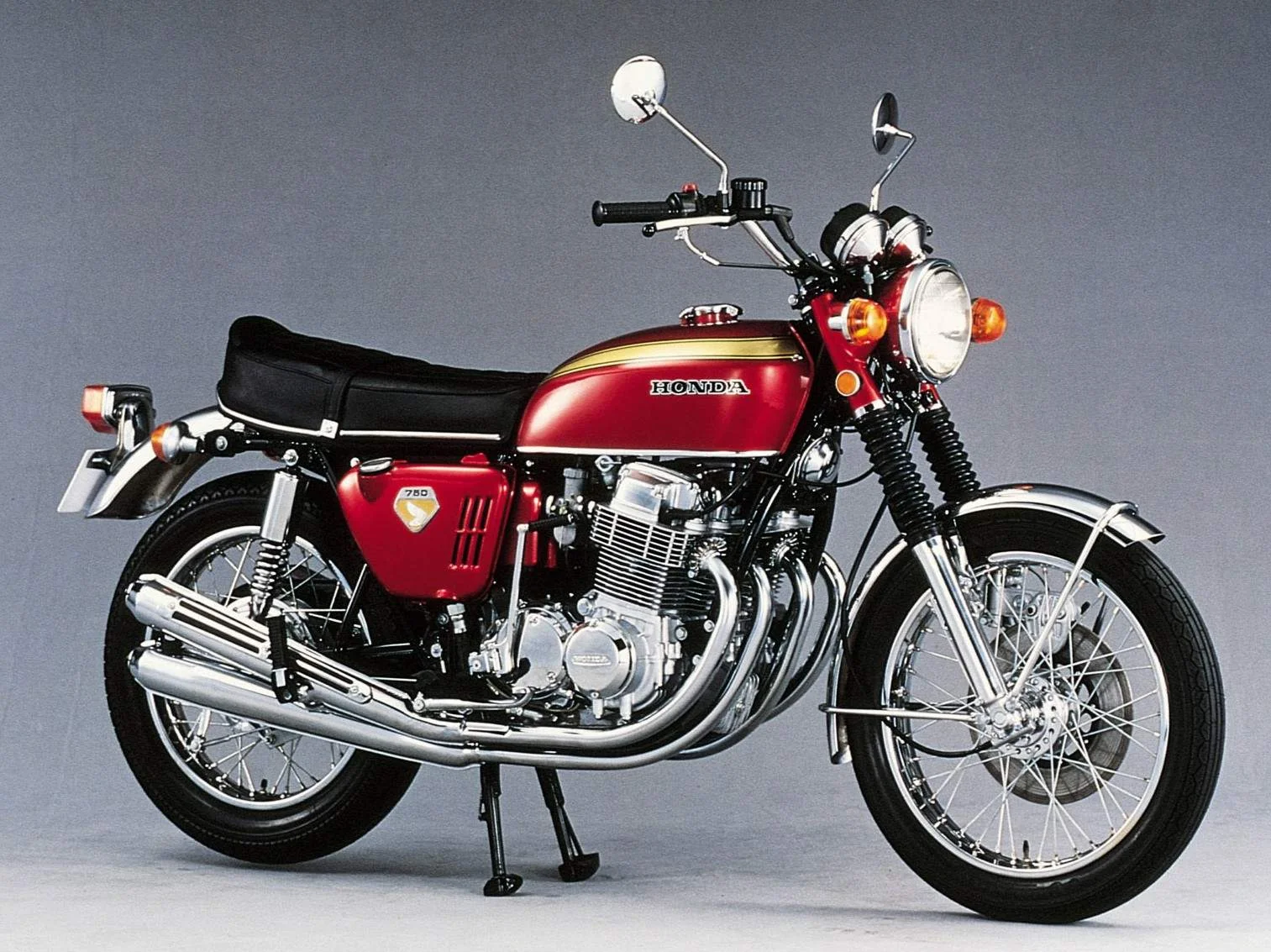

Honda CB750
1969Sportbike

Honda CB750

Key specifications

Engine
736 cc
Power
68 HP
Torque
60 Nm
Weight
218 kg
Fuel type
petrol
Fuel capacity
5.0 L
Transmission
5-speed
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)

Overview

### Introduction to the 1969 Honda CB750 The 1969 Honda CB750 is a landmark motorcycle that redefined the sport bike category and established Honda as a dominant force in the motorcycle industry. Often hailed as the first true "superbike," the CB750 married power, performance, and practicality in a way that captivated riders and critics alike upon its release. Positioned at the intersection of engineering innovation and rider-centric design, the CB750 offered an unprecedented combination of speed, reliability, and comfort, making it an instant classic among motorcycle enthusiasts. ### Engine Performance and Riding Characteristics At the heart of the CB750 lies a robust 736 cc in-line four engine, a pioneering design that would set the standard for future motorcycles. With an impressive output of 68 horsepower at 8,500 RPM and 60 Nm of torque at 7,000 RPM, the CB750 delivers exhilarating acceleration and top speeds that reach 124.9 mph (201 km/h). The 9.0:1 compression ratio and dual carburettors ensure smooth power delivery, allowing riders to experience a thrilling yet manageable ride. The five-speed gearbox, paired with a multi-plate wet clutch, offers seamless shifting, making it suitable for both spirited rides and long-distance touring. This combination of power and engineering precision has made the CB750 a favorite among those looking for a dynamic riding experience. ### Key Features and Technology The 1969 Honda CB750 is not just about raw power; it’s also laden with features that enhance its overall performance and rider comfort. The tubular steel duplex cradle frame provides excellent stability and handling, while the telescopic front suspension and swingarm rear suspension with coil-over shocks ensure a smooth ride over varying terrains. The single disc front brake, measuring 290 mm, offers reliable stopping power, complemented by a rear drum brake for balanced performance. Furthermore, the CB750’s dual starting system—both electric and kick—illustrates Honda's commitment to rider convenience. With a fuel capacity of 19 liters and a respectable fuel consumption rate of 6.86 liters per 100 km, this motorcycle is as practical as it is powerful, making it ideal for long journeys or daily commutes. ###

Pros

    Cons

    • Innovative Engine Design: The in-line four-cylinder engine provides a thrilling power band and smooth acceleration.
    • Exceptional Handling: The combination of a well-designed frame and advanced suspension offers excellent stability and comfort.
    • Versatile Use: With a spacious fuel tank and good fuel efficiency, the CB750 is perfect for both daily rides and long-distance touring.
    • Weight: At 218 kg (480.6 pounds), it is on the heavier side compared to modern sport bikes, which can affect agility.
    • Braking System: While the front disc brake was revolutionary at the time, modern riders may find the braking performance lacks the precision of contemporary systems.
    • Limited Technology: The absence of modern features such as ABS or advanced electronics may deter some riders looking for a more tech-savvy motorcycle.

    Technical details

    Source specification data

    Make
    Honda
    Model
    CB750
    Category
    Sport
    Starter
    Electric & kick
    Power
    68.00 HP (49.6 kW)) @ 8500 RPM
    Clutch
    Multi-plate, wet
    Torque
    60.00 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 7000 RPM
    Gearbox
    5-speed
    Top Speed
    201.0 km/h (124.9 mph)
    Fuel System
    Carburettor. Keihin
    Bore X Stroke
    61.0 x 63.0 mm (2.4 x 2.5 inches)
    Compression
    9.0:1
    Displacement
    736.00 ccm (44.91 cubic inches)
    Cooling System
    Air
    Engine Details
    In-line four, four-stroke
    Fuel Consumption
    6.86 litres/100 km (14.6 km/l or 34.29 mpg)
    Greenhouse Gases
    O2
    g/km. (
    O2
    -
    Carbon
    dioxide emission)
    Lubrication System
    Dry sump
    Valves Per Cylinder
    2
    Transmission Type Final Drive
    Chain
    Dry Weight
    218.0 kg (480.6 pounds)
    Seat Height
    790 mm (31.1 inches) If adjustable, lowest setting.
    Oil Capacity
    3.30 litres (0.22 quarts)
    Fuel Capacity
    19.00 litres (5.02 gallons)
    Overall Width
    890 mm (35.0 inches)
    Overall Height
    1,100 mm (43.3 inches)
    Overall Length
    2,200 mm (86.6 inches)
    Ground Clearance
    160 mm (6.3 inches)
    Power Weight Ratio
    0.3119 HP/kg
    Weight Incl Oil Gas Etc
    233.0 kg (513.7 pounds)
    Seat
    Dual seat
    Wheels
    Wirespoked
    Rear Tyre
    4.00-18
    Frame Type
    Tubular steal duplex cradle
    Front Tyre
    3.25-19
    Rear Brakes
    Expanding brake (drum brake)
    Front Brakes
    Single disc
    Rear Suspension
    Swingarm with coil-over shocks
    Front Suspension
    Telescopic
    Rear Brakes Diameter
    178 mm (7.0 inches)
    Front Brakes Diameter
    290 mm (11.4 inches)
