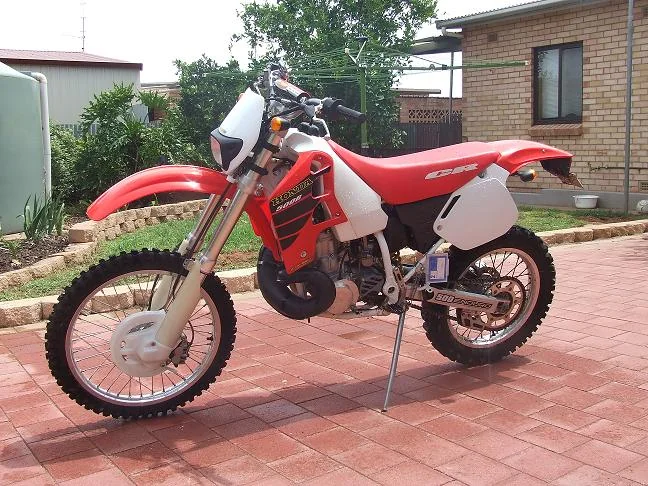

Honda CR 500 E
2002Off-road

Honda CR 500 E

Key specifications

Engine
491 cc
Weight
108 kg
Fuel type
petrol
Fuel capacity
2.4 L
Transmission
5-speed
Seat height
37 mm
Front brakes
Single disc. HYDRAULIC DISC WITH DUAL-PISTON CALIPER AND SINTERED METAL PADS

Overview

Introducing the 2002 Honda CR 500 E, a beast in the cross-motocross category that has earned its reputation among enthusiasts for its raw power and uncompromising performance. As one of the last of its kind in the two-stroke era, the CR 500 E is a legendary motorcycle that embodies the spirit of off-road racing. With its lightweight design and agile handling, this model was crafted for those who crave adrenaline and mastery over challenging terrains. Whether you’re tackling rugged trails or dominating the motocross circuit, the CR 500 E promises an exhilarating ride that few other bikes can match. At the heart of the CR 500 E lies a robust 491cc single-cylinder, two-stroke engine that delivers explosive power and torque, making it a true thrill to ride. The engine's performance is enhanced by a KEIHIN 38MM flat slide carburettor, ensuring optimal fuel delivery for rapid acceleration. Coupled with a 5-speed gearbox and a wet plate clutch, the power delivery is smooth and responsive, perfect for sharp turns and quick bursts of speed. With a fuel consumption of 10.0 liters per 100 km, riders can expect a balance between performance and efficiency, though the thirst for fuel is a small trade-off for the adrenaline rush this bike offers. The CR 500 E is equipped with a CrMo steel frame that provides incredible strength while keeping the overall weight down to just 108 kg (238.1 pounds). This lightweight construction, combined with a SHOWA 46mm leading axle USD fork and

Pros

  • Powerful Two-Stroke Engine: The 491cc engine delivers exceptional acceleration and torque, ideal for competitive riding.
  • Lightweight and Agile: Weighing just 108 kg, the CR 500 E offers optimal maneuverability and handling, making it easier to navigate challenging terrains.
  • Advanced Suspension and Braking: With adjustable SHOWA suspension and a robust braking system, riders can enjoy enhanced stability and control, even in demanding situations.

Cons

  • Fuel Consumption: While performance-focused, the bike has a relatively high fuel consumption rate, which may require more frequent refueling during long rides.
  • Seat Height: With a seat height of 937 mm (36.9 inches), it may be challenging for shorter riders to manage, limiting accessibility for some.
  • Rarity: As production has ceased and many models are dirt-only, finding well-maintained examples can be difficult, making it a true collector’s item.

Technical details

Source specification data

Make
Honda
Model
CR 500 E
Category
Cross-motocross
Comments
D
,
Y
.
E
.
Color Options
WHITE AND RED ONLY
Clutch
Wet plate
Gearbox
5-speed
Ignition
Capacitor Discharge (CDI)
Fuel System
Carburettor. KEIHIN 38MM FLAT SLIDE
Displacement
491.00 ccm (29.96 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, two-stroke
Exhaust System
STANDARD HONDA EXPANSION CHAMBER
Fuel Consumption
10.00 litres/100 km (10.0 km/l or 23.52 mpg)
Greenhouse Gases
O2
g/km. (
O2
-
Carbon
dioxide emission)
Transmission Type Final Drive
Chain
Dry Weight
108.0 kg (238.1 pounds)
Seat Height
937 mm (36.9 inches) If adjustable, lowest setting.
Fuel Capacity
9.00 litres (2.38 gallons)
Ground Clearance
328 mm (12.9 inches)
Rear Tyre
110/100-18
Frame Type
CrMo steel
Front Tyre
80/100-21
Front Brakes
Single
disc.
L
-
Rear Suspension
SHOWA PROLINK WITH ADJUSTABLE COMPRESSION/REBOUND DAMPENING
Front Suspension
A
46
N
/
Rear Wheel Travel
320 mm (12.6 inches)
Front Wheel Travel
310 mm (12.2 inches)
Rear Brakes Diameter
220 mm (8.7 inches)
Front Brakes Diameter
240 mm (9.4 inches)

Available colors

WHITE AND RED ONLY
