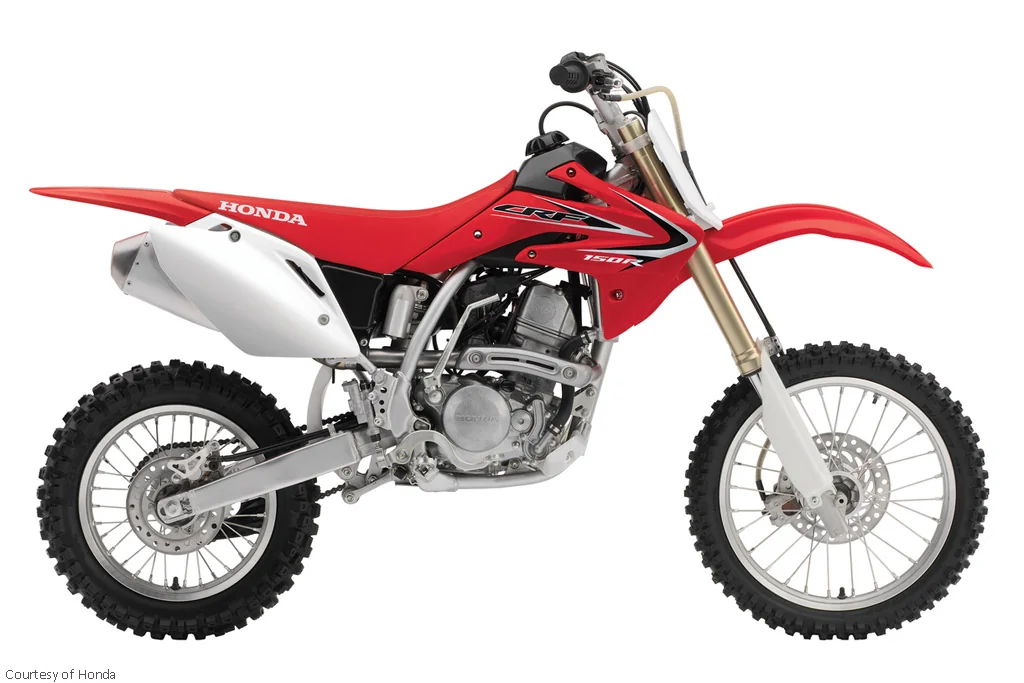

Honda CRF150RII
Key specifications
Overview
Introducing the 2014 Honda CRF150RII, a formidable contender in the cross-motocross category that caters to both young riders and those seeking a lightweight, agile machine with performance credentials. This bike is designed for serious off-road enthusiasts who demand precision, power, and agility from their ride. With Honda's long-standing reputation for reliability and innovation, the CRF150RII stands out with its competitive edge, making it a popular choice in motocross events and trail riding alike. At the heart of the CRF150RII is a robust single-cylinder, four-stroke engine with a displacement of 149.70 ccm. This powerhouse generates an impressive 24.50 horsepower at a high-revving 12,500 RPM, offering riders an exhilarating experience on the track. Its 14.40 Nm of torque ensures a strong pull when powering out of corners, allowing for confident acceleration and nimble maneuverability. The advanced Keihin® 32mm carburettor, equipped with a Throttle Position Sensor (TPS), optimizes fuel delivery for peak performance, while the liquid cooling system keeps the engine running efficiently, even during the most demanding rides. The bike's 5-speed transmission allows for seamless gear shifts, affording riders the versatility needed for varied terrains. The CRF150RII is built on a semi-double cradle steel frame, providing a sturdy yet lightweight foundation suitable for motocross applications. Its fully adjustable Showa® suspension system—featuring a 37mm leading-axle inverted fork at the front and a
Pros
- Performance-Oriented Engine: The 149.70 ccm engine delivers impressive power and torque for a thrilling ride.
- Adjustable Suspension: Fully adjustable Showa suspension allows riders to fine-tune their setup for optimal handling across various terrains.
- Lightweight Design: At just 84.4 kg, the CRF150RII is incredibly nimble, making it easy to manage and maneuver on the track.
Cons
- Limited Fuel Capacity: With a fuel tank capacity of only 4.30 litres, the CRF150RII may require frequent refueling on longer rides.
- Kick Start Only: The absence of an electric start may deter some riders who prefer the convenience of a button-start system.
- Not Ideal for Beginners: With its high performance and aggressive nature, this bike may be challenging for novice riders to handle confidently.
Technical details
Source specification data
- Make
- Honda
- Model
- CRF150RII
- Category
- Cross-motocross
- Starter
- Kick
- Color Options
- Red/white, black/red
- Power
- 24.50 HP (17.9 kW)) @ 12500 RPM
- Torque
- 14.40 Nm (1.5 kgf-m or 10.6 ft.lbs) @ 10000 RPM
- Gearbox
- 5-speed
- Ignition
- Electronic
- advance
- I
- ignition type digital
- Driveline
- #420 chain; 15T/50T
- Fuel System
- Carburettor
- .
- Keihin
- ® 32mm flat slide with
- Bore X Stroke
- 66.0 x 43.7 mm (2.6 x 1.7 inches)
- Compression
- 11.7:1
- Displacement
- 149.70 ccm (9.13 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Emission Details
- Consult owners manual for optional racing parts.
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Seat Height
- 866 mm (34.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 4.30 litres (1.14 gallons)
- Overall Width
- 770 mm (30.3 inches)
- Overall Height
- 1,171 mm (46.1 inches)
- Overall Length
- 1,900 mm (74.8 inches)
- Ground Clearance
- 336 mm (13.2 inches)
- Weight Incl Oil Gas Etc
- 84.4 kg (186.1 pounds)
- Rake
- 27.0°
- Trail
- 78 mm (3.1 inches)
- Wheels
- Aluminium rim/wire spoke
- Rear Tyre
- 90/100-16
- Frame Type
- Semi-double cradle, steel
- Front Tyre
- 70/100-19
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Pro
- -
- Link
- ® fully adjustable
- Showa
- single shock;
- Front Suspension
- 37mm fully adjustable leading-axle inverted Showa® cartridge fork
- Rear Wheel Travel
- 282 mm (11.1 inches)
- Front Wheel Travel
- 275 mm (10.8 inches)
- Rear Brakes Diameter
- 190 mm (7.5 inches)
- Front Brakes Diameter
- 220 mm (8.7 inches)
