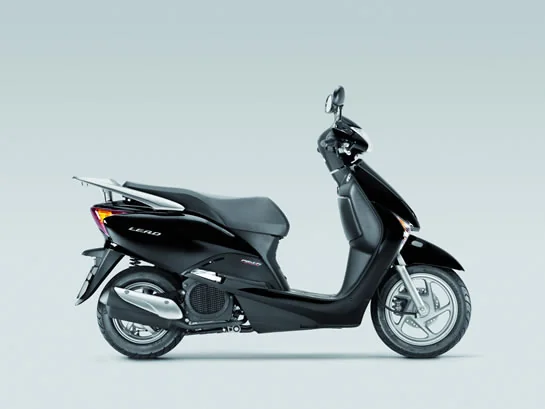

Honda Lead EX
2015Scooter

Honda Lead EX

Key specifications

Engine
107 cc
Power
9 HP
Torque
9 Nm
Weight
114 kg
Fuel type
petrol
Fuel capacity
1.7 L
Transmission
Automatic
Seat height
30 mm
Front brakes
Single disc. Combined dual-piston calliper, drilled rotor and resin mould pads
Rear brakes
Expanding brake (drum brake)

Overview

### Discover the 2015 Honda Lead EX: A Versatile Scooter for Urban Adventures The 2015 Honda Lead EX stands out in the crowded scooter market as a reliable and stylish choice, perfect for both daily commutes and weekend jaunts. With its sleek lines and compact form factor, this scooter embodies Honda's commitment to practicality without sacrificing performance. Designed for urban riding, the Lead EX caters to both novice and seasoned riders, combining ease of use with an efficient ride that can navigate through city traffic with ease. With a variety of color options including black, white, silver, dark red, and yellow, this scooter also allows riders to express their personal style. Under the seat of this capable scooter lies a spirited 107cc single-cylinder, four-stroke engine that delivers a peppy 9 horsepower at 7500 RPM. This power output is complemented by a torque rating of 9.30 Nm at 6250 RPM, ensuring that the Lead EX accelerates smoothly and effortlessly. The liquid-cooled engine is paired with an automatic gearbox, allowing riders to focus on the road ahead without the distraction of shifting gears. Whether you’re darting around town or cruising through the suburbs, the Lead EX's nimble handling and lightweight frame, weighing just 114 kg, offer an agile riding experience that's both fun and forgiving. Honda has packed the Lead EX with features designed to enhance comfort and safety for its riders. The underbone frame provides stability, while the front suspension features a 33mm telescopic fork, ensuring a smooth ride over uneven surfaces. The scooter boasts a combined braking system with a single disc brake in the front and a drum brake in the rear for effective stopping power. Riders will appreciate the electric starter for hassle-free ignition, and the generous 6.5-litre fuel tank means fewer stops at the pump. With a seat height of 760 mm, the Lead EX is accessible to a wide range of riders, making it a versatile option in the scooter segment. ####

Pros

    Cons

    • Lightweight and Nimble: Weighing only 114 kg, the Lead EX is easy to maneuver, making it ideal for urban environments.
    • Efficient Fuel Economy: With a small yet robust engine and a fuel capacity of 6.5 litres, riders can enjoy extended rides without frequent refueling.
    • Comfortable Riding Position: The adjustable seat height and well-designed ergonomics ensure comfort for both short trips and longer journeys.
    • Limited Power for High-Speed Travel: While great for city riding, the 9 HP engine may struggle on highways or steep inclines, limiting versatility.
    • Basic Storage Options: Although practical, the storage space under the seat may not accommodate larger items, which could be a drawback for some riders.
    • Drum Rear Brake: The rear drum brake, while adequate for city riding, may not provide the same level of performance as disc brakes, particularly in emergency situations.

    Technical details

    Source specification data

    Make
    Honda
    Model
    Lead EX
    Category
    Scooter
    Starter
    Electric
    Color Options
    Black, white, silver, dark red, yellow
    Power
    9.00 HP (6.6 kW)) @ 7500 RPM
    Torque
    9.30 Nm (0.9 kgf-m or 6.9 ft.lbs) @ 6250 RPM
    Gearbox
    Automatic
    Ignition
    Fully transistorised electronic
    Driveline
    V-matic
    Fuel System
    Injection. PGM-FI
    Bore X Stroke
    50.0 x 55.0 mm (2.0 x 2.2 inches)
    Compression
    11.0:1
    Displacement
    107.00 ccm (6.53 cubic inches)
    Cooling System
    Liquid
    Engine Details
    Single cylinder, four-stroke
    Valves Per Cylinder
    2
    Transmission Type Final Drive
    Belt
    Dry Weight
    114.0 kg (251.3 pounds)
    Seat Height
    760 mm (29.9 inches) If adjustable, lowest setting.
    Fuel Capacity
    6.50 litres (1.72 gallons)
    Overall Width
    680 mm (26.8 inches)
    Overall Height
    1,120 mm (44.1 inches)
    Overall Length
    1,832 mm (72.1 inches)
    Ground Clearance
    138 mm (5.4 inches)
    Power Weight Ratio
    0.0789 HP/kg
    Weight Incl Oil Gas Etc
    120.0 kg (264.6 pounds)
    Seat
    2-person seat
    Wheels
    U-section 5-spoke cast aluminium
    Rear Tyre
    100/90-10
    Frame Type
    Underbone
    Front Tyre
    90/90-12
    Rear Brakes
    Expanding brake (drum brake)
    Front Brakes
    Single
    disc.
    Combined
    dual-piston calliper, drilled rotor and resin mould pads
    Rear Suspension
    Single-damper unit swingarm, 70mm axle travel
    Front Suspension
    33mm telescopic fork, 80mm axle travel
    Rear Wheel Travel
    80 mm (3.1 inches)
    Front Wheel Travel
    70 mm (2.8 inches)
    Rear Brakes Diameter
    130 mm (5.1 inches)
    Front Brakes Diameter
    190 mm (7.5 inches)

    Available colors

    Blackwhitesilverdark redyellow
